8.8-DSI-TOUCH-A
- Mã sản phẩm: 8.8-DSI-TOUCH-A SKU 33641
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
2.700.000₫
- 8.8-DSI-TOUCH-A x1
- MIPI-DSI-Cable-12cm x1
- MX 1.25 2PIN to 2.54 3PIN cable x1
- FFC 22PIN cable ~200mm (opposite sides) x2
- MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
- Screws pack x1
1
2
3
4
5
6

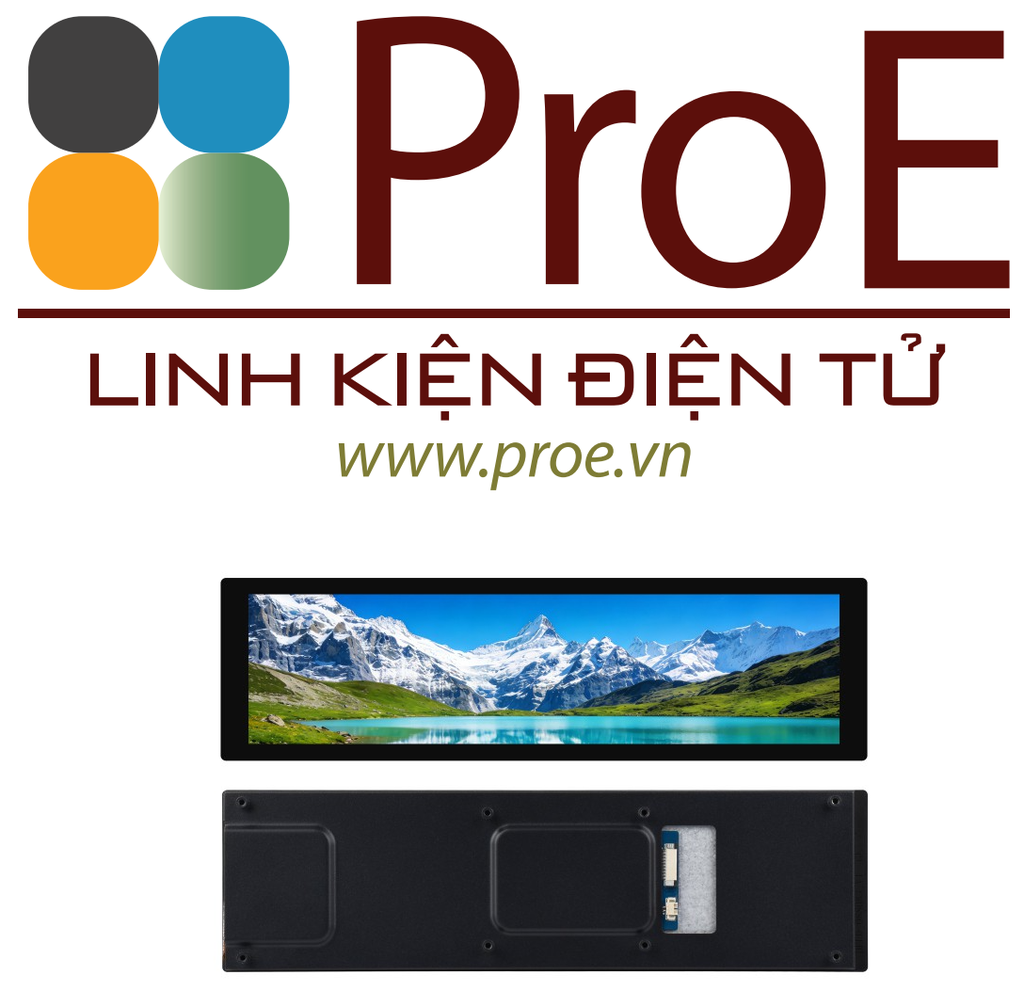

8.8inch DSI Capacitive Touch Display, IPS Panel, 480 × 1920 Resolution, 10-Point Touch, Supports Backlight Adjustment Via Software

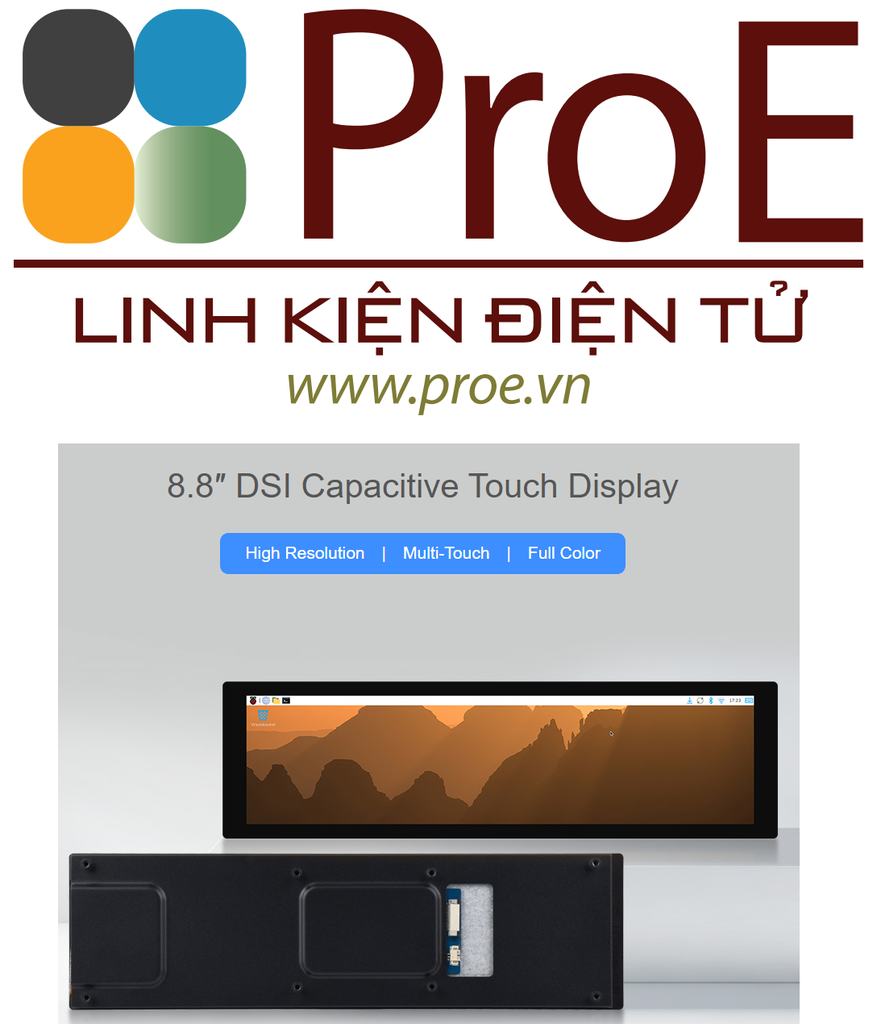

8.8″ DSI Capacitive Touch Display
High Resolution | Multi-touch | Full Color
- Size
8.8″ - Resolution
480 × 1920 - Display Interface
DSI - Display Panel
IPS Panel - Viewing Angle
178° - Touch Type
Capacitive - Touch Points
10-Point - Touch Interface
I2C - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding
The display orientation is portrait by default, 480 × 1920 (H×V)
Change the software config for landscape display
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch
RK3506
Supports Buildroot, Ubuntu, and other systems, 10-point touch
ESP32-P4
Supports LVGL GUI programs, 10-point touch
RK3576
Supports Buildroot, Debian, Ubuntu, Android, and other systems, 10-point touch
connection examples

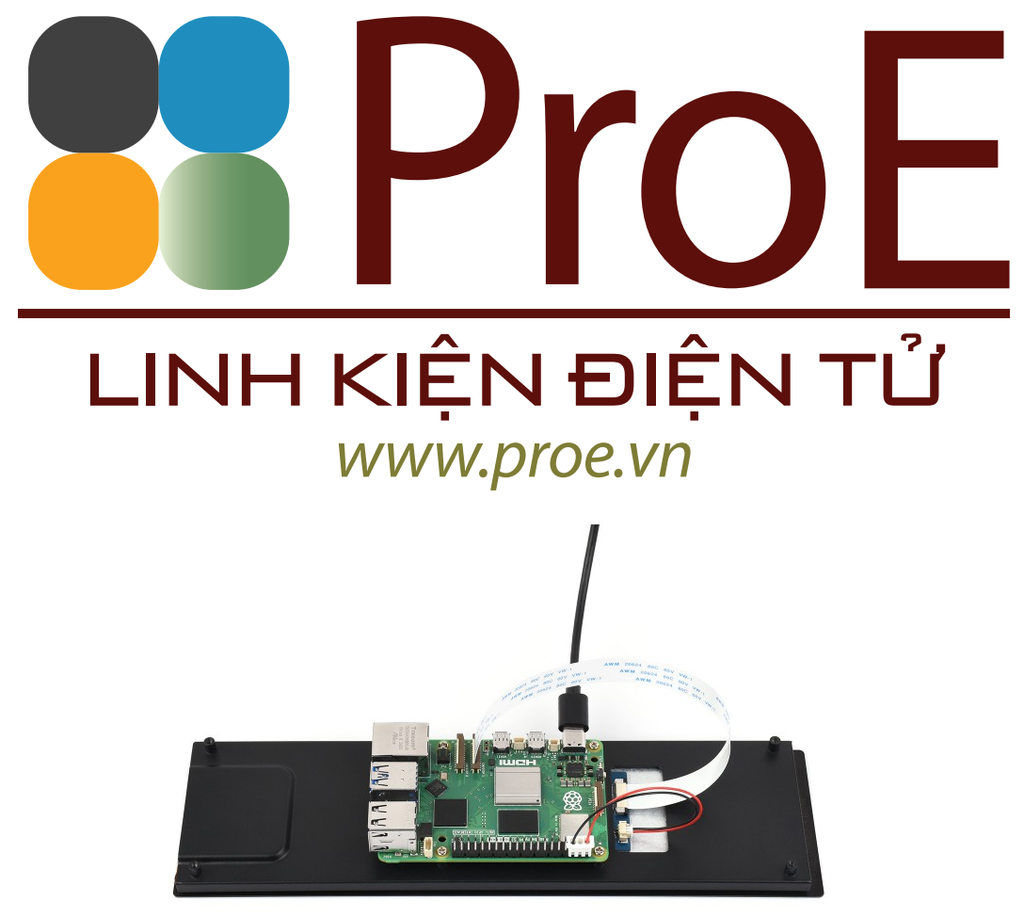

Working with Raspberry Pi 5
Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin
Working with Raspberry Pi 4B
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
Working with ESP32-P4-Module-DEV-KIT
Working with Luckfox Omni3576
Working with Luckfox Lyra
* for reference only, the above controller boards or hosts are NOT included
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Supports backlight adjustment via software
interface definition
outline dimensions
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
