8.2inch 1080x1080 LCD (US)
- Mã sản phẩm: 36126
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
7.900.000₫
Wiki: docs.waveshare.com/8.2inch_1080x1080_LCD
Weight: 0.672 kg
- 8.2inch 1080x1080 LCD x1
- HDMI flat cable ~1m x1
- USB Type-A male port to Type-C male port cable ~1m x1
- Micro HDMI Adapter x1
- HDMI Adapter x1
- HDMI to Micro HDMI Adapter x1
- USB Type-A to MX1.25 4PIN cable 120mm x1
- Capacitive touch pen x1
- 3PIN cable 70mm x1
- HDMI-Cable-120mm (2PCS) x1
- Cleaning cloth x1
- OPTIONS 5V 3A power supply ×1
- Screws pack x1

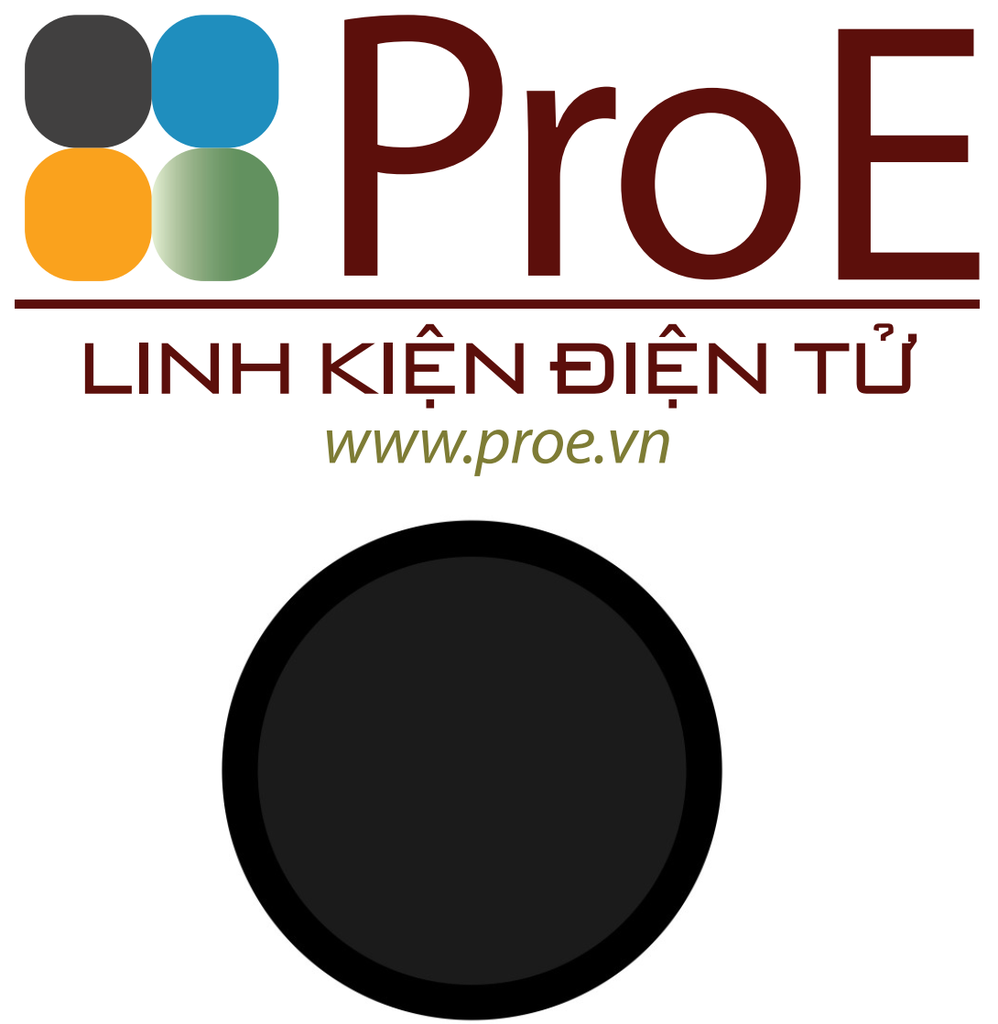

8.2inch HDMI Round Capacitive Touch Display, 1080 × 1080 Resolution, IPS Display Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch
8.2" Round Touch Display
High Resolution | Multi-Point Touch | Full Color
- Size
8.2" - Resolution
1080 × 1080 - Display Interface
HDMI - Display Panel
IPS - Viewing Angle
170°
- Touch Type
Capacitive - Touch Points
10-Point - Touch Port
USB Type-C - Touch Panel
Toughened Glass - Touch Panel Tech
In-Cell
- Touch Panel Tech
Optical Bonding - Brightness
450cd/㎡ - OSD Menu
Brightness Adjustment - Audio Output 1
3.5mm Jack - Audio Output 2
Speaker Header
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / Win10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports Ubuntu / Kali / Win10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series
Supports Ubuntu, single point touch, driver free
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples
Working with Raspberry Pi 5 / 4B
Working with Raspberry Pi 3B+
Working with Jeston series board
(You need to prepare additional DP-to-HDMI adapter or cable)
Working with PC
* for reference only, the above controller boards or hosts are NOT included
How to Install
Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example
Step 1:
Connect the cable ①, ②, and ③ to the corresponding positions as shown in the picture above.
Step 2:
Install the Raspberry Pi 5 on the PCB board of the LCD, connect the HDMI adapter to the cable ① (select HDMI adapter ④ or ⑤ according to your Raspberry Pi model) and then connect it to the Micro HDMI port of the Pi.
Step 3:
Connect the cable ② to the USB port of the Pi and connect the cable ③ to the GPIO 5V and GND pins as shown above.
Step 4:
Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.
* for reference only, the Raspberry Pi 5 is NOT included

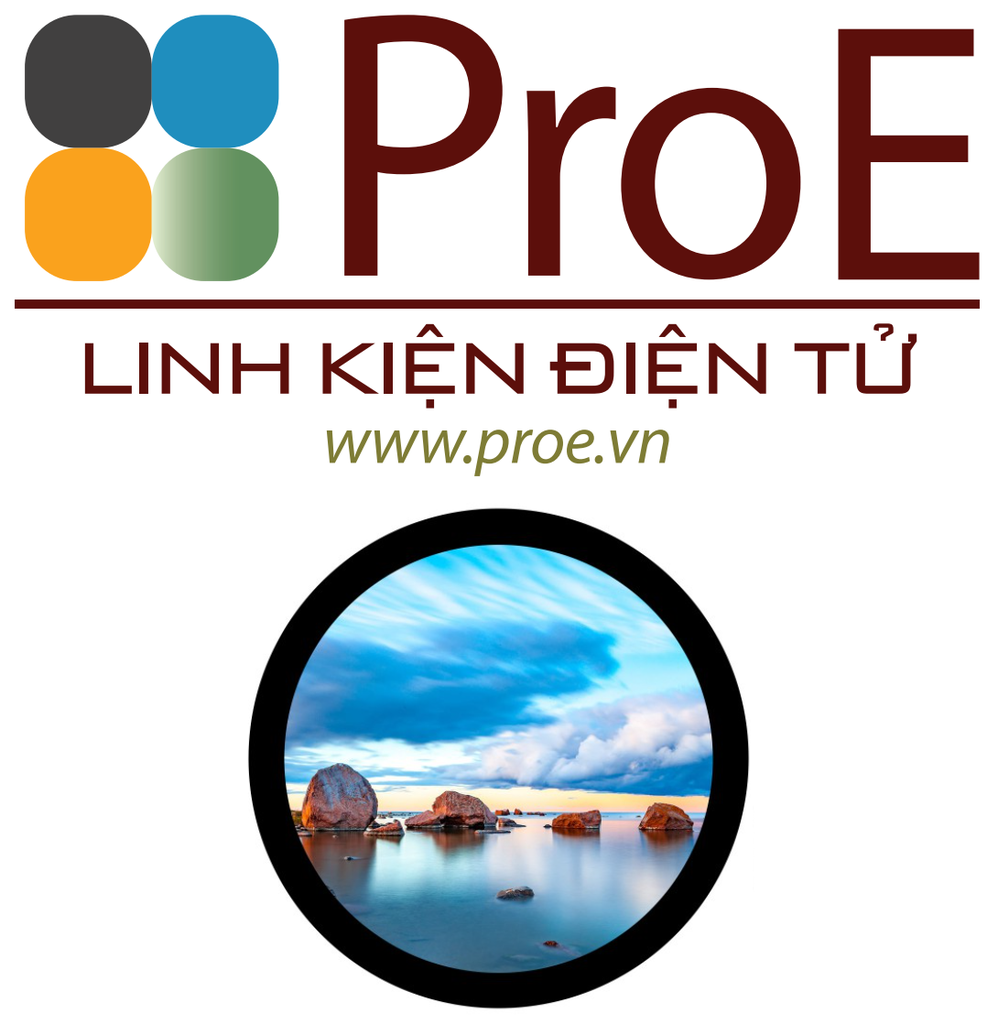

IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dust-resistant

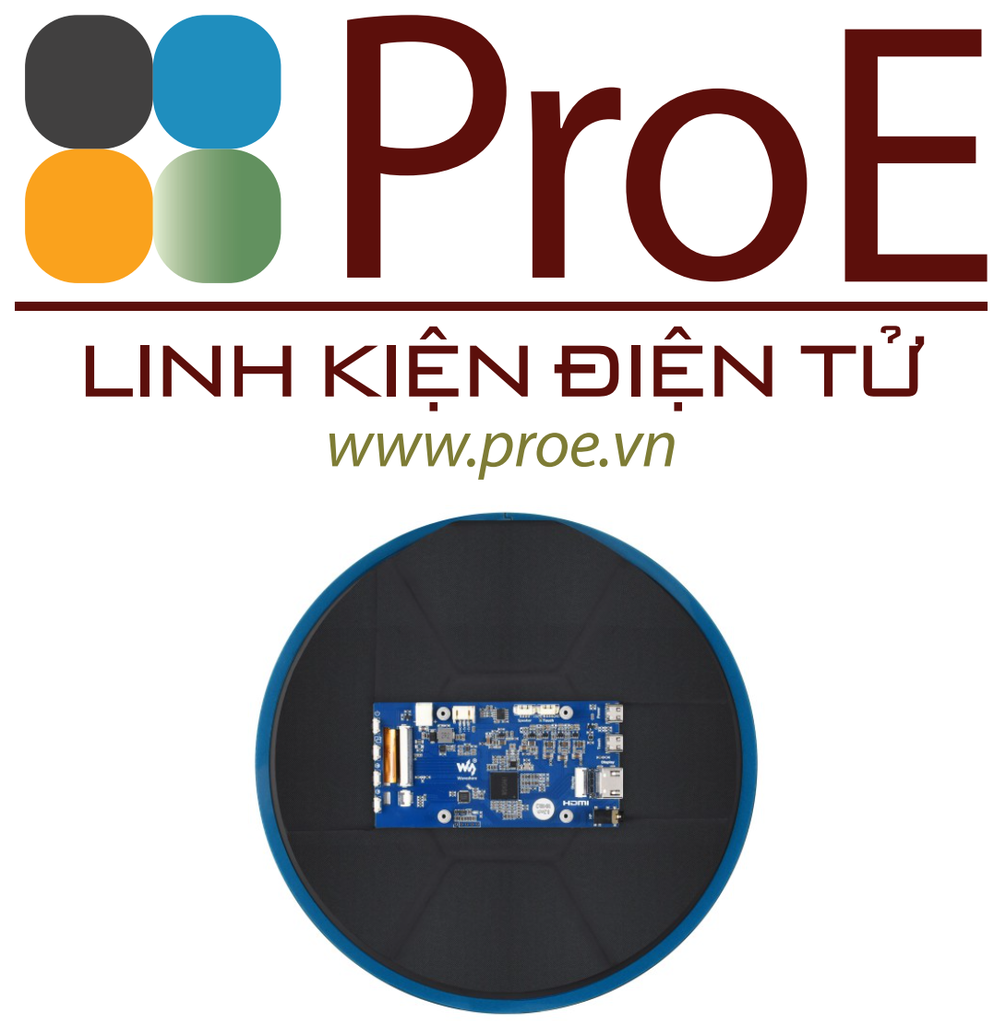

Interface Introduction
Application Examples
Smart Home
In-vehicle Devices
Consumer Electronics
Human-machine Interaction
Dimensions
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 15 years.
