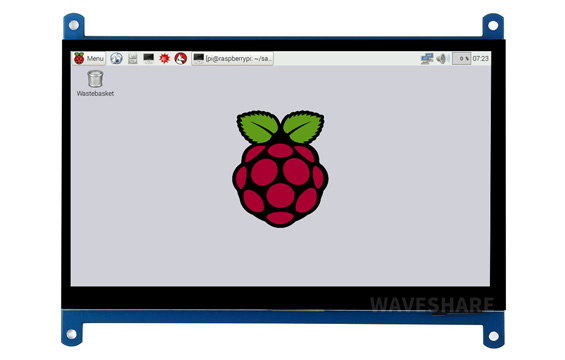

7inch HDMI LCD (C)

 Màn hình 7inch cảm ứng điện dung HDMI LCD (C), 1024×600, IPS, supports various systems



PACKAGE CONTENT

Weight: 0.395 kg

1. 7inch HDMI LCD (C) x 1
2. HDMI cable x 1
3. HDMI to Micro HDMI Adapter x 1
4. USB type A plug to micro B plug cable x 1
5. RPi screws pack (4pcs) x 1

1

2

3

4

7inch Capacitive Touch Screen LCD (C), 1024×600, HDMI, IPS, Low Power Consumption

7" HDMI Touch Display

• Size7"
• Resolution1024×600
• Display InterfaceHDMI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Points
• Touch PortUSB
• ConsumptionLow Power
• CertificationCE

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch, driver free

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With Mini PC

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system.

Demystifying Design Details

1. LCD FFC cable anti-interference design, more stable for industrial application
2. EMI and ESD protection, in compliance with CE certification
3. VCOM voltage adjustment for optimizing display effect
4. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
5. USB and power input solder pads, breakout USB interface, easy for connecting external power supply
6. Backlight adjustment solder pads for PWM signal input, so as to control the backlight brightness, increasing the lifetime of the display

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/7inch_HDMI_LCD_(C)
