70H-1024600-IPS-CT-B

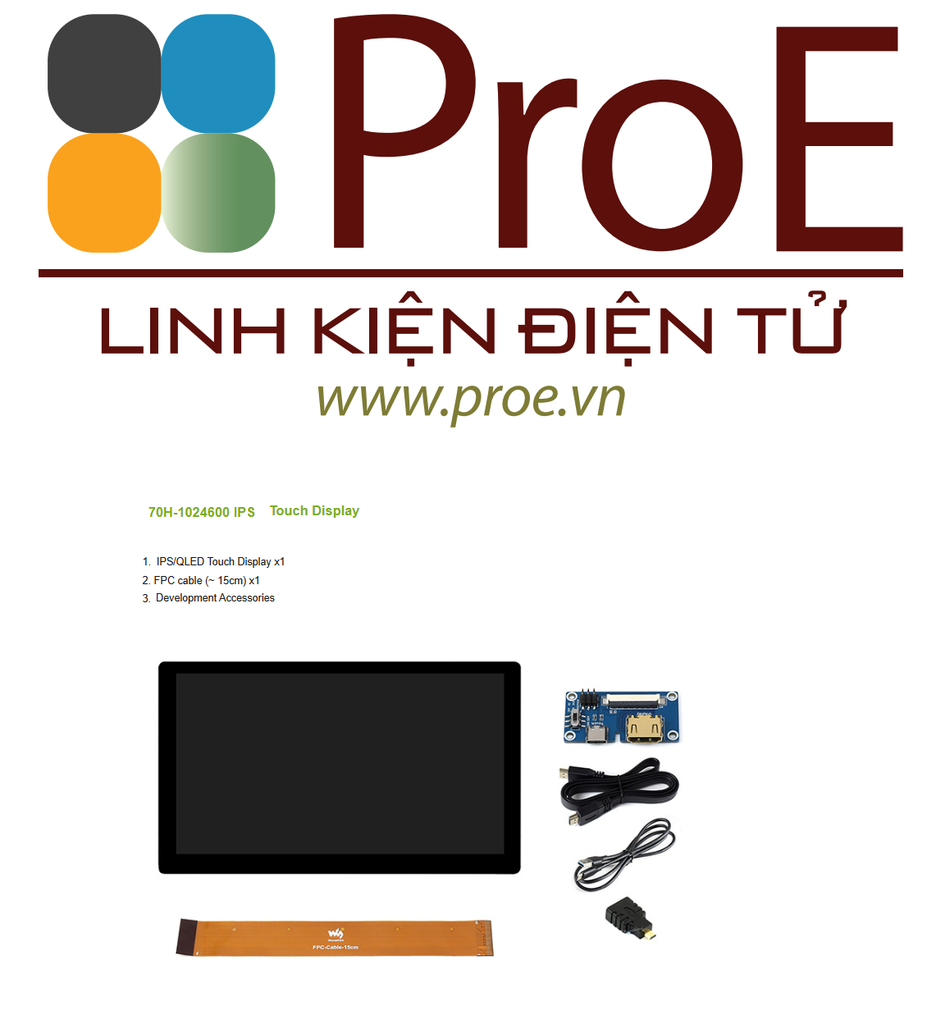

70H-1024600 IPS Touch Display

1. IPS Touch Display x1
2. FPC cable (~ 15cm) x1
3. Development Accessories

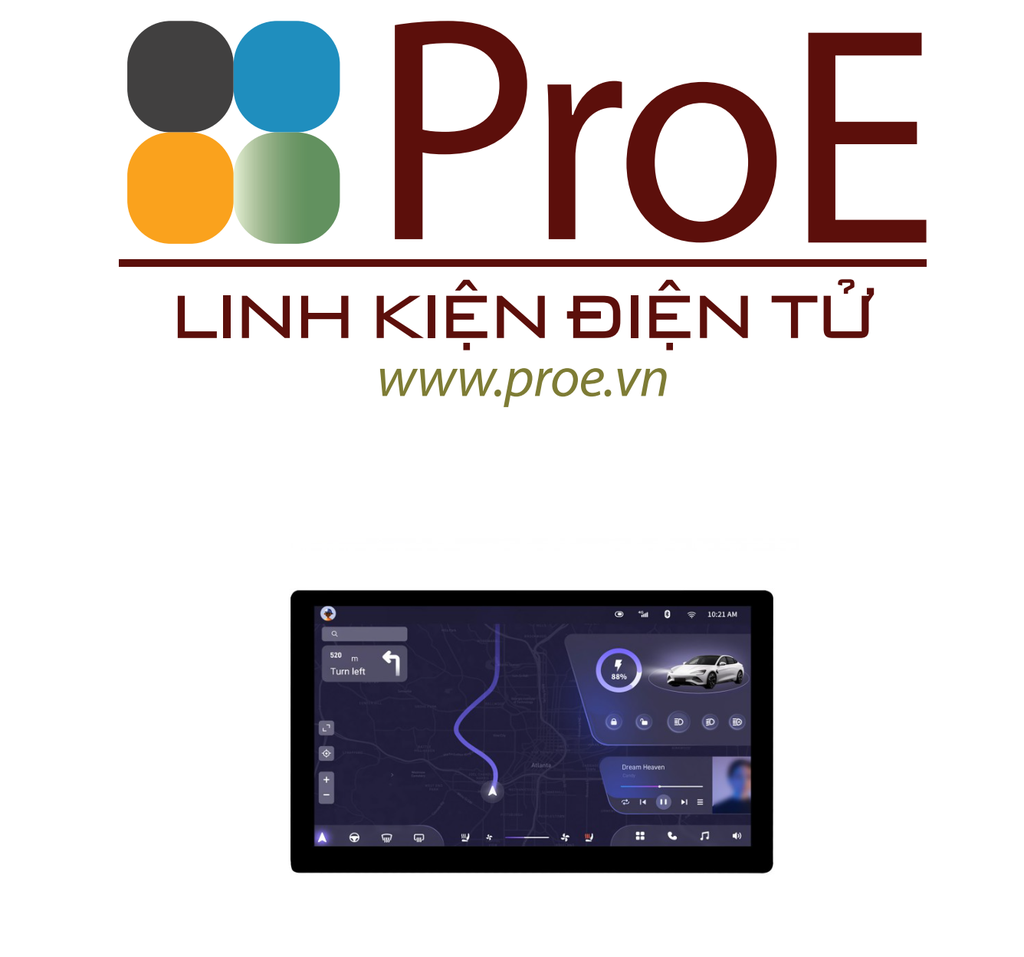

7inch IPS/QLED Integrated Display, 1024 × 600, Thin and Light Design

7-inch IPS/QLED Dispaly

Integrated Structure | Thin and Light Screen Design

• Size7″
• Resolution1024×600
• Display PanelIPS/QLED
• Viewing Angle170°
• Touch TypeCapacitive(optional)
• Touch Points5-Points(optional)
• ConsumptionLow Power
• Certification 1RoHS2.0
• Certification 2CE

Device & System Support

Support Windows / Linux / Android main board which has HDMI signal and USB touch signal

Used with development adapter, support the following devices:

All versions of Raspberry Pi
Jetson Series Boards
Windows PC

Comparing The Appearance

Optional Development Adapter

Integrated Structure Design

Provide secondary development resources to facilitate integrated design
Boost simple development for embedding engineering applications quickly

* for reference only, the CM4 board and CM4 base board are NOT included in the package, please refer to the package content for detailed part list.

development adapter connection

Thinner and more space saving

Different with the conventional connection method, integrate 40PIN multi-function interface for one-cable communication. Integrate the driver circuit into an FPC cable, the thinnest only needs 3mm thickness space

170° Wide Viewing Angle

QLED Quantum Dot Technology

Wider color gamut

color gamut of this QLED display is up to: NTSC 78%, sRGB 92%

* This function is only available on the QLED version

More pure chroma

chroma of QLED increases 58.3%, makes the color more pure, more vivid

* This function is only available on the QLED version

Longer lifetime

due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation

* This function is only available on the QLED version

5-Point Capacitive Touch

Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation. Adapting touch function with USB signal, support 5-point touch

* This function is only available on the Touch Display version

Connection Example

For the first use, it is recommended to use development adapter for connection

* for reference, Raspberry Pi board is NOT included.

Interface Introduction

Application Scenarios

New energy, electronic sentinel, human-machine interface, smart home
IoT, Industrial applications, consumer electronics

Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/70H-1024600
