7-DSI-TOUCH-A

Wiki: www.waveshare.com/wiki/7-DSI-TOUCH-A

Weight: 0.021 kg

1. 7-DSI-TOUCH-A x1
2. MIPI-DSI-Cable-12cm x1
3. MX 1.25 2PIN to 2.54 3PIN cable x1
4. FFC 22PIN cable ~200mm (opposite sides) x2
5. Screws pack x1

1

2

3

4

7inch DSI Capacitive Touch Display, 720×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch, Anti-Fingerprint Process

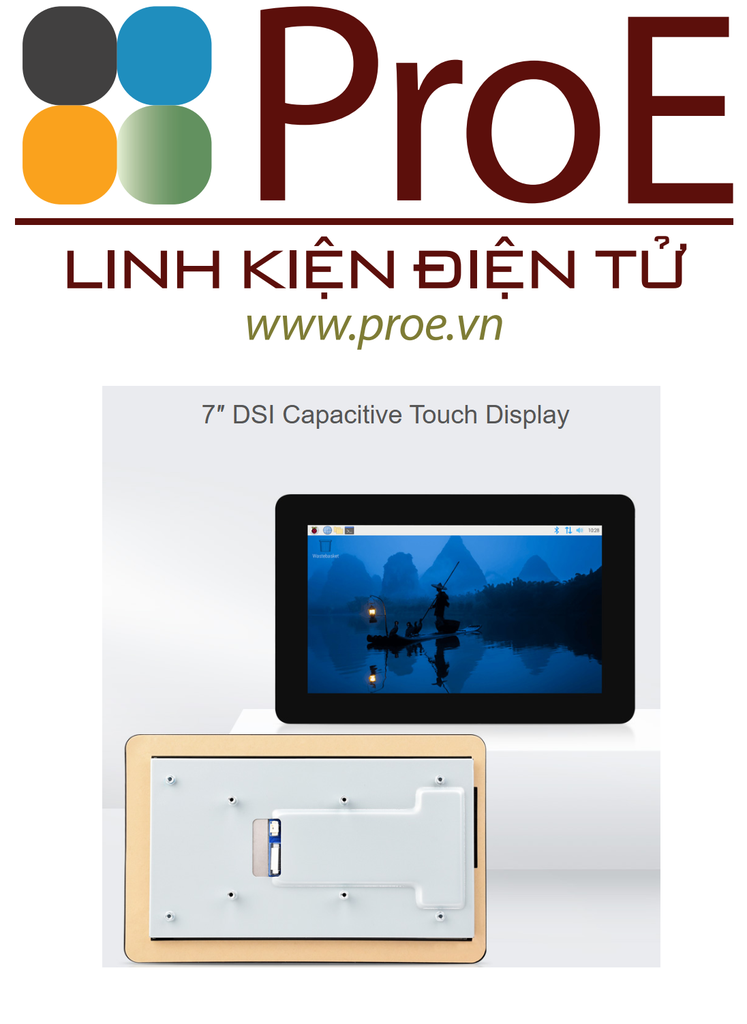

7″ DSI Capacitive Touch Display

• Size7″
• Resolution720×1280
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• Panel CoatingAF
• Touch InterfaceI2C
• Brightness450cd/㎡
• EnclosureFull Metal Back Panel

The display orientation is portrait by default, with 720×1280 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch

ESP32-P4

Supports LVGL GUI programs, up to 10-point touch

RK3506

Supports Buildroot / Ubuntu, etc. 10-point touch

RK3576

Supports Buildroot / Debian / Ubuntu / Android, etc. 10-point touch

connection examples

Working with Raspberry Pi 5

Please connect the FPC cable as shown above, and power the LCD through the GPIO 5V pin

Working with Raspberry Pi 4B

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with ESP32-P4-NANO

Working with Luckfox Lyra

Working with Luckfox Omni3576

* for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical bonding, provides clear image, dustproof
4. Adopts anti-fingerprint panel coating, easy to clean

Supports backlight adjustment via software

Thinner and more space-saving

Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 9.3mm

interface definition

outline dimensions
