7.9inch Capacitive Touch Display for Raspberry Pi, 400×1280, IPS, DSI Interface

PACKAGE CONTENT

Weight: 0.296 kg

1. 7.9inch DSI LCD x1
2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
3. Screws pack x1

1

2

3

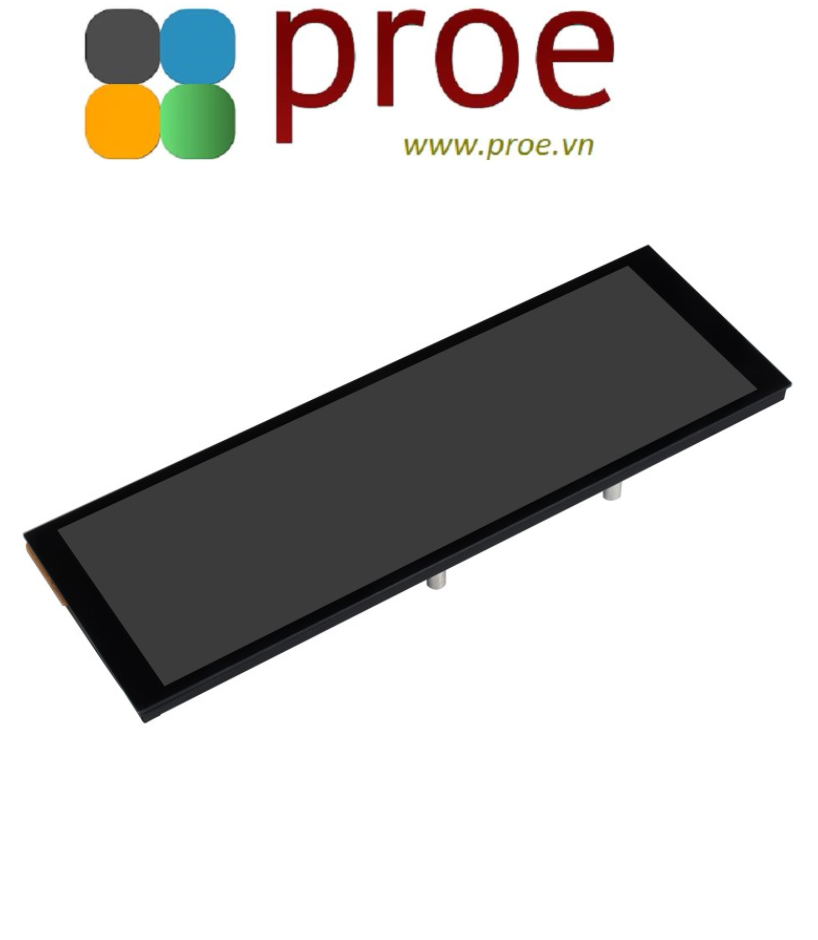

7.9inch Capacitive Touch Display For Raspberry Pi, 400×1280, IPS, DSI Interface

7.9″ Touch Display

• Size7.9″
•
• Resolution480×1280
•
• Display PortDSI
•
• Display PanelIPS
•
• Viewing Angle170°
• Touch TypeCapacitive
•
• Touch Points5-Points
•
• Touch PortI2C
•
• Touch PanelToughened Glass

The display orientation is portrait by default, 480×1280 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-points touch, driver required

Supports Pi 4B/3B+/3A+, CM3/3+/4*

* CM3/3+/4 requires extra adapter board

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

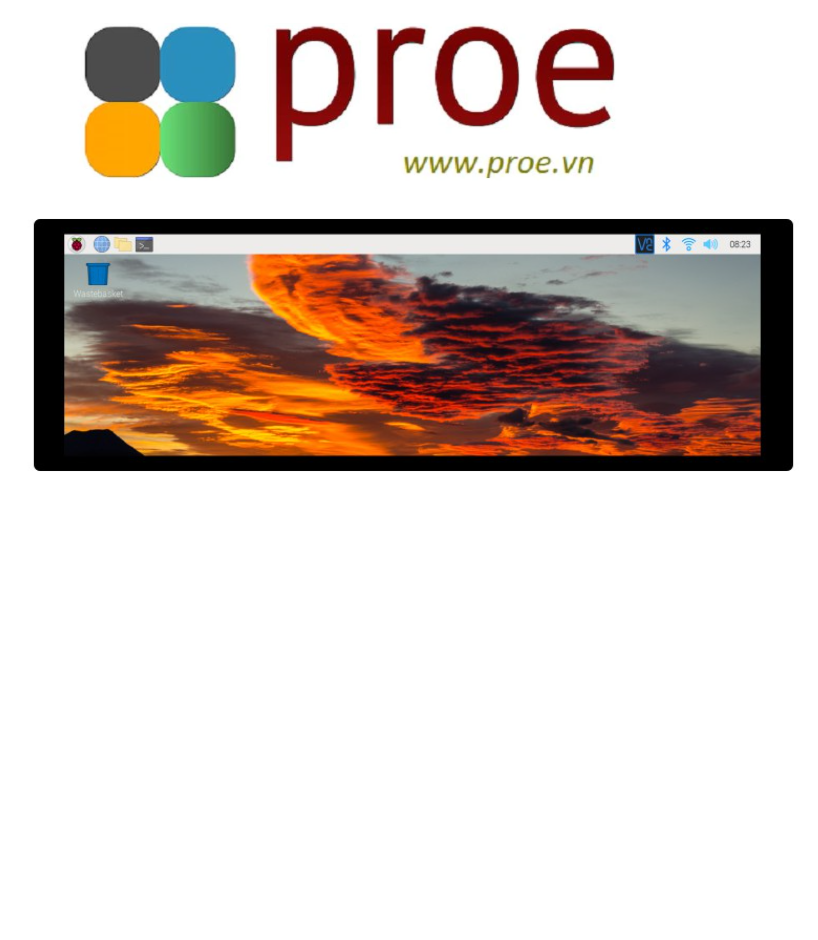

Display

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Adjustable Brightness Via Software

Design Features

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/7.9inch_DSI_LCD
