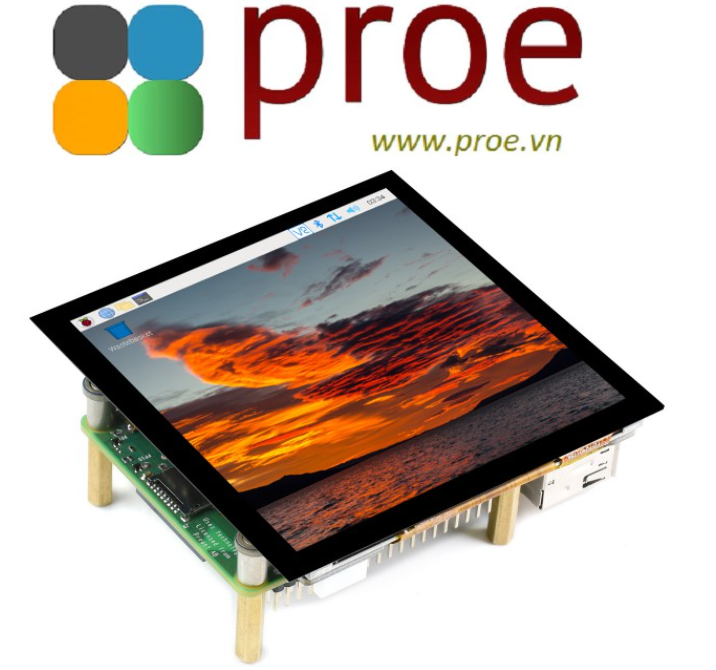

4inch HDMI Capacitive Touch IPS LCD Display (C), 720×720, Fully Laminated Screen

PACKAGE CONTENT

Weight: 0.192 kg

1. 4inch HDMI LCD (C) x1
2. HDMI Adapter (C) x1
3. HDMI Adapter (B) x1
4. HDMI cable x1
5. USB-A to USB-C cable x1
6. Screws pack x1

1

2

3

4

5

6

4inch HDMI Capacitive Touch IPS LCD Display (C), 720×720, Fully Laminated Screen

4″ HDMI Touch Display

• Size4″
• Resolution720×720
• Display PortHDMI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Points
• Touch Port 1USB-C
• Touch Port 2I2C
• Touch PanelToughened Glass
• Touch Panel TechFully Laminated
• OSD MenuBrightness/Contrast
• Audio Output 13.5mm Jack
• Audio Output 24PIN Header

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie
Driver free for USB-C touch
Config file is required for I2C touch

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7

for Jetson Nano and PC, only USB-C touch is available

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Jetson Nano AI Computer

Working With Mini PC

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) fully laminated screen, better display experience, dust-proof.

Design Features

Appearance And Dimensions

Resources & Services

Wiki: 4inch_HDMI_LCD_(C)
