4.3inch Capacitive Touch LCD, 800x480
- Mã sản phẩm: 4.3inch Capacitive Touch LCD
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
750.000₫
PACKAGE CONTENT
Weight: 0.105 kg

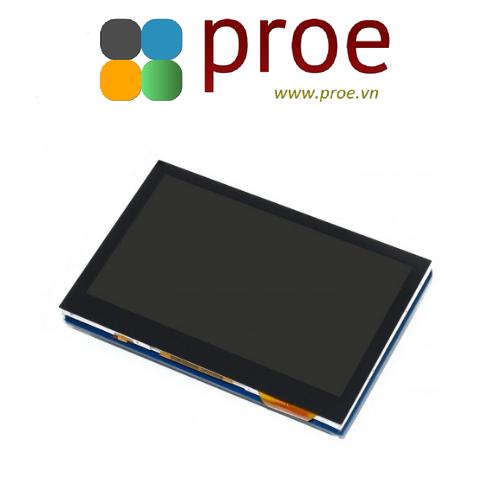

- 4.3inch Capacitive Touch LCD x1
- 40-pin FFC (opposite side contact) x1
- Screws pack (4pcs) x1
1
2
3
DESCRIPTION
Overview
This is a multicolor graphic LCD display, 4.3inch diagonal, 800x480 pixels.
It is able to display 16,777,216 colors via the 24-bit RGB interface, supports up to 5-points capacitive touch control via I2C interface.
Features
- 4.3inch capacitive touch display, 800x480 resolution
- Capacitive touch panel on the I2C bus, 5-points touch control, with touch interrupt
- 24-bit RGB display interface, 16,777,216 colors, fast refreshing

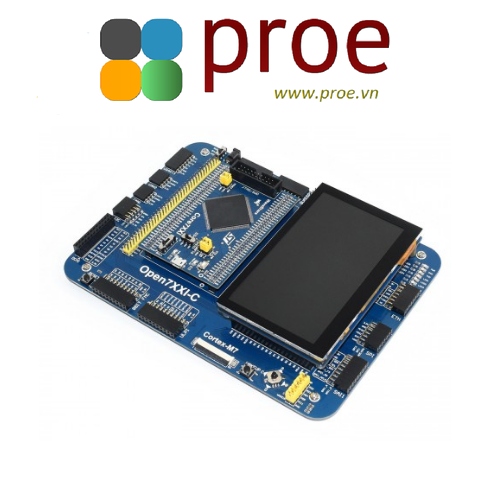

- Comes with development resources and manual (examples for STM32F4 / STM32F7)
Key Parameters
| LCD TYPE | IPS |
|---|---|
| LCD INTERFACE | 24-bit RGB |
| TOUCH SCREEN INTERFACE | I2C |
| DISPLAY COLORS | 16,777,216 |
| TOUCH CONTROLLER | GT911 |
| DISPLAY SIZE (MM) | 95.04 (W) × 53.86 (H) |
| DOT PITCH (MM) | 0.1188 (W) × 0.1122 (H) |
| BACKLIGHT | LED |
| RESOLUTION | 800 × 480 (Pixel) |
| POWER SUPPLY VOLTAGE | 5V |
| LOGIC LEVEL | 3.3V |
Interface Definition
| SYMBOL | DESCRIPTION | TYPE | FUNCTION |
|---|---|---|---|
| 5V | Power supply | Power | 5V |
| GND | Ground | GND | |
| 3.3V | Power supply | 3.3V | |
| R0~R7 | Data line | Input | Red data |
| G0~G7 | Data line | Input | Green data |
| B0~B7 | Data line | Input | Blue data |
| CLK | LCD clock | Input | LCD clock signal |
| DISP | Backlight control enable | Input | Enable/Disable backlight control |
| HSYNC | Horizontal synchronization | Input | Horizontal synchronous signal input |
| VSYNC | Vertical synchronization | Input | Vertical synchronous signal input |
| DE | Control mode selection | Input | DE=0:SYNC mode DE=1:DE mode |
| PWM | Backlight brightness adjustment | Input | PWM signal for adjusting backlight |
| GND | Ground | Power | GND |
| SDA | I2C data | Output/Input | I2C data pin, read/write data |
| SCL | I2C clock | Input | I2C clock pin |
| RST | Reset | Input | Reset the TP controller |
| IRQ | Interrupt | Output | External touch interrupt |
