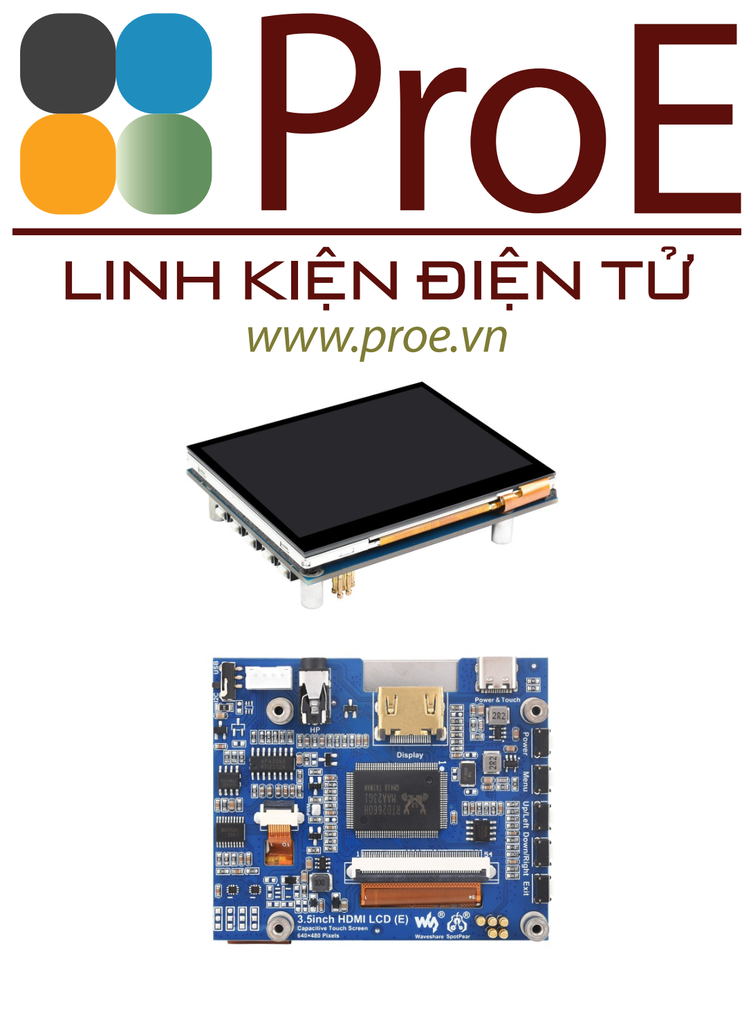

3.5inch HDMI LCD (E)

Wiki: 3.5inch_HDMI_LCD_(E)

Weight: 0.195 kg

1. 3.5inch HDMI LCD (E) x1
2. HDMI Adapter (C) x1
3. HDMI Adapter (B) x1
4. HDMI cable x1
5. USB-A to USB-C cable x1
6. Screws pack x1

1

2

3

4

5

6

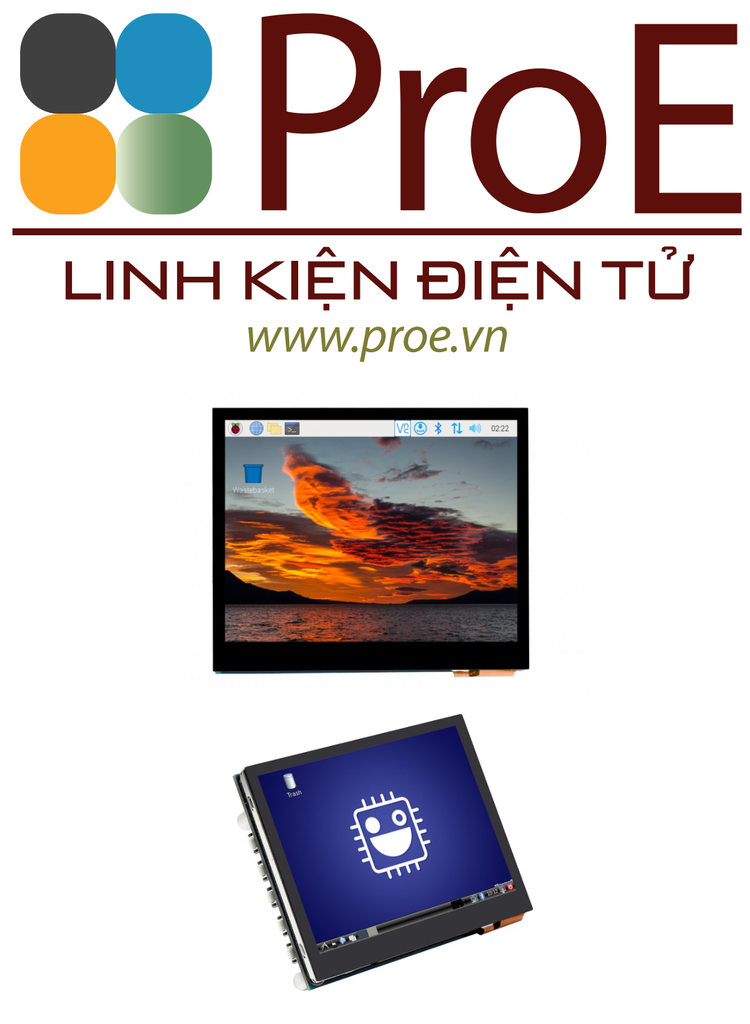

3.5″ HDMI Touch Display

• Size3.5″
• Resolution640×480
• Display InterfaceHDMI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Points
• Touch Port 1USB-C
• Touch Port 2I2C
• Touch PanelToughened Glass
• OSD MenuBrightness/Contrast
• Audio Output 13.5mm Jack
• Audio Output 24PIN Header

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie
Driver free for USB-C touch
Config file is required for I2C touch

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu

Tinker Board 2

Supports Android / Debian

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7

for three hosts above, only USB-C touch is available

Connection Examples

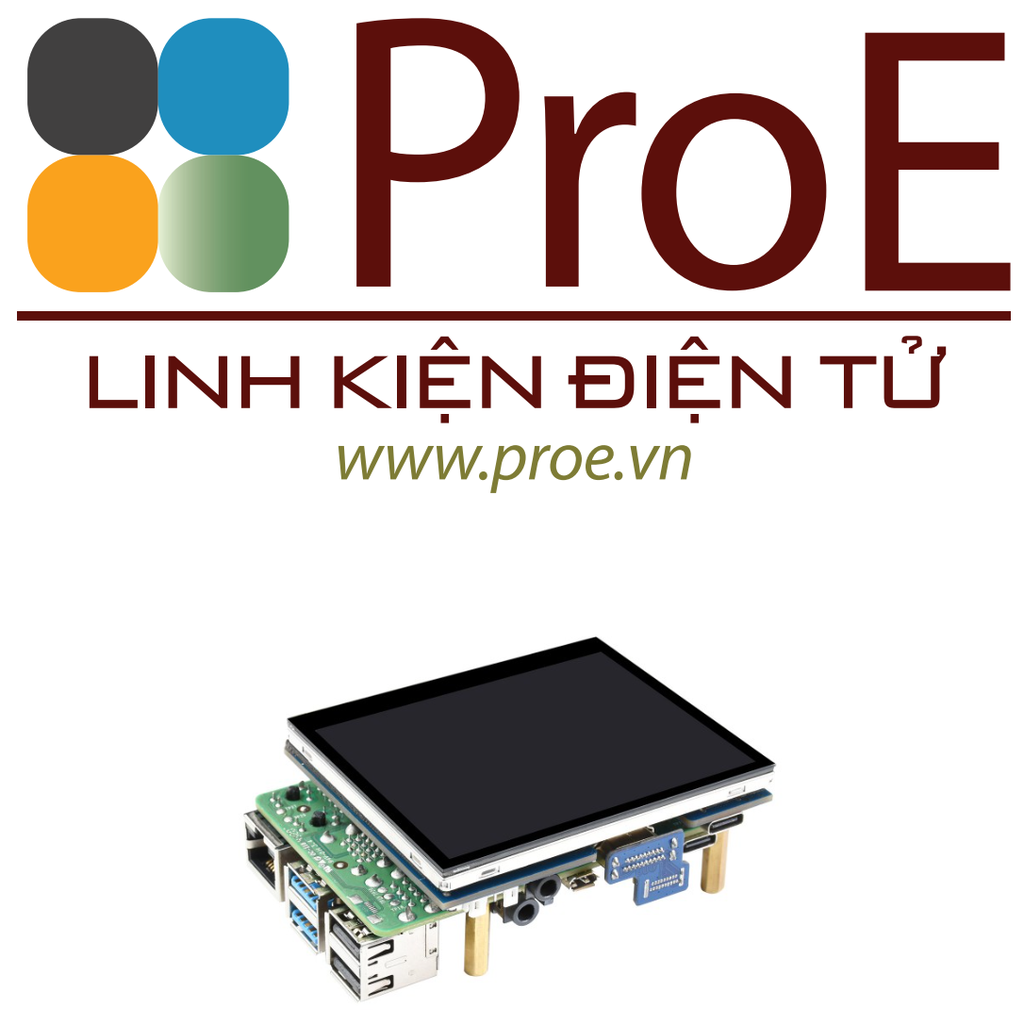

Working with Raspberry Pi 4

Working with Raspberry Pi 3B+

Working with Jetson Nano AI computer

Working with Tinker Board 2

Working with mini PC

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Design features

Appearance and Dimensions
