2inch Capacitive Touch LCD
- Mã sản phẩm: 2inch Capacitive Touch LCD
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
590.000₫
- Package Content
-
Weight: 0.042 kg
- 2inch Capacitive Touch LCD x1
- GH1.25 15Pin cable x1
1
2

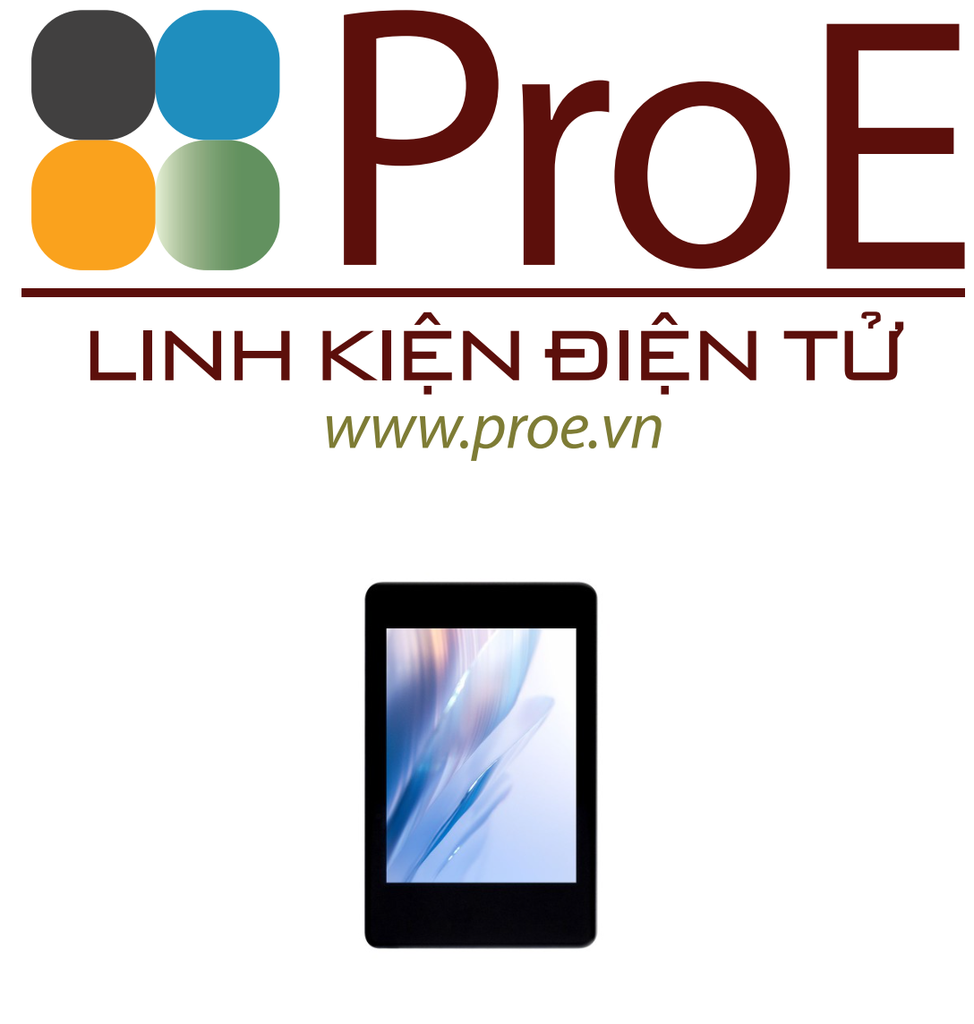

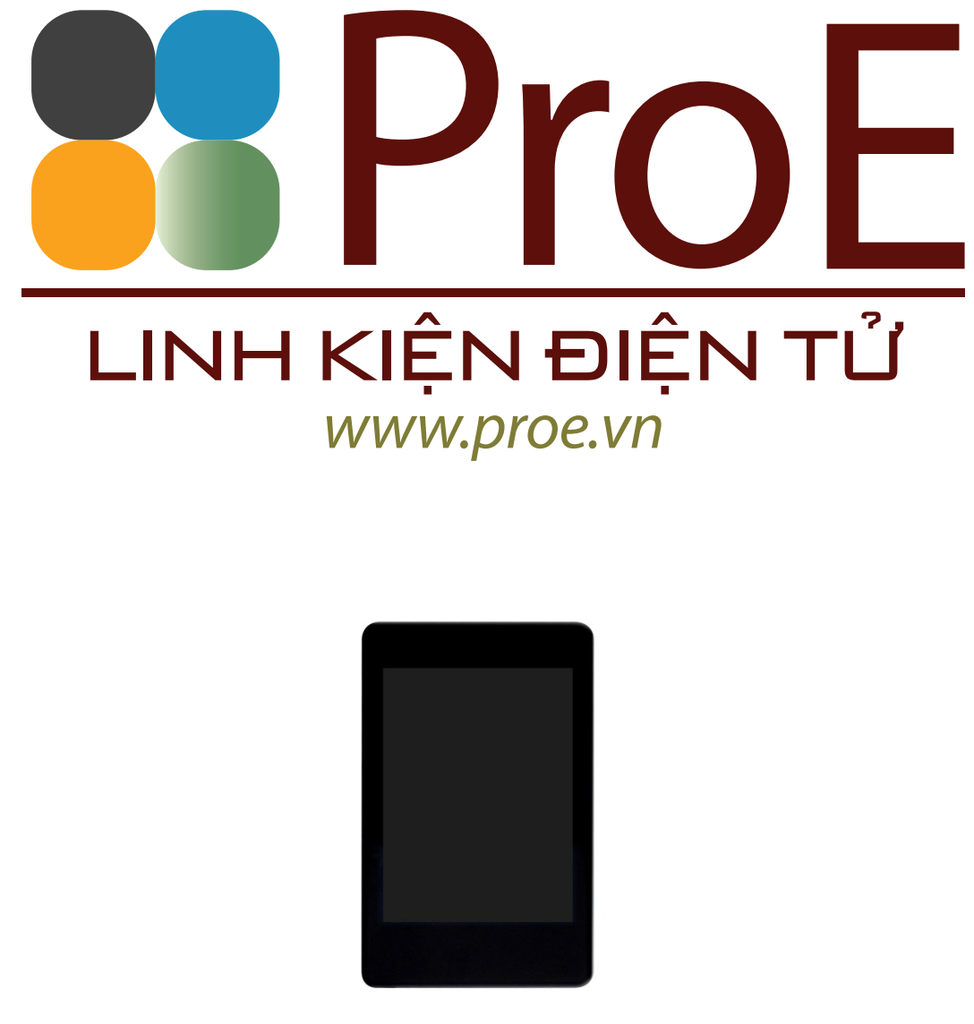

2inch Capacitive Touch Display Module, Embedded with ST7789T3 Display Driver and CST816D Capacitive Touch Controller, IPS Display, 262K Colors, 240×320 Resolution, Faster Response and More Durable
2inch Capacitive Touch LCD Module
Embedded ST7789T3 driver and CST816D capacitive touch control chip
Comes with examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino
- Size
2" - Resolution
240×320 - Display Color
262K - Display Panel
IPS - Display Driver
ST7789T3 - Display Interface
SPI - Touch Driver
CST816D - Touch Interface
I2C
Features at a glance
- 240×320 resolution, 262K colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime
- Embedded with ST7789T3 driver chip and CST816D capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins

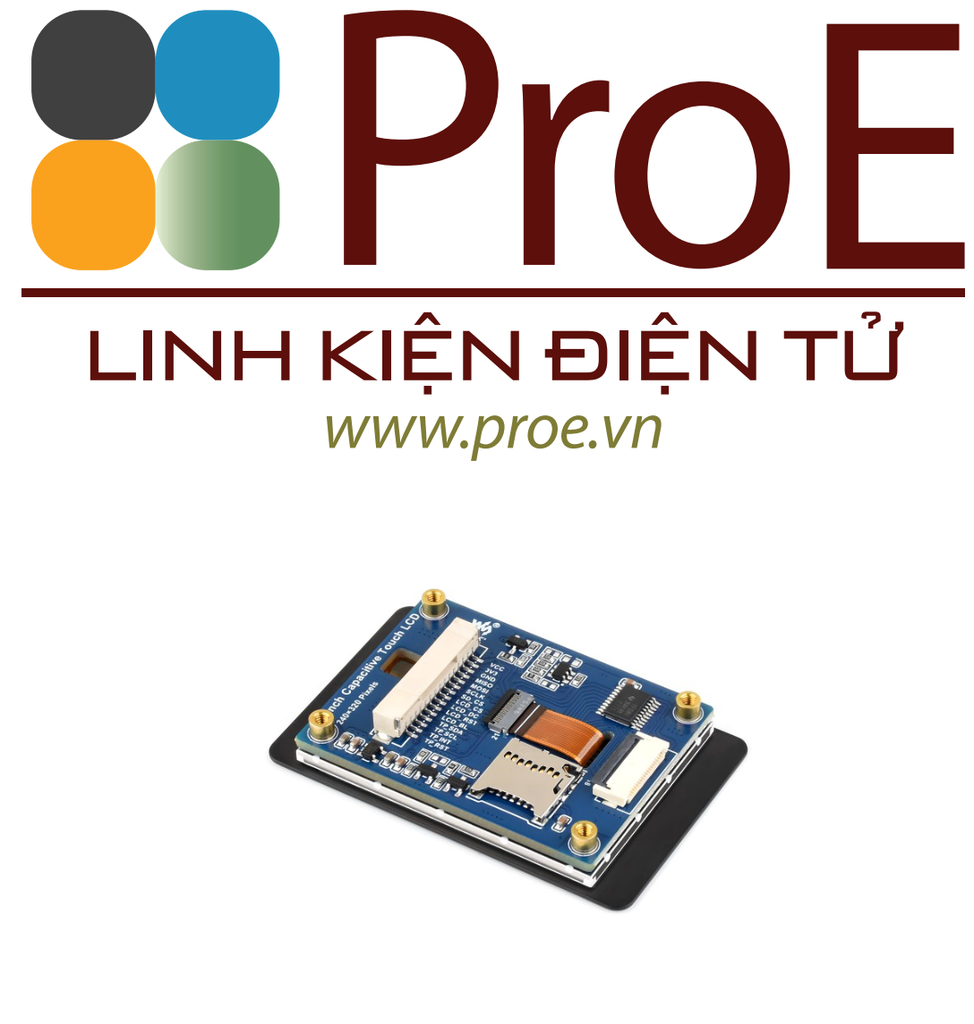

- Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
- Onboard voltage translator, compatible with 3.3V / 5V operating voltage
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)
Specifications
| Operating Voltage | 3.3V / 5V | Resolution | 240 × 320 pixels |
|---|---|---|---|
| Display Driver | ST7789T3 | Touch Driver | CST816D |
| Display Interface | 4-wire SPI | Touch Interface | I2C |
| Display Panel | IPS | Touch Type | Capacitive |
| Pixel Pitch | 0.1275 × 0.1275 (mm) | Touch Points | single point touch |
| Display Size | 30.6 × 40.8 (mm) | Module Size | 37.1 × 58.8 (mm) |
Onboard Voltage Translator
Compatible With 3.3V / 5V Operating voltage

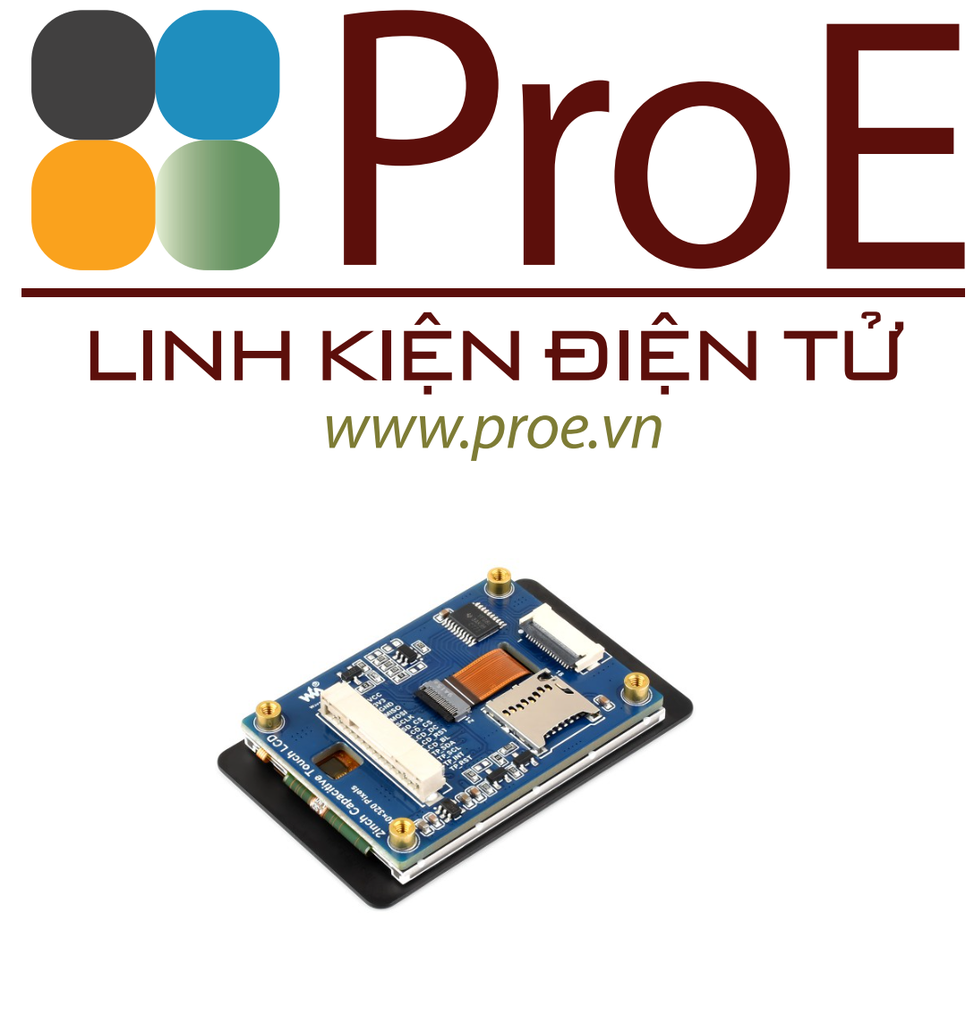

Onboard TF Card Slot
For storing more pictures or files
Suitable For Multiple Programming Platforms
Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, with High Expansibility
Raspberry Pi
Raspberry Pi Pico
ESP32
Arduino Boards
SPI and I2C Control Interfaces
Options For 15PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board

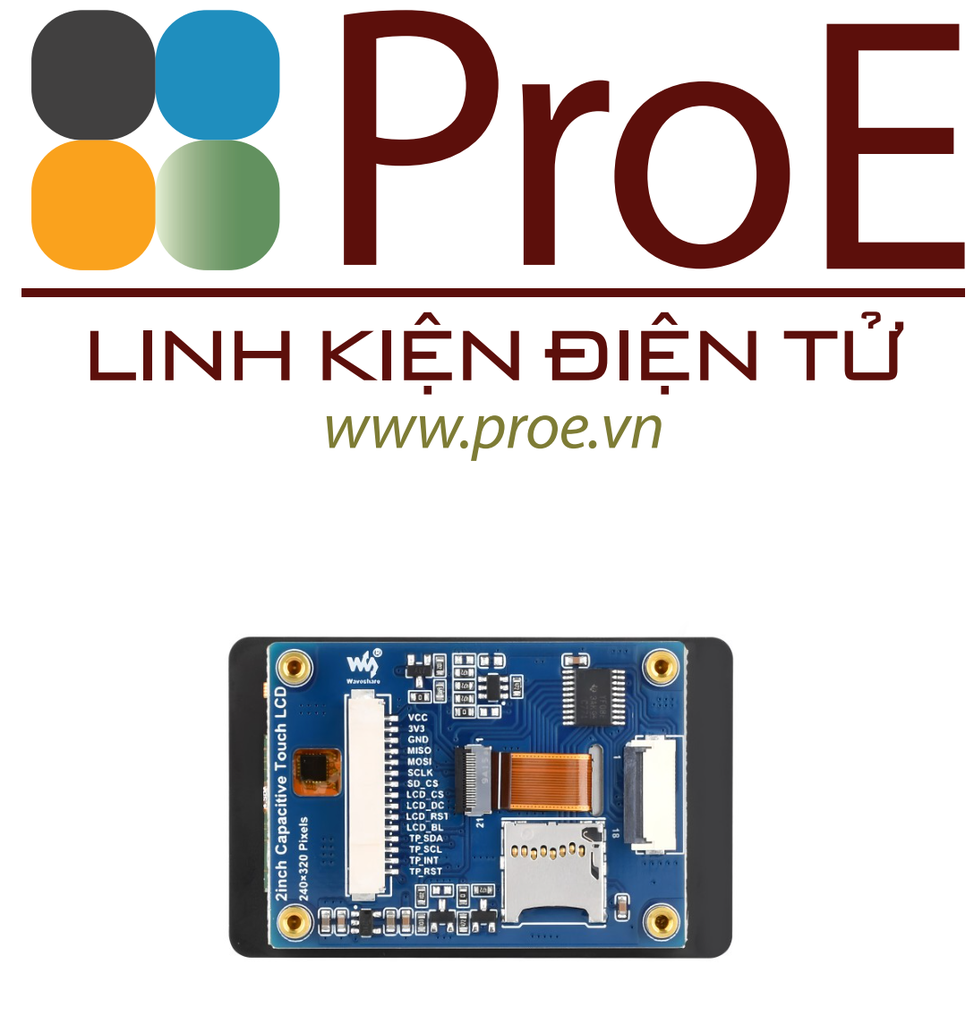

| Pin | Description | 15PIN Pin No. |
18PIN Pin No. |
|---|---|---|---|
| VCC | Power (3.3V / 5V input) | 1 | 1 |
| 3V3 | Power (3.3V input) | 2 | NC |
| GND | Ground | 3 | 3 |
| MISO | SPI MISO pin | 4 | 6 |
| MOSI | SPI MOSI pin | 5 | 5 |
| SCLK | SPI CLK pin | 6 | 4 |
| SD_CS | TF card chip selection, low active | 7 | 10 |
| LCD_CS | LCD chip selection, low active | 8 | 9 |
| LCD_DC | LCD data/command selection (high for data, low for command) | 9 | 7 |
| LCD_RST | LCD reset pin, low active | 10 | 8 |
| LCD_BL | LCD backlight pin | 11 | 2 |
| TP_SDA | Touch panel data pin | 12 | 14 |
| TP_SCL | Touch panel clock pin | 13 | 13 |
| TP_INT | Touch panel interrupt pin | 14 | 15 |
| TP_RST | Touch panel reset pin, low active | 15 | 12 |
Hardware Connection
Connecting with Raspberry Pi 5
Connecting with ESP32-S3
* for reference only, the Raspberry Pi 5 and ESP32-S3 driver board are NOT included, please check the Package Content for the detailed part list.
Outline dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/2inch_Capacitive_Touch_LCD
