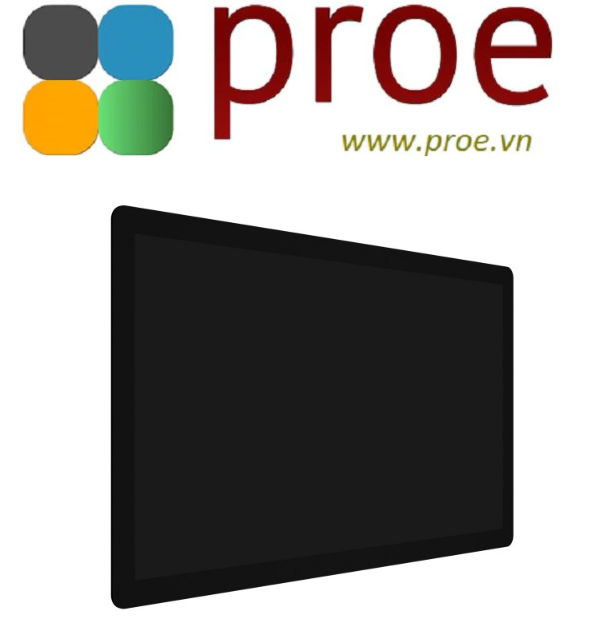

21.5inch Capacitive Touch Display, 1080×1920 Full HD, Optical Bonding Toughened Glass Panel, Supports Raspberry Pi / Jetson Nano

PACKAGE CONTENT

Weight: 4.561 kg

1. 21.5inch FHD LCD x1
2. HDMI cable ~1m x1
3. HDMI to Micro HDMI adapter x1
4. USB Type A to Type C cable ~1m x1
5. OPTIONS 12V 2A power adapter x1
6. Triangular stand x1
7. Button board x1
8. 1.27H 4PIN button board cable x1
9. Capacitive touch pen ×1

21.5inch Capacitive Touch Display, 1080×1920 Full HD, Optical Bonding Toughened Glass Panel, Supports Raspberry Pi / Jetson Nano, Etc.

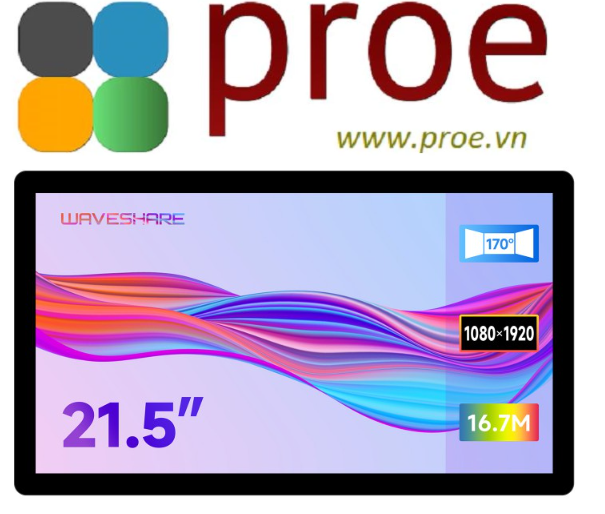

21.5″ Capacitive Touch Display

Industrial Quality, Suitable For Industrial, Commercial, And Medical Applications, Etc.

• Size21.5″
• Resolution1080×1920
• Display InterfaceHDMI
• Display Color16.7M
• Viewing Angle170°
• Touch TypeCapacitive
• Touch PortType-C
• Touch Points10-Point
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• Temperature Range-5 ~ 60℃
• OSD MenuBrightness/Contrast
• Brightness600cd/m²
• Audio Output 13.5mm Jack
• Audio Output 24PIN Header

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

The display orientation is portrait by default, 1080×1920 resolution (H×V). Change the software config for landscape display.

Connection Examples

Working With Raspberry Pi 5

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With Raspberry Pi 2 W

You need to prepare additional mini HDMI adapter and USB cable

Working With Jetson Nano

Working With Mini PC

for reference only, the Raspberry Pi boards and the hosts above are NOT included.

Configurable Display Orientation

The Display Orientation Is Portrait By Default, 1080×1920 Resolution (H×V).
Change The Software Config For Landscape Display

Wide Viewing Angle IPS Display Panel

Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical bonding, display well and dustproof

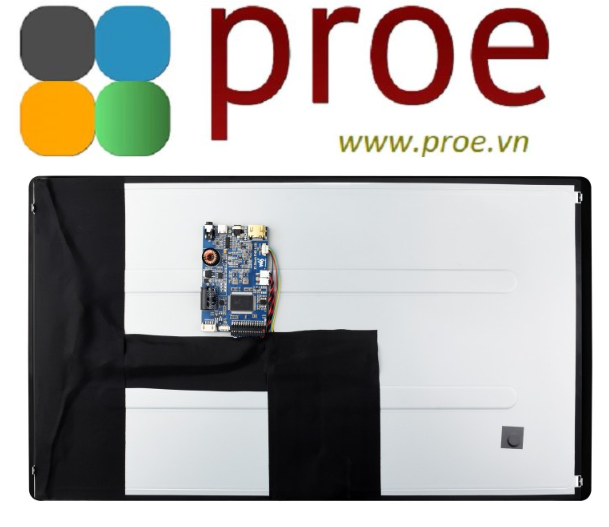

Interface Introduction

Application Scenarios

Suitable For Industrial, Commercial, Medical And Other Applications

Dimensions

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/21.5inch_FHD_LCD
