2.9inch E-Paper E-Ink Display Module (B) for Raspberry Pi Pico, 296×128, Red / Black / White, SPI

PACKAGE CONTENT

Weight: 0.04 kg

1. Pico-ePaper-2.9-B x1
2. Standoff pack x1

1

2

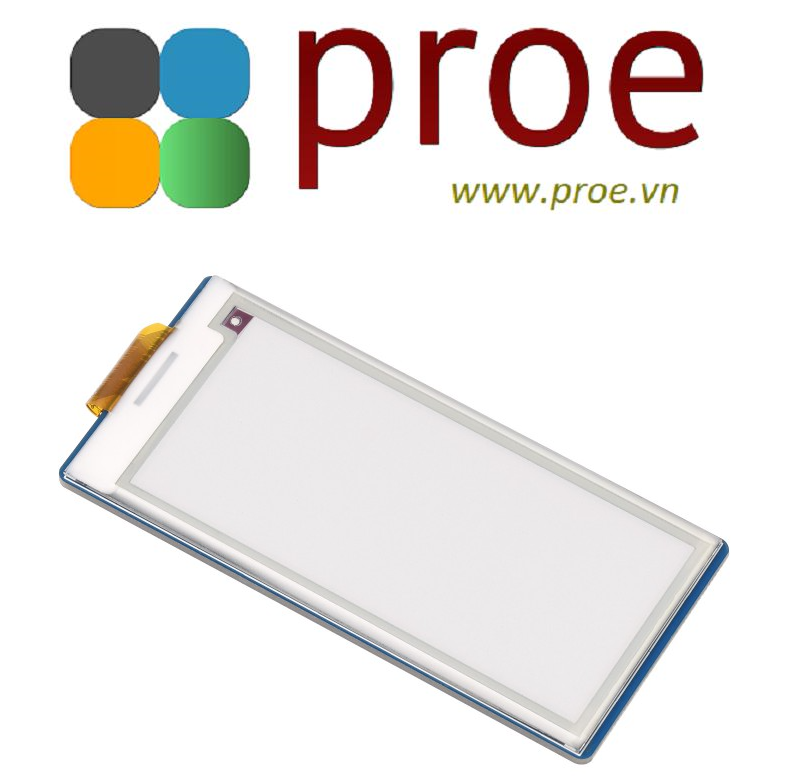

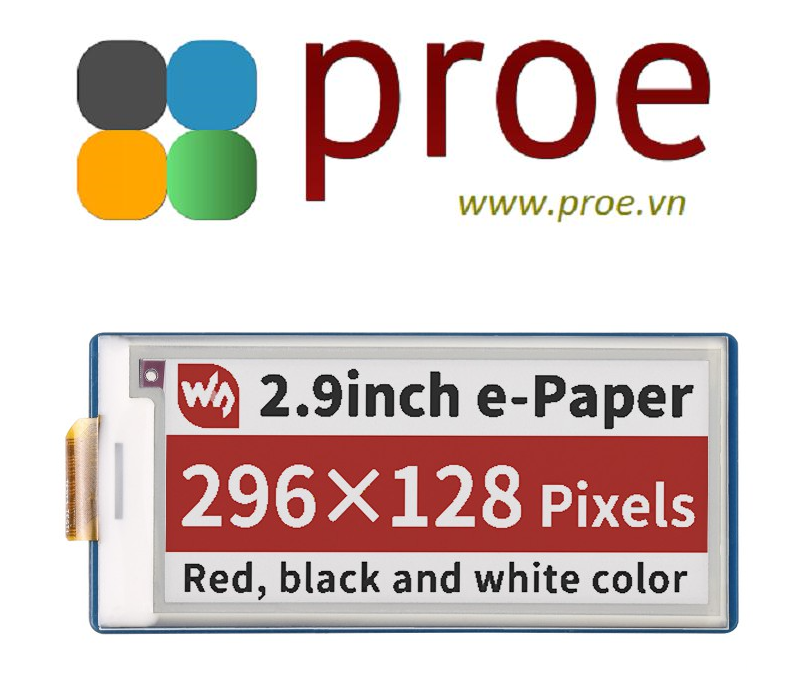

2.9inch E-Paper E-Ink Display Module (B) For Raspberry Pi Pico, 296×128 Pixels, Red / Black / White, SPI Interface

2.9" E-Paper Module (B) For Pico

Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...

• Size2.9"
• Resolution296×128
• Viewing Angle>170°
• Display ColorRed / Black / White
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• Comfortably ReadingEye Care, No Bluelight
• EnvironmentAmbient Light Required
• Display TypePassively Reflective
• Power ConsumptionUltra Low
• Display DurationPersists without Power

Features At A Glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, requires minimal IO pins
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

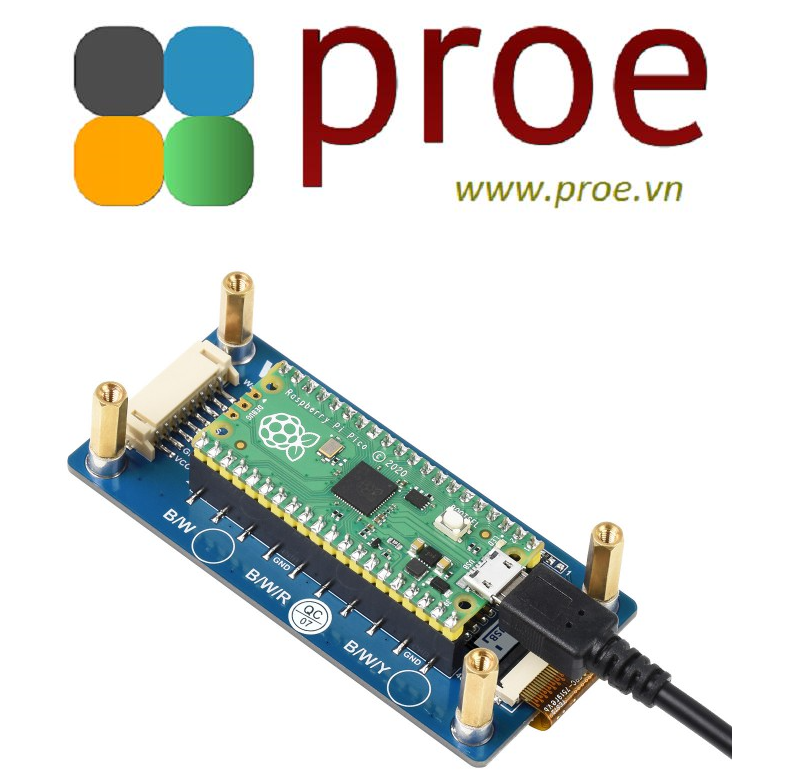

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

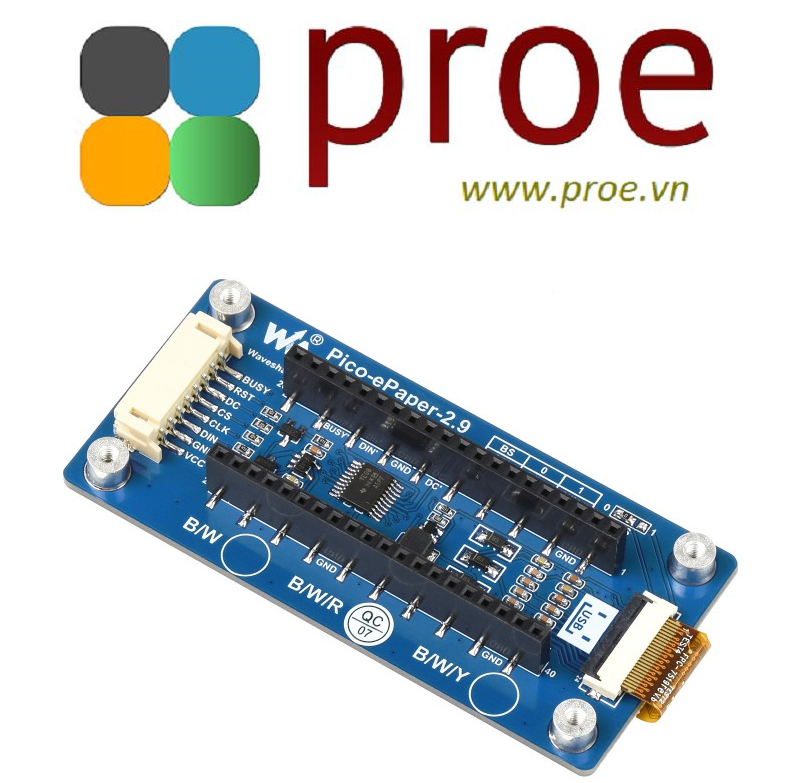

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: Pico-ePaper-2.9-B
