2.8inch Touch Display Module for Raspberry Pi Pico, 262K Colors, 320×240, SPI

PACKAGE CONTENT

Weight: 0.051 kg

1. Pico-ResTouch-LCD-2.8 x1
2. Standoffs pack x1

2.8inch Touch Display Module For Raspberry Pi Pico, 262K Colors, 320×240 Pixels, SPI Interface

2.8" Touch Display Module For Pico

Resistive Touch Controller XPT2046, ST7789 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

• Size2.8"
•
• Resolution320×240
•
• Display Color262K Colors
•
• Display PanelIPS


• Touch TypeResistive
•
• InterfaceSPI
•
• Driver/ControllerST7789/XPT2046

Features At A Glance

• 320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
• Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
• MicroSD card slot for storing images and direct displaying them easily
• Programable backlight control, power saving
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

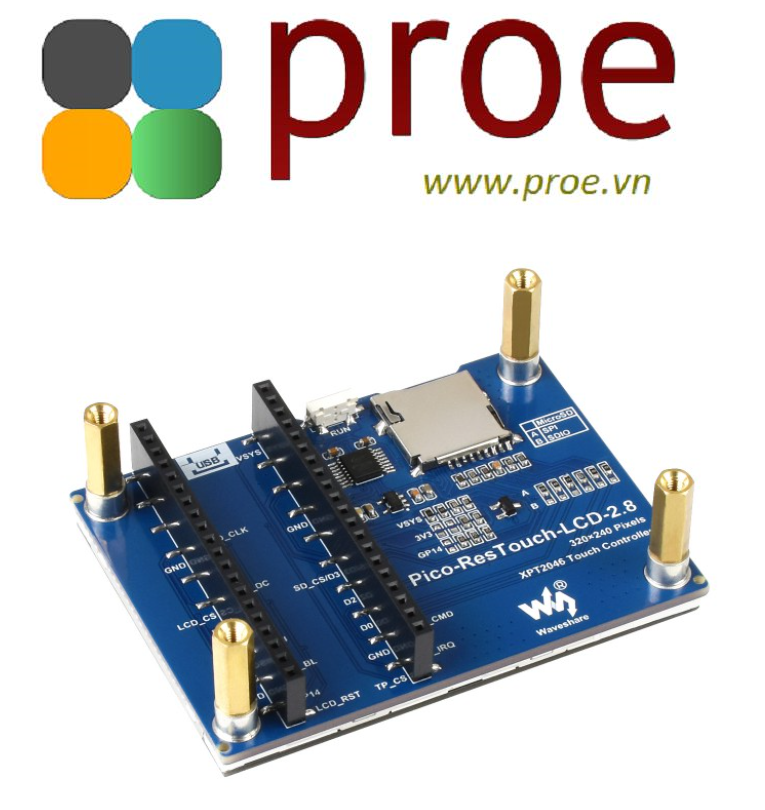

What's On Board

1. Rapsberry Pi Pico header
2. MicroSD card slot

3. XPT2046
   resistive touch controller
4. RT9193-33
   3.3V linear voltage regulator
5. Pico reset button

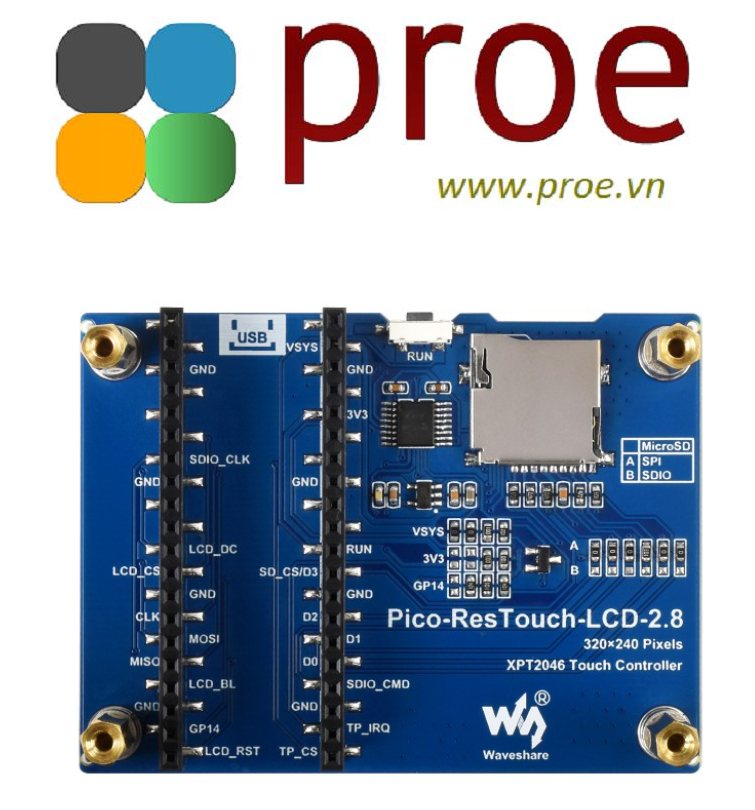

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: Pico-ResTouch-LCD-2.8
