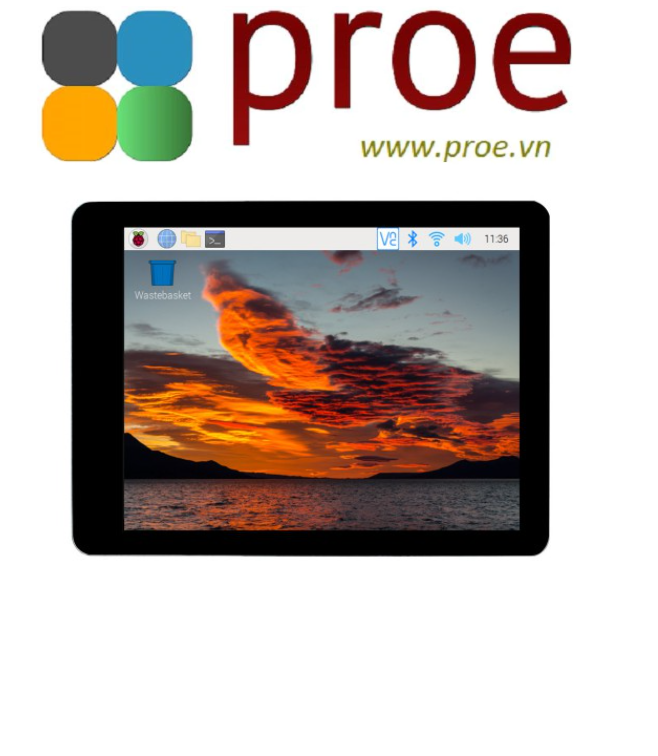

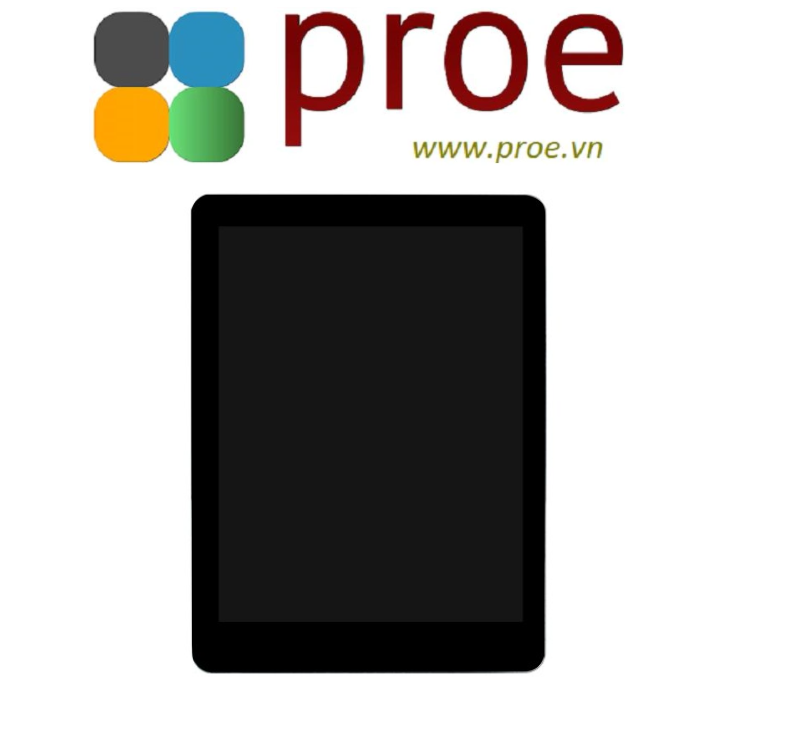

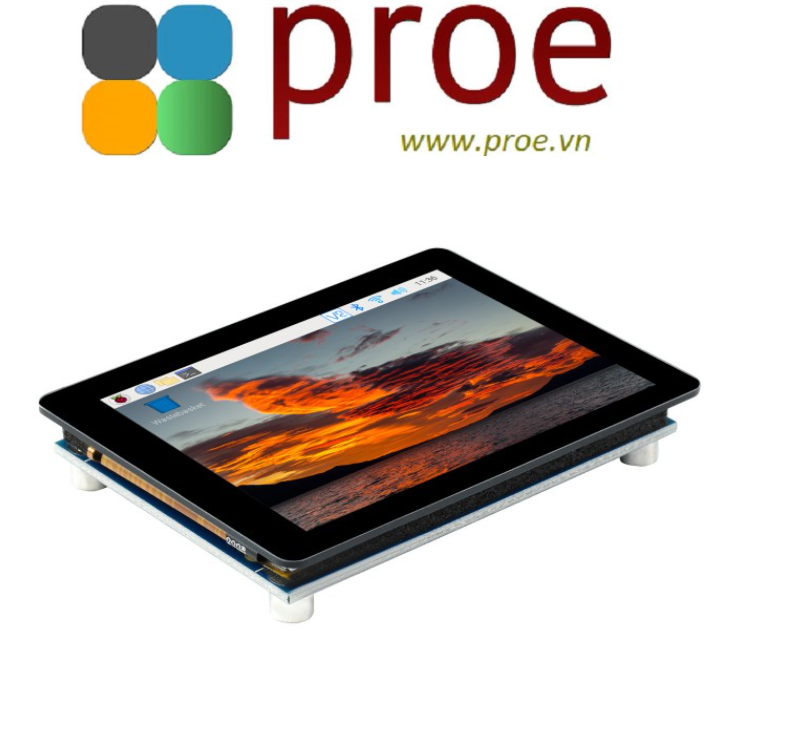

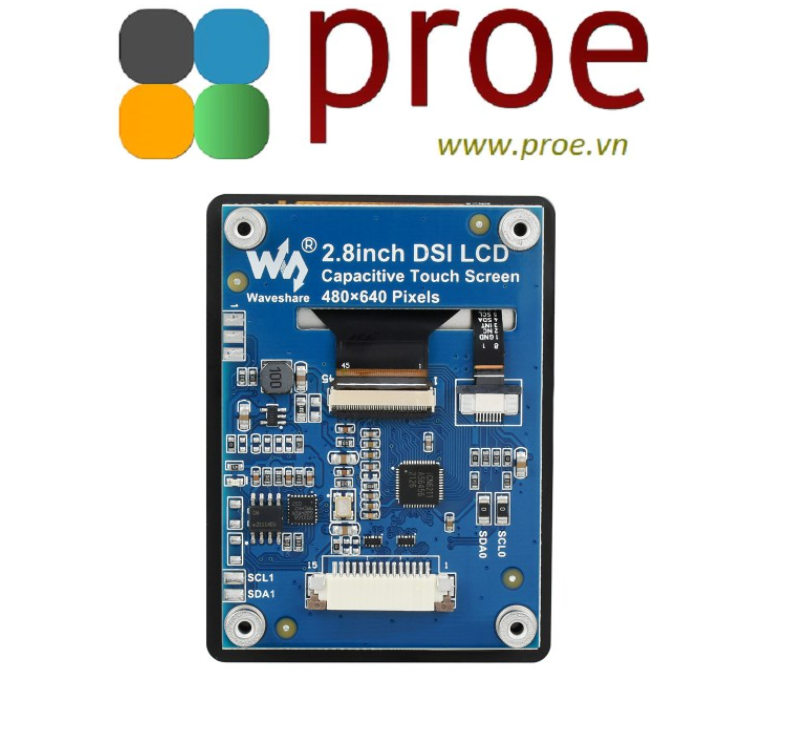

2.8inch Capacitive Touch Display for Raspberry Pi, 480×640, DSI, IPS, Fully Laminated Screen

PACKAGE CONTENT

Weight: 0.043 kg

1. 2.8inch DSI LCD x1
2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2

1

2

2.8inch Capacitive Touch Display For Raspberry Pi, 480×640, DSI Interface, IPS, Fully Laminated Screen

2.8″ Touch Display

• Size2.8″
•
• Resolution480×640
•
• Display PortDSI
•
• Display PanelIPS
•
• Viewing Angle160°
• Touch TypeCapacitive
•
• Touch Points5-Points
•
• Touch PortI2C
•
• Touch Panel TechFully Laminated
•
• Touch PanelToughened Glass

The display orientation is portrait by default, 480×640 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-points touch, driver required

Supports Pi 4B/3B+/3A+, CM3+/4*

* CM3+/4 requires extra adapter board

Connection Examples

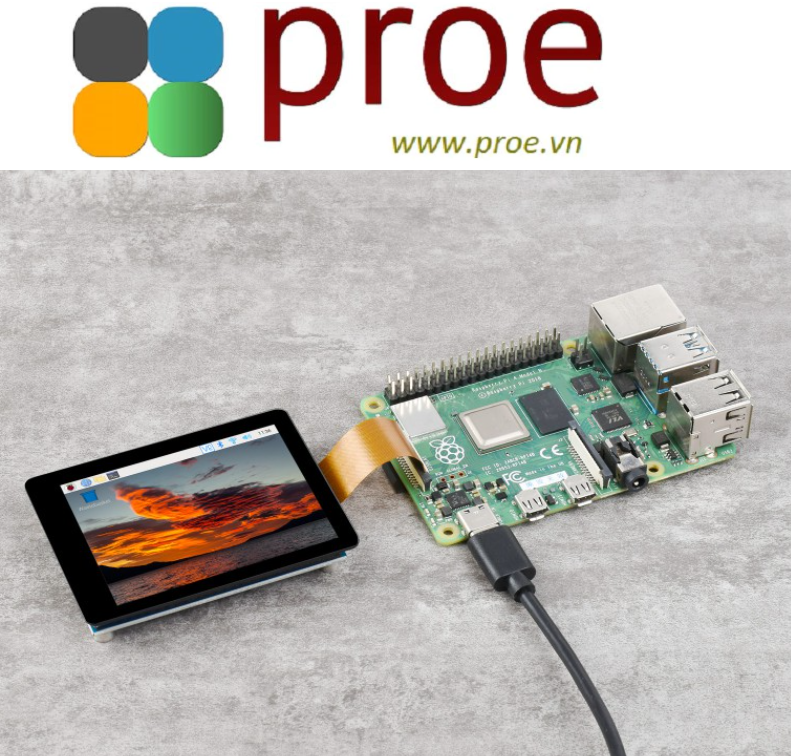

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) fully laminated screen, better display experience, dust-proof.

Adjustable Brightness Via Software

Appearance And Dimensions

Resources & Services

Wiki: 2.8inch_DSI_LCD
