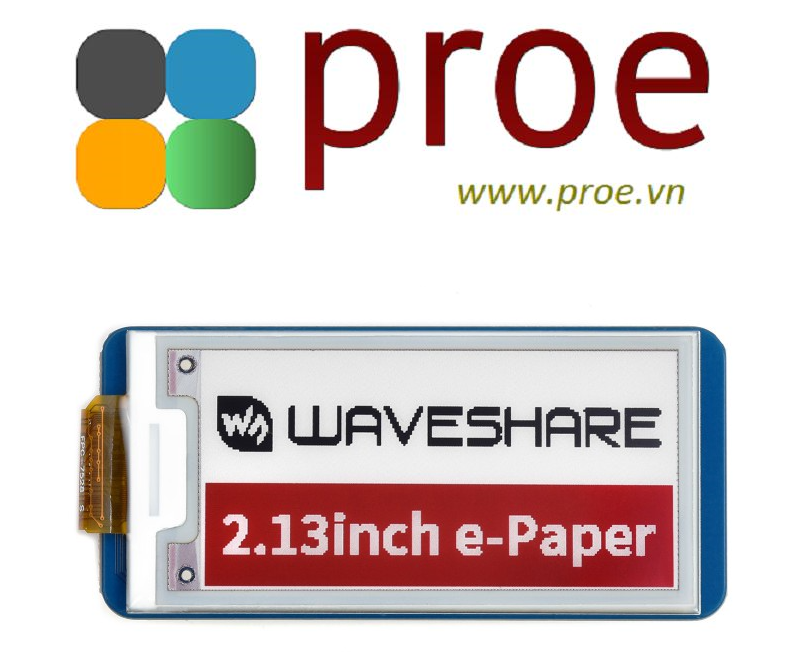

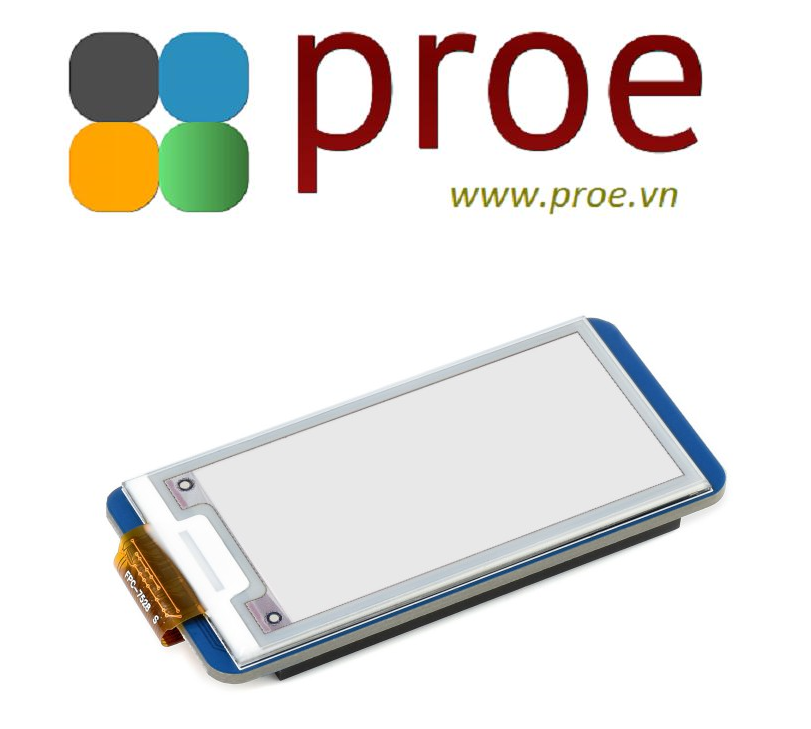

2.13inch E-Paper E-Ink Display Module (B) for Raspberry Pi Pico, 212×104, Red / Black / White, SPI

  • Mã sản phẩm: Pico-ePaper-2.13-B
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
520.000₫
PACKAGE CONTENT

Weight: 0.016 kg

  1. Pico-ePaper-2.13-B x1

1

2.13inch E-Paper E-Ink Display Module (B) For Raspberry Pi Pico, 212×104 Pixels, Red / Black / White, SPI Interface

2.13" E-Paper Module (B) For Pico

Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...



  • Size2.13"
  • Resolution212×104
  • Viewing Angle>170°
  • Display ColorRed / Black and White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • Comfortably ReadingEye Care, No Bluelight
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • Power ConsumptionUltra Low
  • Display DurationPersists without Power

Features At A Glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE 3.3V DISPLAY COLOR red, black, white
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS 65.00 × 30.50mm FULL REFRESH TIME 15s
DISPLAY SIZE 48.55 × 23.71mm REFRESH POWER 26.4mW (typ.)
DOT PITCH 0.229 × 0.228mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 212×104 pixels VIEWING ANGLE >170°

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Raspberry Pi Pico Header Compatibility

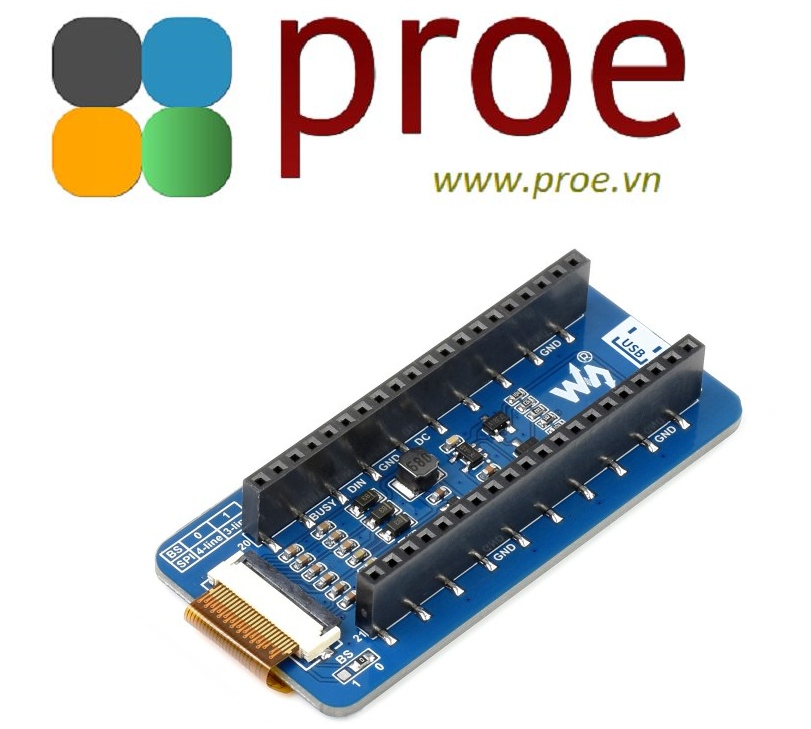

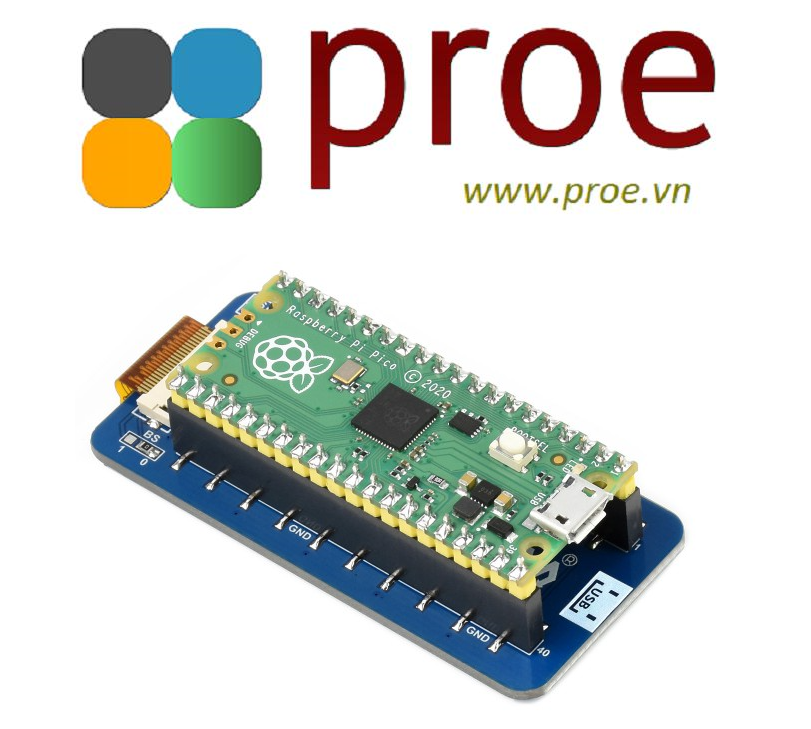

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Pinout Definition

Outline Dimensions

Resources & Services


WIKI: Pico-ePaper-2.13-B
