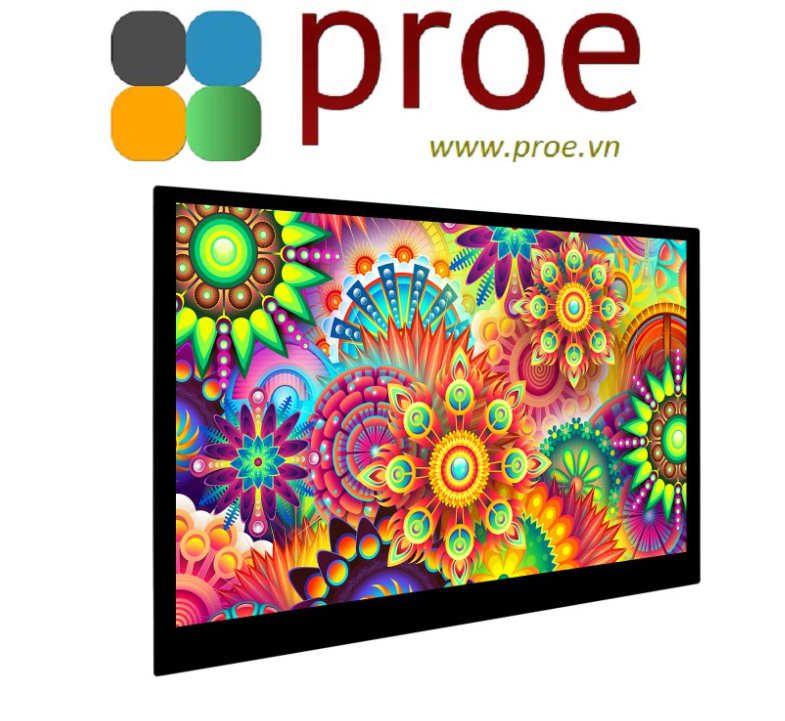

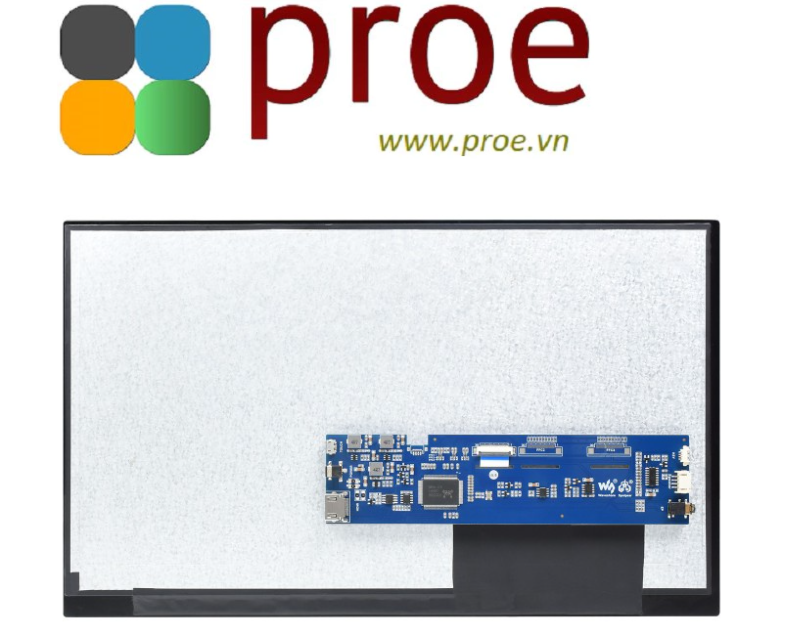

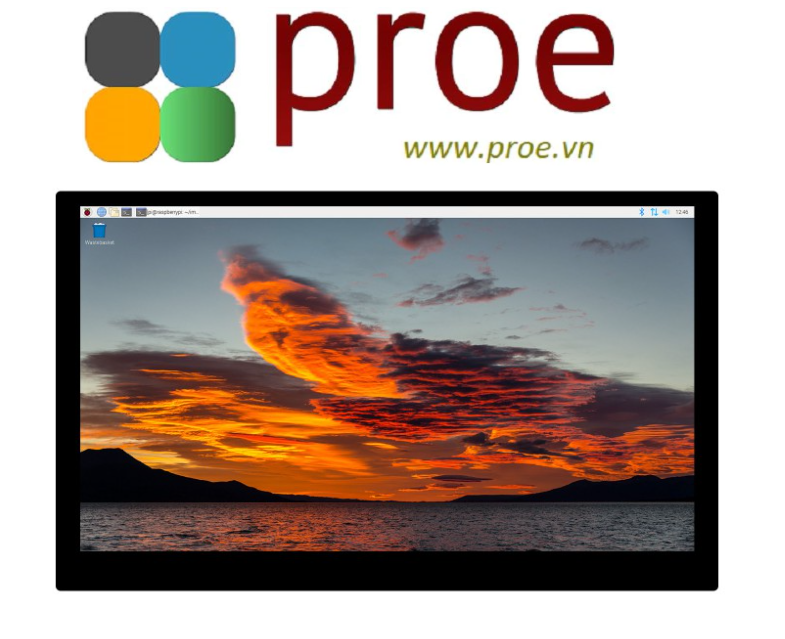

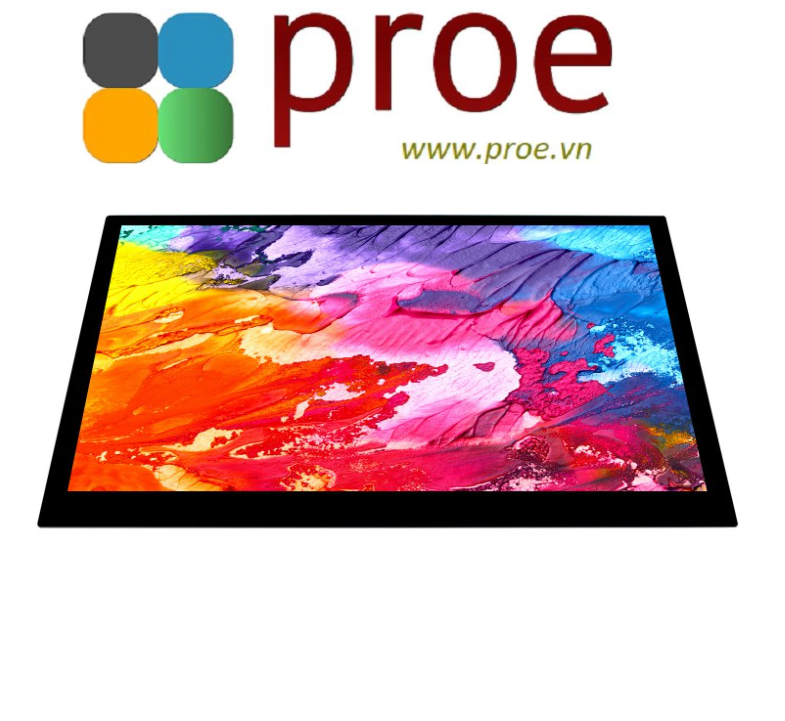

15.6inch QLED Display, 1920 × 1080, Optical Bonding IPS Toughened Glass panel, 100% sRGB Touch Screen

PACKAGE CONTENT

Weight: 1.496 kg

1. 15.6HP-CAPQLED x1
2. OPTIONS Power adapter x1
3. HDMI cable x1
4. HDMI to Micro HDMI Adapter x1
5. USB-A to Micro-B cable x1
6. Triangular stand x1
7. Button board cable x
8. Button board x1

1

2

3

4

5

6

7

8

15.6inch QLED Display, 1920 × 1080, Optical Bonding IPS Toughened Glass Panel, 100% SRGB Touch Screen

15.6″ Touch Display

• Size15.6″
• Resolution1920×1080
• Display PortHDMI
• Display PanelIPS
• Viewing Angle178°
• BacklightQLED Quantum Dot
• Touch TypeCapacitive
• Touch Points10-Points
• Touch PortUSB
• Touch PanelToughened Glass
• OSD MenuBrightness/Contrast
• Audio Output13.5mm Jack
• Audio Output24PIN Header
• Touch Panel TechOptical Bonding
• GamingXbox360/PS4/Switch

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-points touch, driver free

Game Console

Xbox360, Switch...

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero 2W

Working With AI Computer Jetson Nano

Working With Mini PC

Display

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: NTSC 100%, SRGB 100%, Adobe RGB 99%, DCI-P3 97%
Brighter, Clearer And More Natural Colors Provided By QLED Quantum Dot Technology

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

Touch Control

1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) Optical Bonding, display well and dustproof.

Enjoy Gaming

* Audio Output Via Headphone Or Speaker Jacks

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/15.6HP-CAPQLED

Product Certification

HDMI Certified

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order
