13.3inch QHD AMOLED

PACKAGE CONTENT

Weight: 1.299 kg

1. 13.3inch QHD AMOLED ×1
2. HDMI flat cable ~1m ×1
3. USB-A to USB-C cable ~1m ×1
4. USB-C to USB-C cable ×1
5. HDMI to Micro HDMI cable ~1m ×1
6. OPTIONS 5V 3A power adapter ×1
7. Triangular stand ×1

13.3inch 2K AMOLED Touch Display, 2560×1440, HDMI/Type-C Display Interface, 100%SRGB And 100%DCI-P3 Color Gamut, Optical Bonding Toughened Glass Panel, Metal Case

13.3″ 2K AMOLED Touch Display

High Resolution | Multi-Point Touch | Full Color

• Size13.3″
• Resolution2560×1440
• Display InterfaceHDMI/Type-C
• Display PanelAMOLED
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PortUSB Type-C
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• OSD MenuBrightness/Contrast
• BrightnessDCC/CI Control
• Audio Output3.5mm Jack
• SoundHi-Fi Speaker
• EnclosureCNC Process Alloy
• SmartphoneHuawei/Samsung/OPPO...
• VESA Wall Mount75 × 75mm

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Smartphone

Huawei, Samsung, OPPO...(wired projection)

• For the moment, only the Raspberry Pi 4B and CM4 have adequate CPU performance to drive this 2K display completely.
• Supports more powerful future versions as long as its GPU performance is equivalent to or better than the Pi 4B.

Connection Examples

Working With Raspberry Pi 4B

Working With Jetson Nano

Working With PC *

Working With Smartphone *

• Please make sure that the smartphone or PC itself features a full-featured Type-C interface
• For reference only, the above controller boards or hosts are NOT included

AMOLED Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

2K High Resolution

2560×1440 High Resolution, Clearer Picture & More Details

Wider Color Gamut Display

With 100% SRGB, 100% DCI-P3 Color Gamut Coverage
Makes The Color More Vivid, More Delicate

AMOLED Active Light-Emitting Screen

With 3.68M Active Light-Emitting Pixels, The AMOLED Screen Features Precise Light-Control Capability, Representing More Vivid Colors And Image

One-Hundred-Thousand Grade Contrast Radio

Features Striking One-Hundred-Thousand Grade Contrast Radio, Which Means Hundredfold Light/Dark Performance, Displaying Gradations And Details Of The Deep Starry Sky Before Your Eyes.

Brighter Highlight, Darker Shadow

Unlike Regular LCD, The AMOLED Features Active Emissive Technology, Each Pixel On The AMOLED Will Light Up By Itself, To Create Brighter Highlight Or True Black Shadow, Making It Virtually Close To 0nit True Black.

Capacitive 10-Point Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical Bonding, display well and dustproof

Supports DDC/CI Brightness Adjustment

Full-Featured Type-C Interface

Audio And Video Transmission In One Connection, Plug And Play,
Instantly Zoom In The Smartphone Screen
(For Supported Mobile Phone Models, Please Contact Customer Service)

Computer Dual Screen For Collaborative Processing

One Screen For Work, One Screen For Entertainment, Without Interfering With Each Other

Dual-Track Speaker

Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality

Comes With Triangular Stand

VESA Mounting Support

Interface Introduction

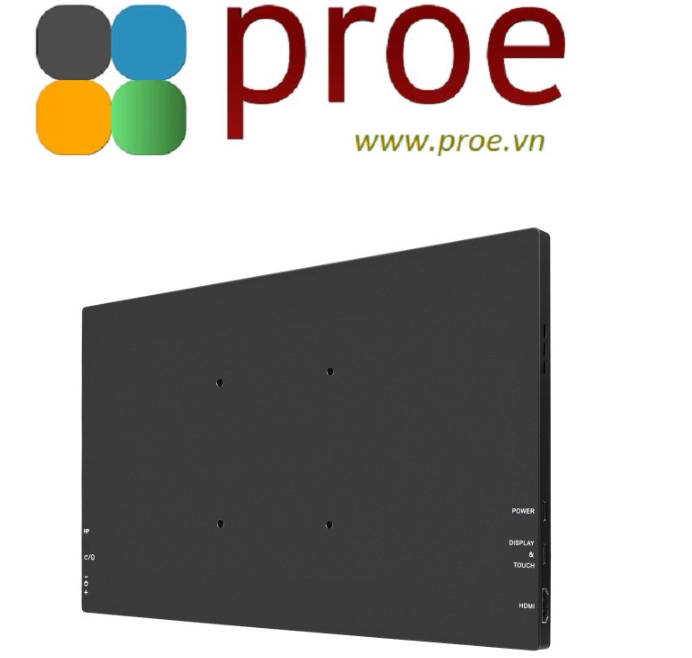

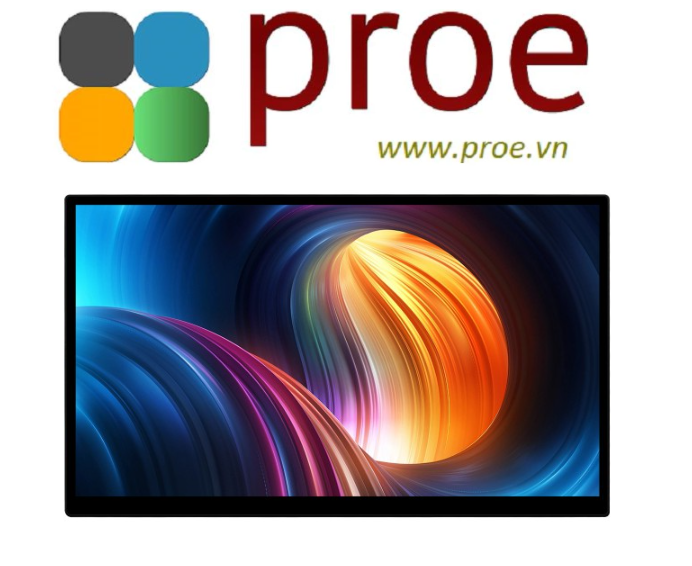

Product Show

for reference only, the Rasbpberry Pi 4B is NOT included

Dimensions

Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/13.3inch_QHD_AMOLED
