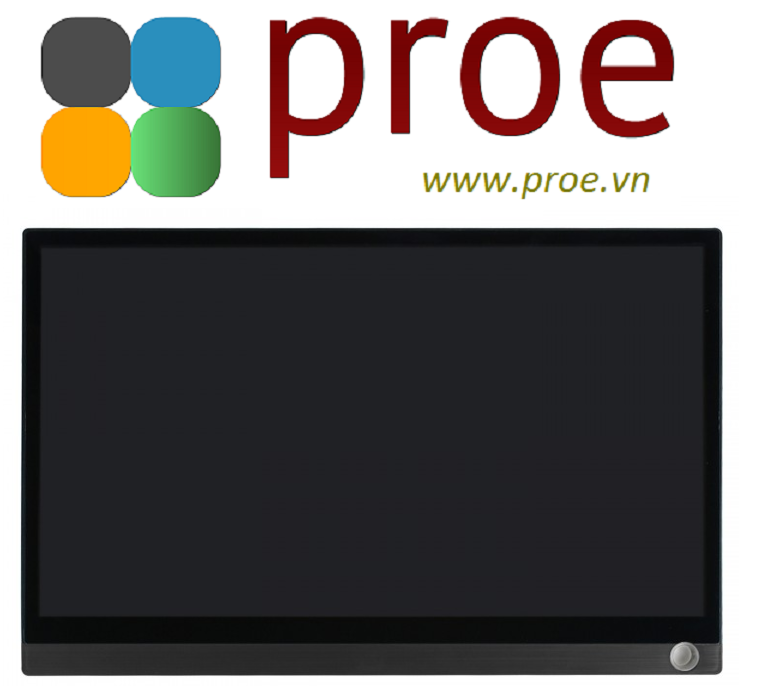

12.5inch FHD Monitor (EN) 12.5inch Universal Portable Touch Monitor, 1920×1080 Full HD, IPS, HDMI/Type-C

PACKAGE CONTENT

Weight: 1.604 kg

1. 12.5inch FHD Monitor x1
2. 12.5inch FHD Monitor Case x1
3. Power adapter x1
4. Power adapter EU head x1
5. HDMI cable x1
6. HDMI to Micro HDMI Adapter x1
7. USB-A to USB-C cable x1
8. USB-C to USB-C cable x1
9. Quick start sheet x1

1

2

3

4

5

6

7

8

9

DESCRIPTION

12.5inch Universal Portable Touch Monitor, HDMI/Type-C Port, 1920×1080 Full HD, IPS Screen

12.5" Touch Monitor

• Size12.5"
• Resolution1920×1080
• Display PortType-C/HDMI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Points
• Touch PortType-C/USB
• Touch PanelToughened Glass
• OSD MenuBrightness/Contrast
• USB ExtensionExternal Devices
• SoundHi-Fi Speaker
• Audio Output3.5mm Jack
• GamingXbox360/PS4/Switch
• SmartphoneHuawei/Samsung...
• EnclosurePolycarbonate

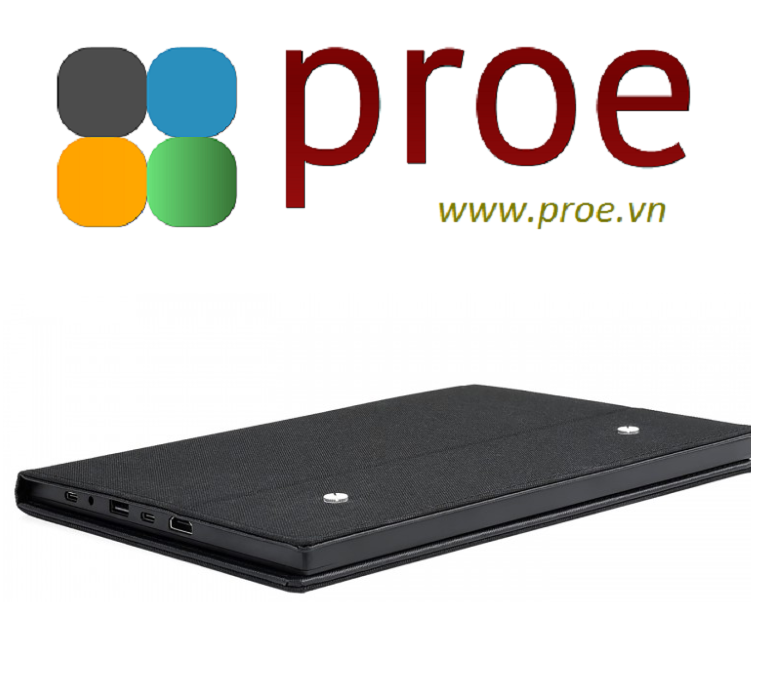

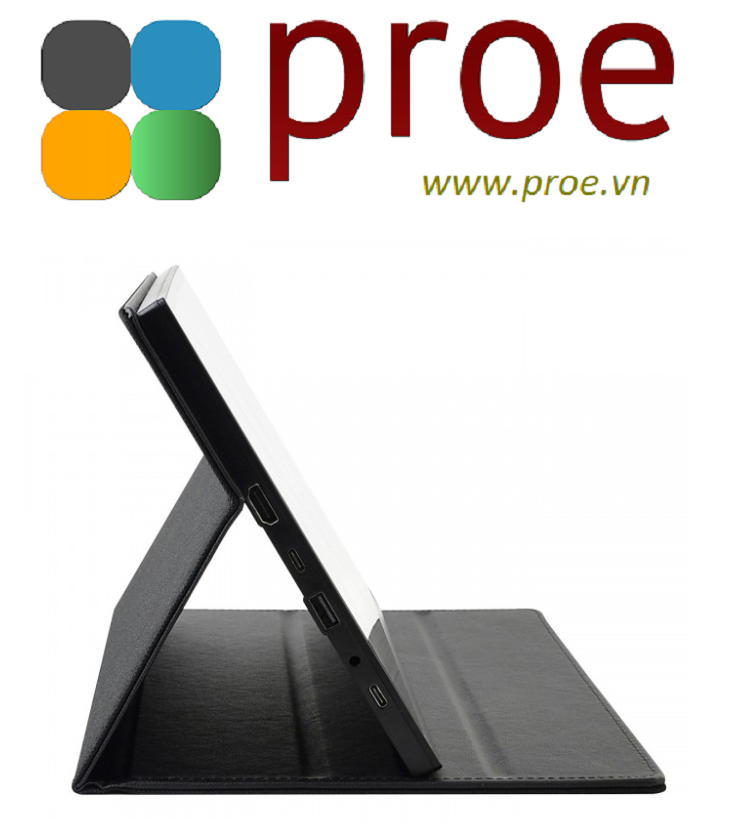

• Protective Case3 Angle Options

Device & System Support



Raspberry Pi

Supports Raspbian, 10-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free

Game Console

Xbox360, PS4, Switch...

Smartphone

Huawei, Samsung, OPPO, LG, HTC...(mirror cast)

Hookup Example

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Full-Featured Type-C Mini PC

Working With Full-Featured Type-C Smartphone

Display

Touch Control



1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Audio Feature



Enjoy Gaming

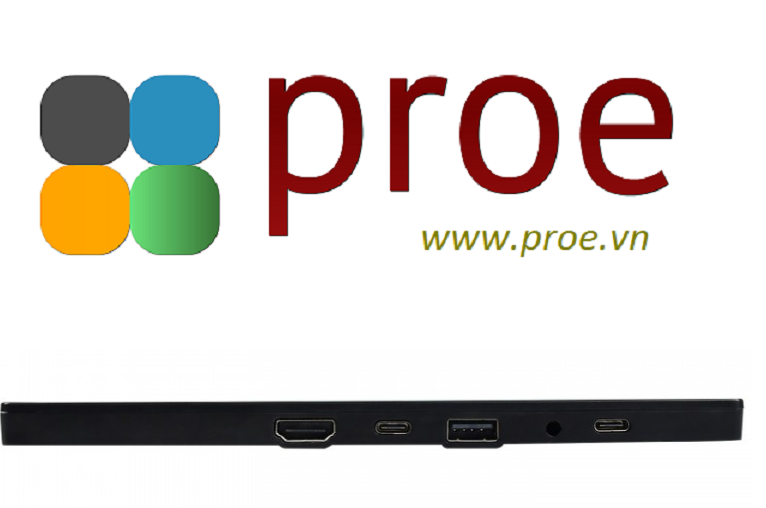

Full-Featured Type-C Port

Audio And Video Transmission In One Connection
One Cable Is Just Enough For Either Computer Dual-Screen OR Smartphone Mirror Cast

Appearance And Dimensions

Applicability

(Including But Not Limited To)

CATEGORY	COMPATIBILITY
mini PC	Supports popular mini PC like Raspberry Pi, Jetson Nano, BB Black, etc.
	When working with Rasperry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IoT, driver free
PC	Supports desktop computers with HDMI port
	Supports Windows 10/8.1/8/7, 10-points touch, driver free
Notebook	Apple	MacBook 12", MacBook Pro, MacBook Air, iPad Pro 2018
	HUAWEI	MateBook, MateBookX, MateBookXPro, MateBookE
	Honor	Magic
	MI	Air 12.5/13.3", Pro15.6", MI gaming laptop
	Lenovo	Yoga5 Pro, ThinkPad_XI Carbon 2017, Miix 720
	HP	Pavilion x2, EliteBook Folio G1
	DELL	XPS13, XPS15
	Google	ChromeBook Pixels, PielBook Pen
	Razer	Blade/Blade Stealth
	Microsoft	Surface Book 2
	ASUS	ZenBook3, U306, U321 series, U4100, ROG series
Smartphone	HUAWEI	Mate10, Mate10 Pro, Mate20, Mate20 Pro, Mate20 X, P20, P20 Pro
	Honor	Note10, Magic 2, V20
	HTC	U Ultra
	LG	G5
	Razer	Razer Phone, Razer Phone 2
	ASUS	ROG gaming phone
	OPPO	R17 PRO
	Samsung	S8, S8+, S9, S9+, S10, Note8, Note9

Product Certification

HDMI Certified

* We are an official authorized HDMI Adopter.

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for about 10 years.

Development Resources

Wiki: www.waveshare.com/wiki/12.5inch_FHD_Monitor
