10.1inch HDMI LCD (B) (with case), 1280×800, IPS

IPS, 1280×800, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Comes with US plug power adapter

The LCD and Control Board

• IPS screen,1280×800 high resolution
• Capacitive touch control, supports up to ten-points touch
• When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
• Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
• Supports BB Black, comes with Angstrom image
• HDMI interface for displaying, USB interface for touch control
• Supports 5-level backlight adjustment

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

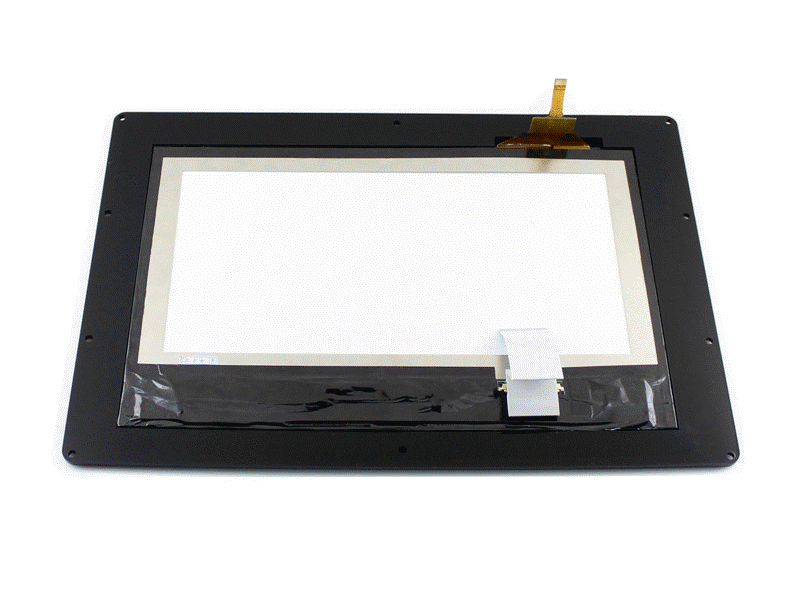

The Case

• Material : high quality black Acrylic
• Comes with back holder, 45° tilt angle
• Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, BB Black, Banana Pi

Using with Game Consoles

Note:

• Limited by the game console OS, the touch function is unavailable.
• Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

Photos

Note: Raspberry Pi in the photos is NOT included.

External Dimension

Development Resources

How to install: instruction

Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(B)_(with_case)

PACKAGE CONTENT

Weight: 0.905 kg

1. 10.1inch HDMI LCD (B) (with case) x1
2. Back stand x1
3. Power adapter x1
4. HDMI cable x1
5. HDMI to Micro HDMI Adapter x1
6. USB-A to Micro-B cable x1
7. Screws pack x1
8. Quick start sheet x1
