10.1inch HDMI LCD

DESCRIPTION

10.1inch Resistive Touch Screen LCD, 1024×600, HDMI, IPS, Supports Raspberry Pi / PC

10.1" HDMI Touch Display

• Size10.1"
• Resolution1024×600
• Display PortHDMI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeResistive
• Touch PortSPI
• OSD MenuBrightness/Contrast
• CertificationCE

Device & System Support

Raspberry Pi

Directly Pluggable: Raspberry Pi 4B / 3B+ / 3A+ / 3B / 2B / 1B+ / 1A+
Additional HDMI Cable Required: Raspberry Pi Zero WH / Zero W / Zero
Driver Provided: supports Raspbian / Ubuntu / Kali / Retropie

Supports future version which is backward compatible

PC

Works as a computer monitor, no touch (additional HDMI cable required)

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With Mini PC

Display

IPS Panel

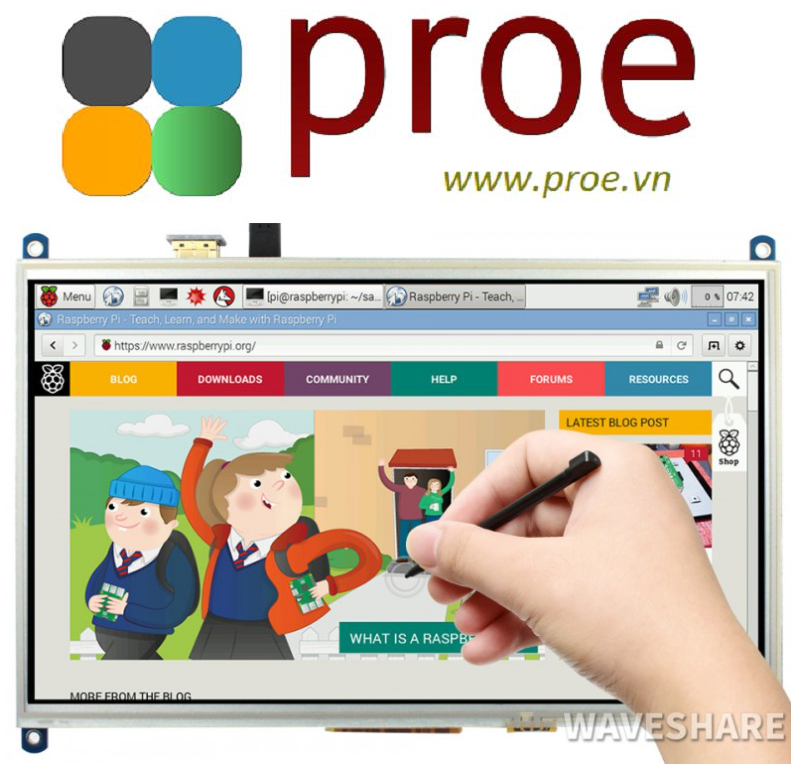

Touch Control

Comes With Touch Stylus

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/10.1inch_HDMI_LCD

PACKAGE CONTENT

Weight: 0.537 kg

1. 10.1inch HDMI LCD x1
2. HDMI Adapter (A) x1
3. HDMI Adapter (B) x1
4. Touch stylus x1
5. RPi screws pack (4pcs) x1
6. Quick start sheet x1
