1.9inch LCD Module

  • Mã sản phẩm: 1.9inch LCD Module
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
350.000₫
PACKAGE CONTENT

Weight: 0.015 kg

  1. 1.9inch LCD Module x1
  2. GH1.25 20cm 8Pin cable x1

1

2

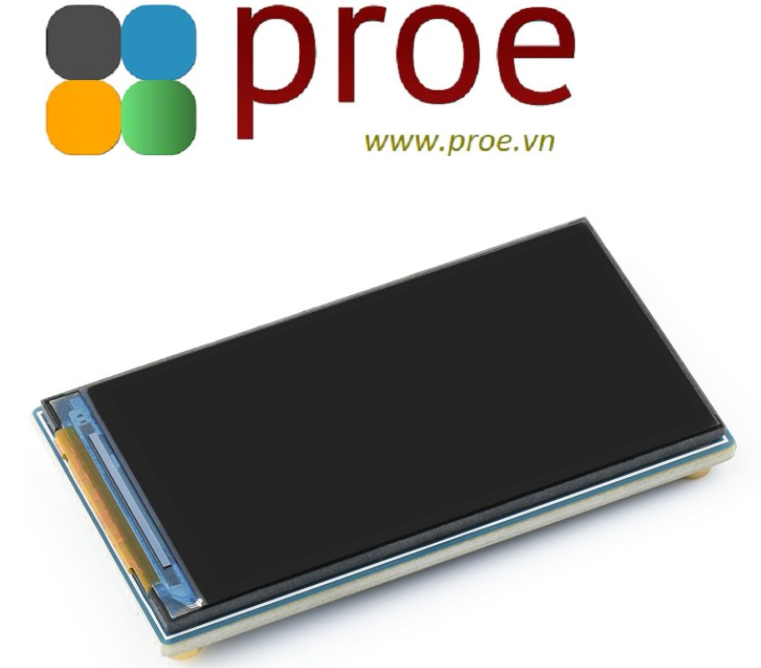

1.9inch LCD Display Module, 170×320 Resolution, SPI Interface, IPS, 262K Colors

1.9inch LCD Display Module

Embedded ST7789V2 Driver Chip, Using SPI Interface

Comes with examples for Raspberry Pi, Arduino, STM32, etc.




  • Size1.9"
  •
  • Resolution170×320
  •
  • Display Color262K

  • InterfaceSPI
  •
  • Display PanelIPS
  •
  • DriverST7789V2

Features At A Glance

  • 170×320 resolution, 262K colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
  • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)



Specifications

OPERATING VOLTAGE 3.3V / 5V RESOLUTION 170 × 320 pixels
COMMUNICATION INTERFACE 4-wire SPI DISPLAY SIZE 22.70 × 42.72 mm
DISPLAY PANEL IPS PIXEL SIZE 0.1335 × 0.1335 mm
DRIVER ST7789V2 MODULE SIZE 27.3 × 51.2mm



Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

BL Backlight
RST Reset, low active
DC Data/Command selection (high for data, low for command)
CS Chip selection, low active
CLK SPI clock input
DIN SPI data input
GND Ground
VCC Power (3.3V / 5V input)



Hardware Connection



Connecting With Raspberry Pi



Connecting With Arduino Board



Connecting With STM32

Usage Example

Product Show









Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/1.9inch_LCD_Module
