1.5inch LCD Module

1.5inch LCD Display Module, IPS Panel, Rounded Corners, 240×280 Resolution, SPI Interface, 262K colors

PACKAGE CONTENT

Weight: 0.013 kg

1. 1.5inch LCD Module x1
2. GH1.25 8PIN cable x1

1

2

1.5inch LCD Display Module

Embedded NV3030B Driver, Using SPI Bus

Comes with examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series

• Size1.5"
•
• Resolution240×280
•
• Display Color262K RGB
•
• InterfaceSPI
•
• DriverNV3030B

Features At A Glance

• 240×280 resolution, 262K RGB colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)

Specifications

Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson Series

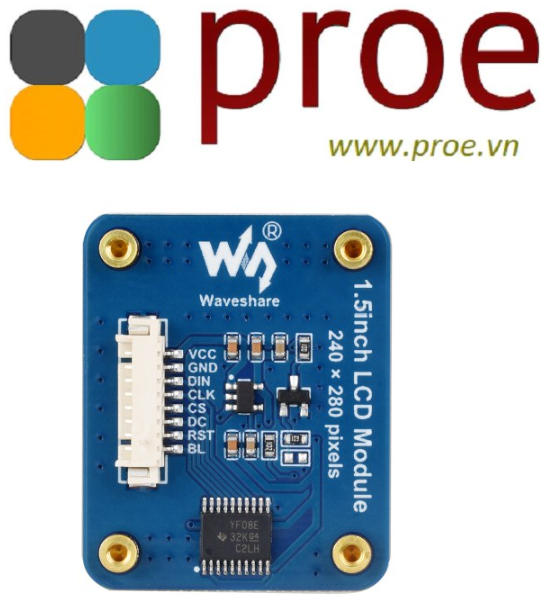

Hardware Connection

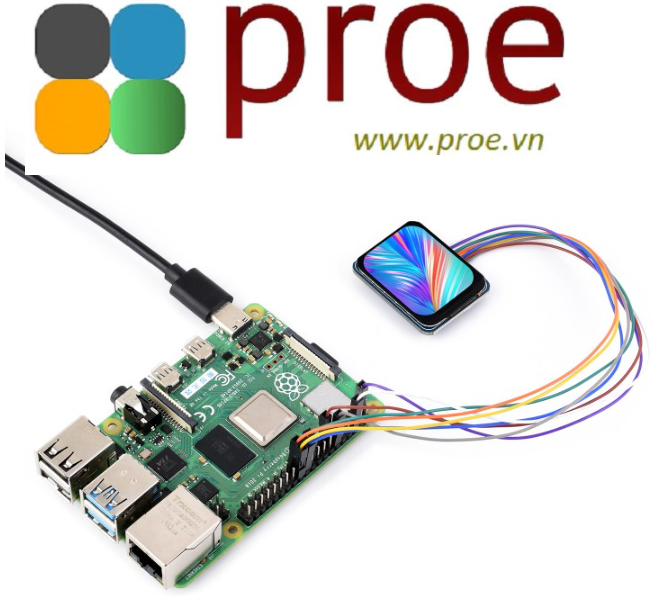

Connecting With Raspberry Pi

Connecting With Arduino Board

Connecting With STM32

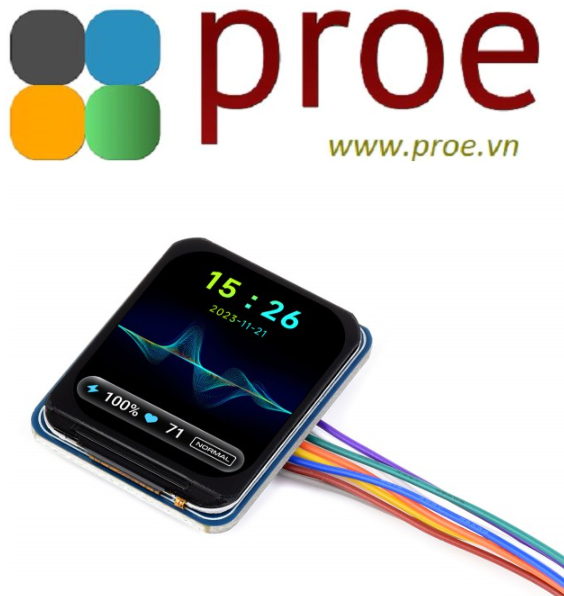

Usage Example

* for reference only, please refer to the Package Content for the detailed part list.

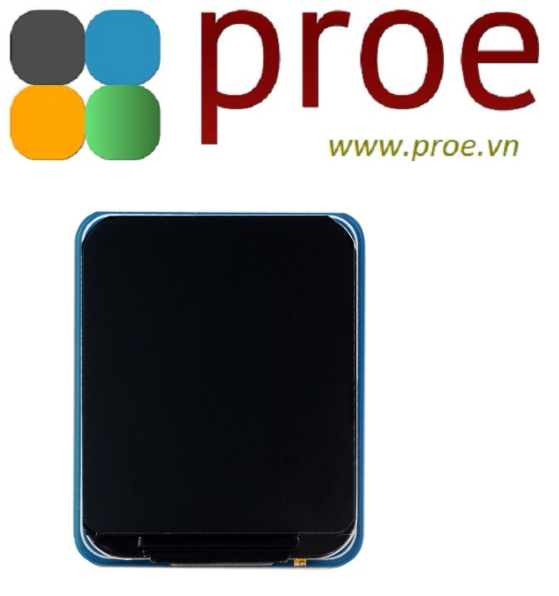

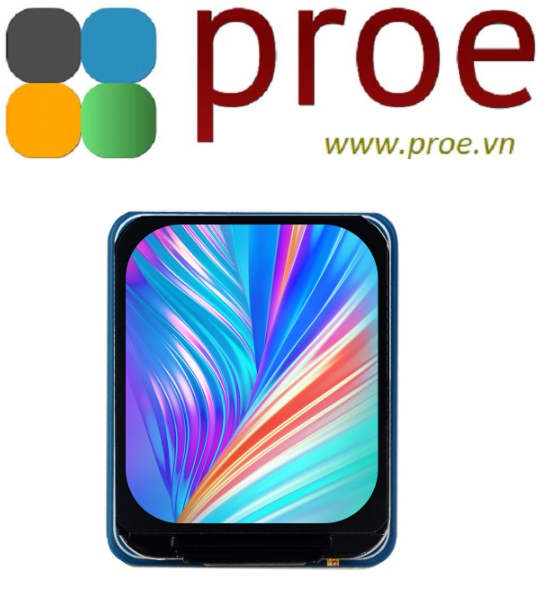

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/1.5inch_LCD_Module
