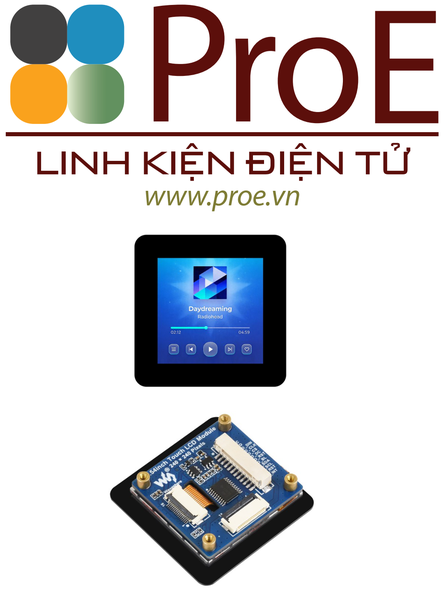

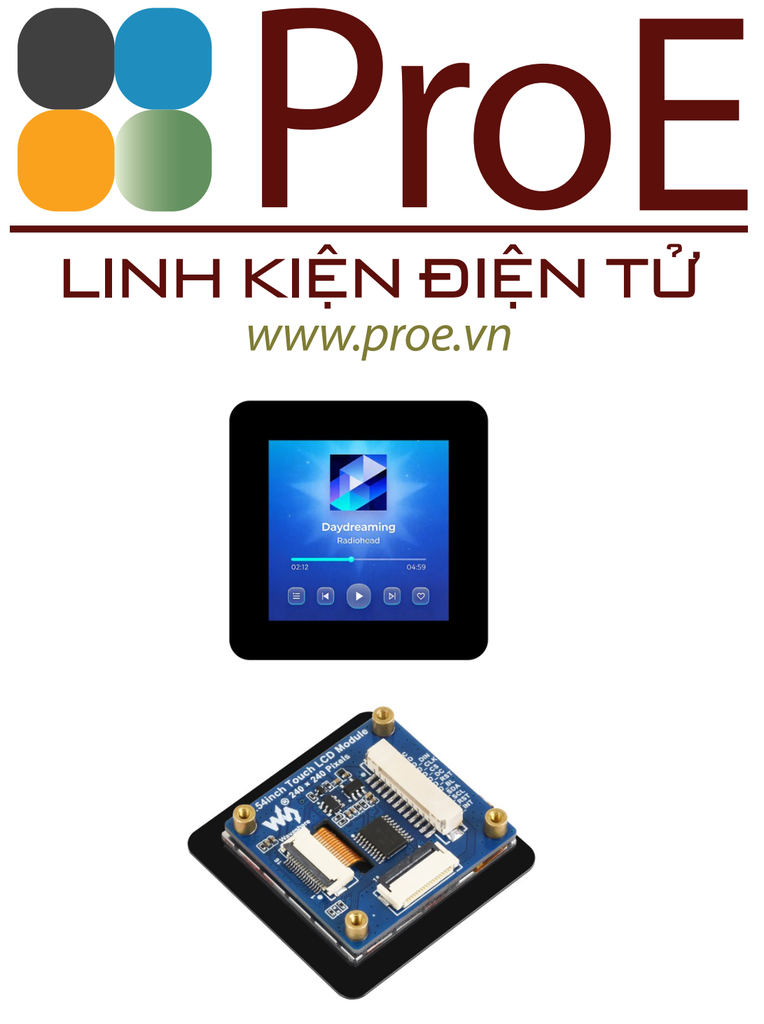

1.54inch Touch LCD Module
- Mã sản phẩm: 1.54inch Touch LCD Module
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
650.000₫
Weight: 0.023 kg
- 1.54inch Touch LCD Module x1
- GH1.25 12PIN cable x1
- FFC 18PIN 0.5mm pitch cable 200mm (same direction) x1
1
2
3
1.54inch Touch LCD Display Module, 240×240 Resolution, IPS panel, SPI and I2C communication interfaces, 262K Display Color
1.54inch Touch LCD Display Module
Embedded ST7789S driver and CST816D capacitive touch control chip
Comes with examples for Raspberry Pi, ESP32-S3, Pico, Arduino, STM32, etc.
- Size
1.54" - Resolution
240 × 240 - Display Color
262K - Display Panel
IPS - Display Driver
ST7789S - Display Interface
SPI - Touch Driver
CST816D - Touch Interface
I2C
Features at a glance
- 240 × 240 resolution, 262K colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime
- Embedded ST7789S driver chip and CST816D capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / Raspberry Pi Pico / ESP32-S3 / Arduino / STM32
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino / STM32)
Specifications
| Operating voltage | 3.3V / 5V | Resolution | 240 × 240 pixels |
|---|---|---|---|
| Display Driver | ST7789S | Touch Driver | CST816D |
| Display Interface | 4-wire SPI | Touch Interface | I2C |
| DISPLAY PANEL | IPS | Touch Type | Capacitive touch |
| Display size | 27.72 × 27.72 (mm) | PIXEL SIZE | 0.1155 × 0.1155 (mm) |
| Module size | 40.2 × 40.2 (mm) | ||
Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input
SPI and I2C Control Interfaces
Options For 12PIN Connector Or 18PIN FPC Slot For Connecting
The LCD To The Host Board
| Pin | Description | 12PIN Pin No. |
18PIN Pin No. |
|---|---|---|---|
| VCC | Power (3.3V / 5V input) | 1 | 1 |
| GND | Ground | 2 | 3 |
| MOSI | SPI MOSI pin | 3 | 5 |
| SCLK | SPI CLK pin | 4 | 4 |
| LCD_CS | LCD chip selection, low active | 5 | 9 |
| LCD_DC | LCD data/command selection (high for data, low for command) | 6 | 7 |
| LCD_RST | LCD reset pin, low active | 7 | 8 |
| LCD_BL | LCD backlight pin | 8 | 2 |
| TP_SDA | Touch panel data pin | 9 | 14 |
| TP_SCL | Touch panel clock pin | 10 | 13 |
| TP_RST | Touch panel reset pin, low active | 11 | 12 |
| TP_INT | Touch panel interrupt pin | 12 | 15 |
Usage Examples
Connecting with ESP32-S3-DEV-KIT
Connecting with ESP32-S3-LCD-Driver-Board
* for reference only, please refer to the package content for the detailed part list.
Outline dimensions
