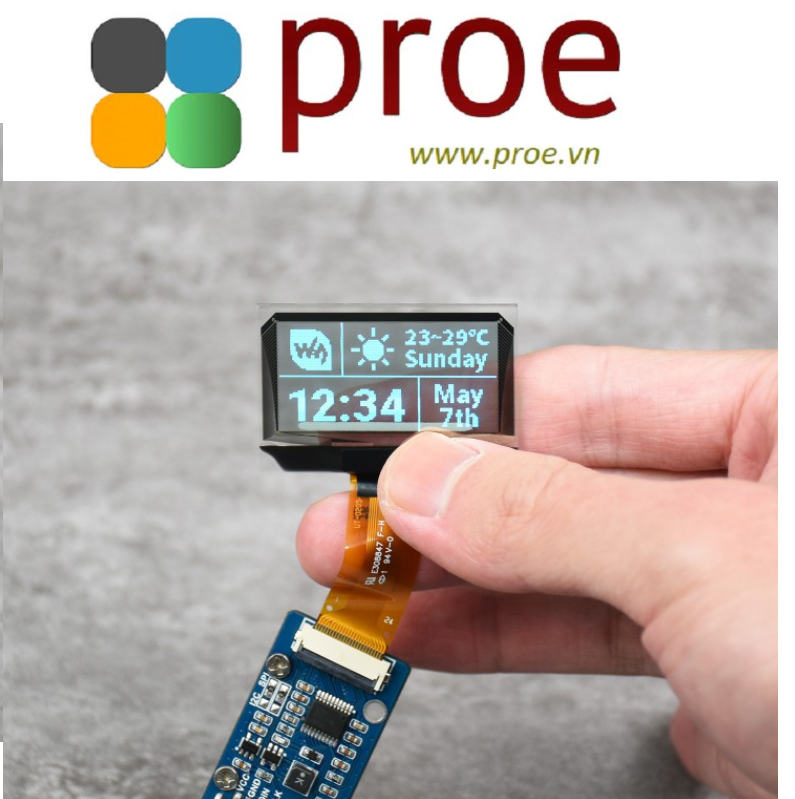

1.51inch Transparent OLED, 128×64 Resolution, SPI/I2C Interfaces, Light Blue Color Display

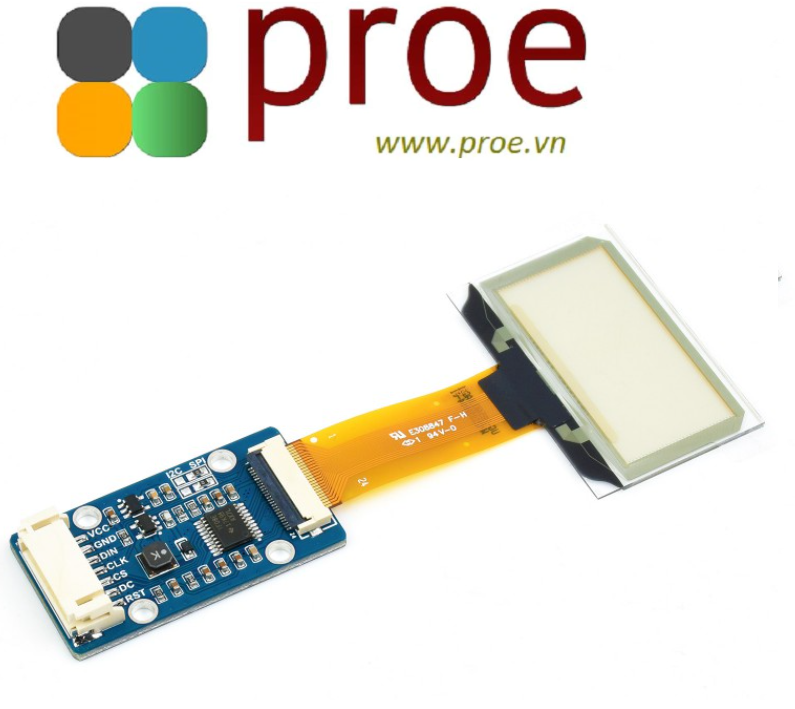

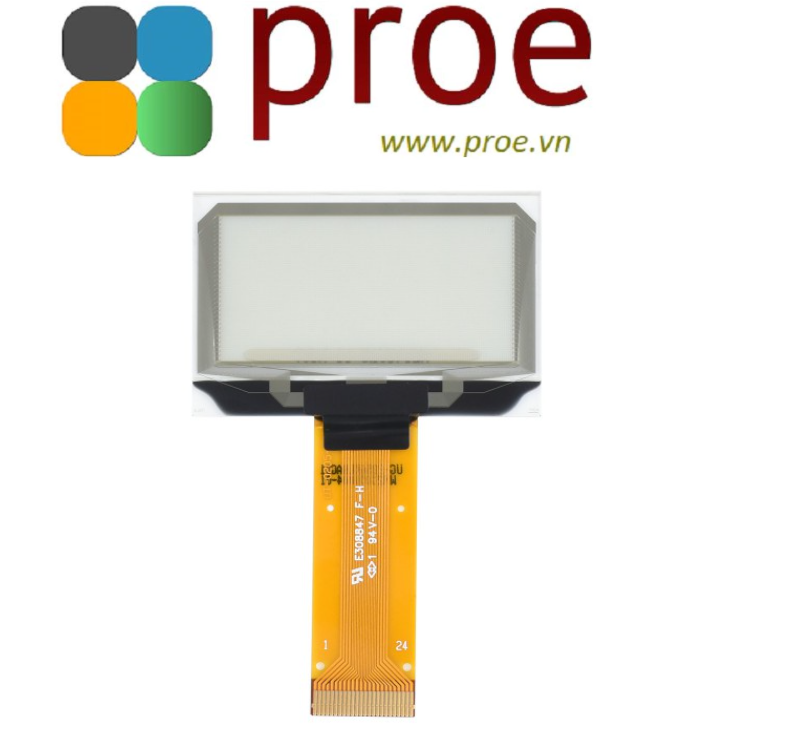

1.51inch Transparent OLED
Embedded Independent Driver Chip, Using SPI/I2C Interfaces
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Features At A Glance
Specifications

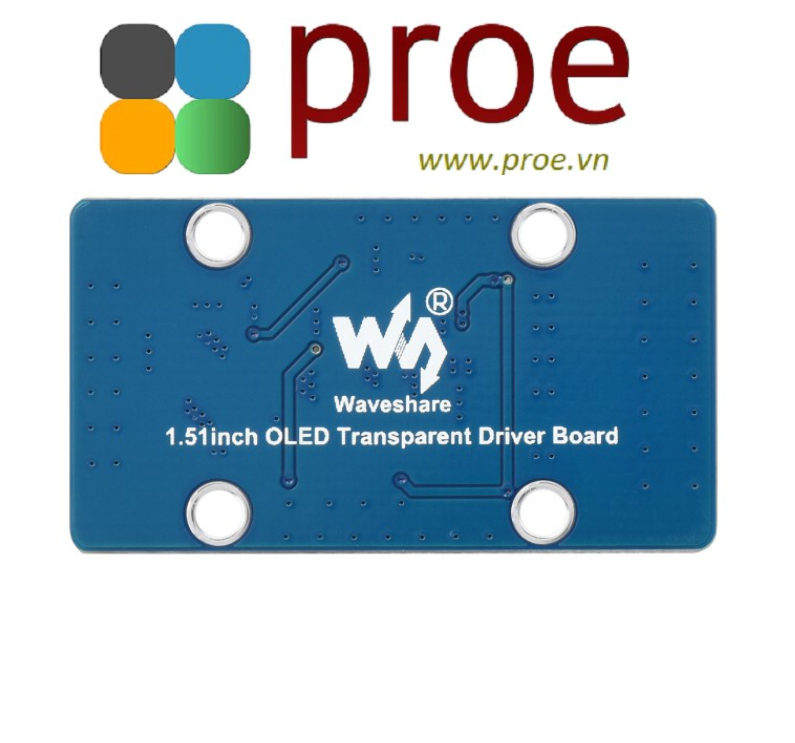

OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 128 × 64 pixels* |
---|---|---|---|
PIXEL PITCH | 0.274 × 0.274mm | MODULE SIZE | 42.04 × 27.22mm |
COMMUNICATION INTERFACE | 4-wire SPI/I2C | DISPLAY SIZE | 35.05 × 15.32 mm |
DISPLAY PANEL | OLED | PIXEL SIZE | 0.254 × 0.254 mm |
DRIVER | Embedded driver | DRIVER BOARD SIZE | 41 × 22.5 mm |
* there is a non-transparent white area on the side of the cable, but it can be displayed
SPI And I2C Control Interface Switching
Supports Controller Boards Like Raspberry Pi/Arduino/STM32

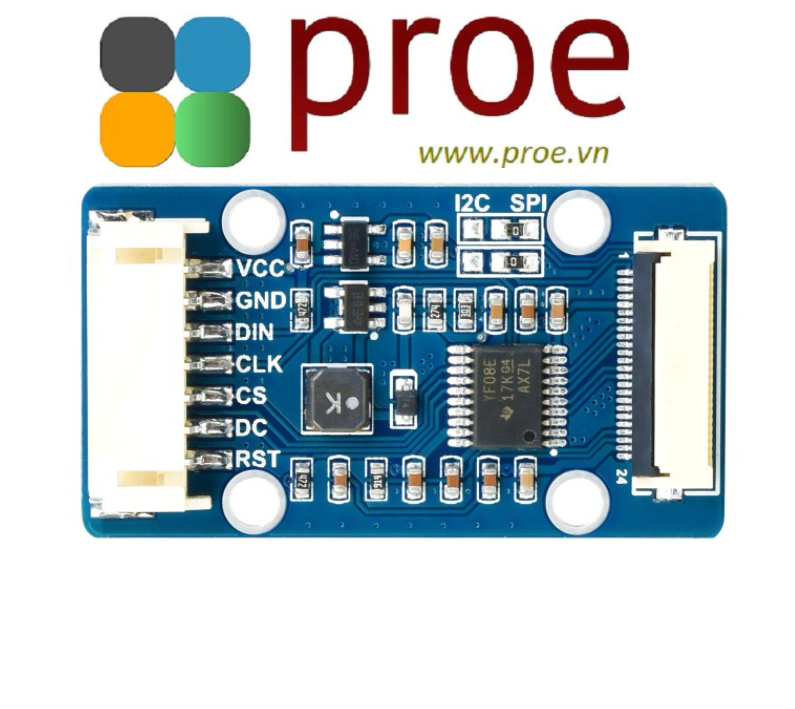

VCC | Power (3.3V / 5V input) |
---|---|
GND | Ground |
DIN | SPI / I2C data input |
CLK | SPI / I2CI clock input |
CS | Chip selection, low active |
DC | Data/Command selection (high for data, low for command) |
RST | Reset, low active |
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
Usage Example
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/1.51inch_Transparent_OLED
