1.46inch Touch LCD Module
- Mã sản phẩm: 34955
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
950.000₫
1.46inch Touch LCD Display Module, 412 × 412 Resolution, 16.7M color, QSPI and I2C communication interfaces, built-in SPD2010 driver chip
Wiki: docs.waveshare.com/1.46inch_Touch_LCD_Module
- 1.46inch Touch LCD Module x1
- GH1.25 15PIN cable x1
- FFC 18PIN 0.5mm pitch cable 200mm (same direction) x1
1
2
3
1.46inch Touch LCD Display Module
Built-in SPD2010 display and touch controller chip, supporting QSPI
and I2C communication interfaces
Comes with examples for Raspberry Pi, ESP32-S3, Pico, Arduino, STM32, etc.
- Size
1.46"
- Resolution
412 × 412
- Display Color
16.7M
- Display Panel
IPS
- Display & Touch IC
SPD2010
- Display Interface
QSPI
- Touch Interface
I2C
Features
- 412 × 412 resolution, 16.7M colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime
- Built-in SPD2010 display and touch controller chip, using QSPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / Raspberry Pi Pico / ESP32-S3 / Arduino / STM32
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino / STM32)
Specifications
| Driver IC | SPD2010 | ||
|---|---|---|---|
| Operating voltage | 3.3V / 5V | Resolution | 412 × 412 pixels |
| Display Interface | QSPI | Touch Interface | I2C |
| DISPLAY PANEL | IPS | Touch Type | Capacitive touch |
| Display size | 36.96 × 36.96 (mm) | Brightness | 450 cd/㎡ |
| Module size | 44.77 × 44.77 (mm) | ||

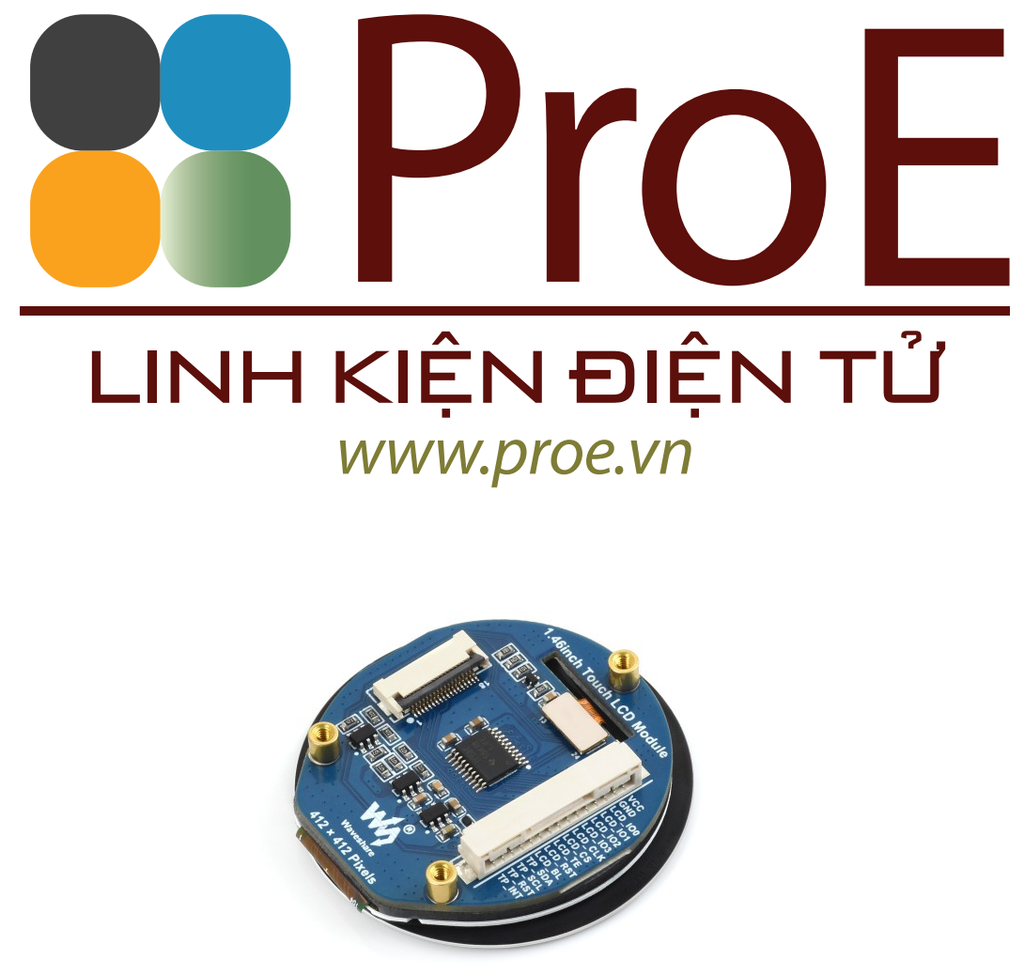

Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input
QSPI and I2C Control Interfaces
Options For 15PIN Connector Or 18PIN FPC Slot For Connecting
The LCD To The Host Board
| PIN | Description | 15PIN Pin No. | 18PIN Pin No. |
|---|---|---|---|
| VCC | Power (3.3V / 5V input) | 1 | 1 |
| GND | Ground | 2 | 3 |
| LCD_IO0 | QSPI data pin 0 | 3 | 5 |
| LCD_IO1 | QSPI data pin 1 | 4 | 6 |
| LCD_IO2 | QSPI data pin 2 | 5 | 7 |
| LCD_IO3 | QSPI data pin 3 | 6 | 11 |
| LCD_SCLK | QSPI clock pin | 7 | 4 |
| LCD_CS | LCD chip selection, low active | 8 | 9 |
| LCD_TE | LCD tearing effect synchronization signal | 9 | 10 |
| LCD_RST | LCD reset pin, low active | 10 | 8 |
| LCD_BL | LCD backlight pin | 11 | 2 |
| TP_SDA | Touch panel data pin | 12 | 14 |
| TP_SCL | Touch panel clock pin | 13 | 13 |
| TP_RST | Touch panel reset pin, low active | 14 | 12 |
| TP_INT | Touch panel interrupt pin | 15 | 15 |
Usage Examples
Connecting with ESP32-S3-DEV-KIT
Connecting with ESP32-S3-LCD-Driver-Board
* for reference only, please refer to the package content for the detailed part list.
Outline dimensions
