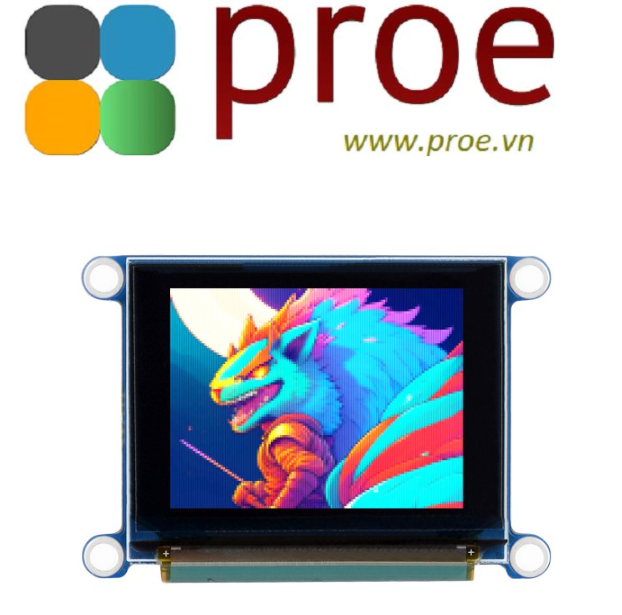

1.27inch RGB OLED Module

PACKAGE CONTENT

Weight: 0.011 kg

1. 1.27inch RGB OLED Module x1
2. GH1.25 7PIN cable x1

1

2

1.27inch RGB OLED Display Module, 128×96 Resolution, 262K Colors, SPI Interface

1.27inch OLED Display Module

Embedded SSD1351 Driver Chip, SPI Communication

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

• Size1.27"
•
• Resolution128×96
•
• RGB Backlight262K Colors


• InterfaceSPI
•
• Display PanelOLED
•
• DriverSSD1351

Features At A Glance

• 128×96 resolution OLED display, 262K colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins
• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

Control Interface

Hardware Connection

Connecting With Raspberry Pi

Connecting With Arduino Board

Usage Example

for reference only, the STM32 board is NOT included.

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/1.27inch_RGB_OLED_Module
