0.96inch Transparent OLED Display Module, 128 × 64 Resolution, SPI/I2C Interface, SSD1312 Driver IC
- Mã sản phẩm: 0.96inch Transparent OLED SKU 33163
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
490.000₫
Weight: 0.004 kg
0.96inch Transparent OLED x1
0.96inch Transparent OLED Display Module, 128 × 64 Resolution, SPI/I2C Interface, SSD1312 Driver IC

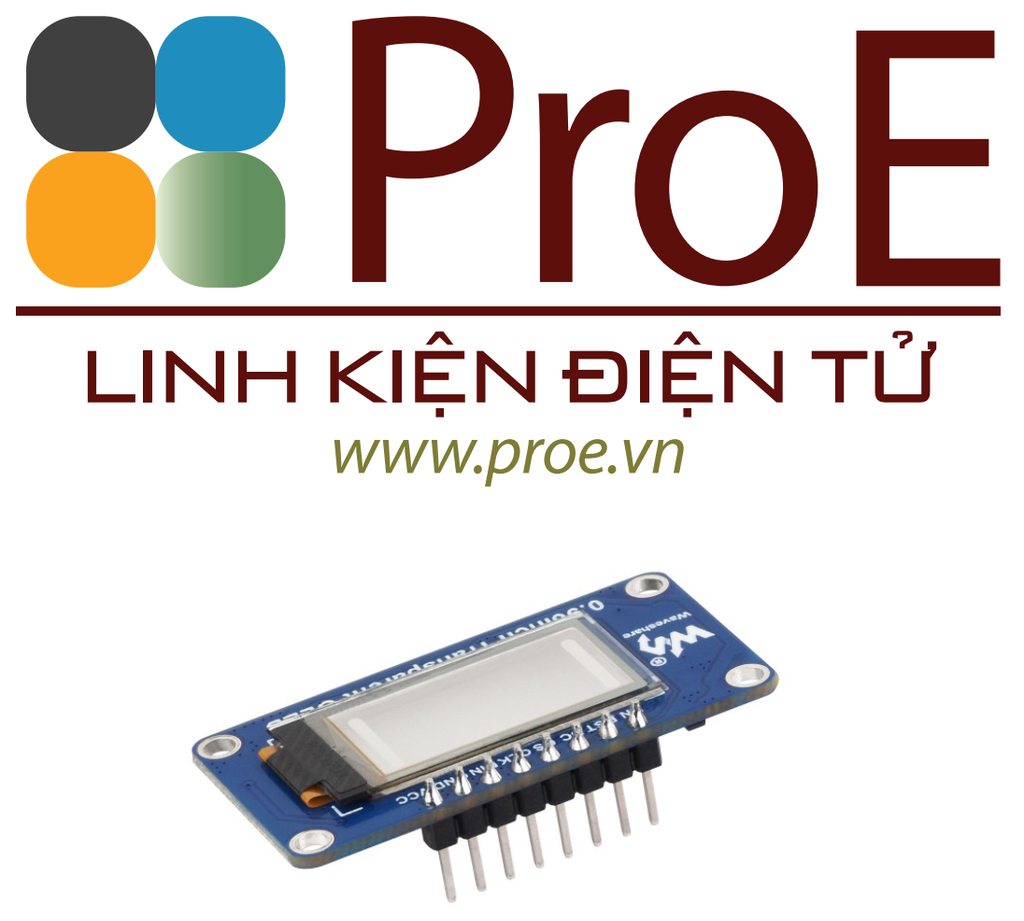

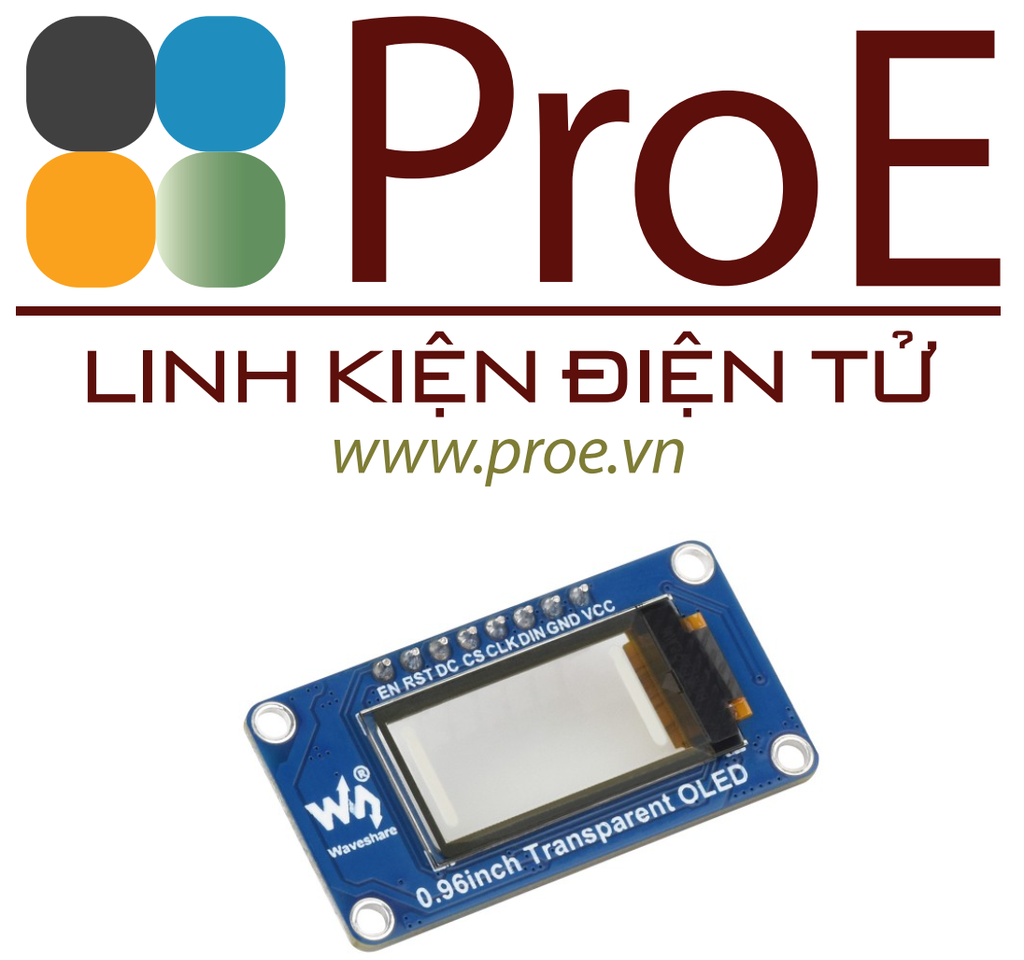

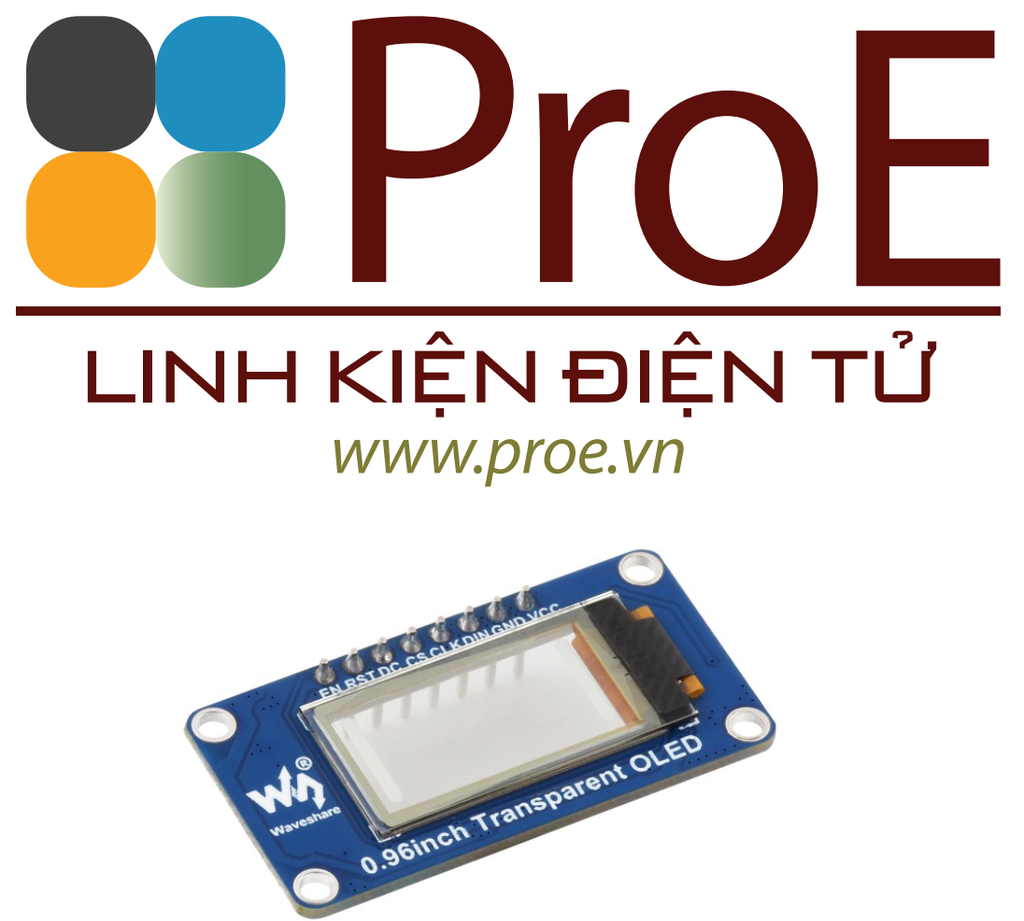

0.96inch Transparent OLED Display Module
Built-in SSD1312 Driver IC, with SPI / I2C communication Interface
Comes with examples for Raspberry Pi, ESP32, STM32, etc.
- Size
0.96" - Resolution
128 × 64 - Display Color
White on Black
- Interface
SPI/I2C - Display Panel
OLED - Driver
SSD1312
Features
- 0.96inch transparent OLED display module with an SSD1312 driver IC

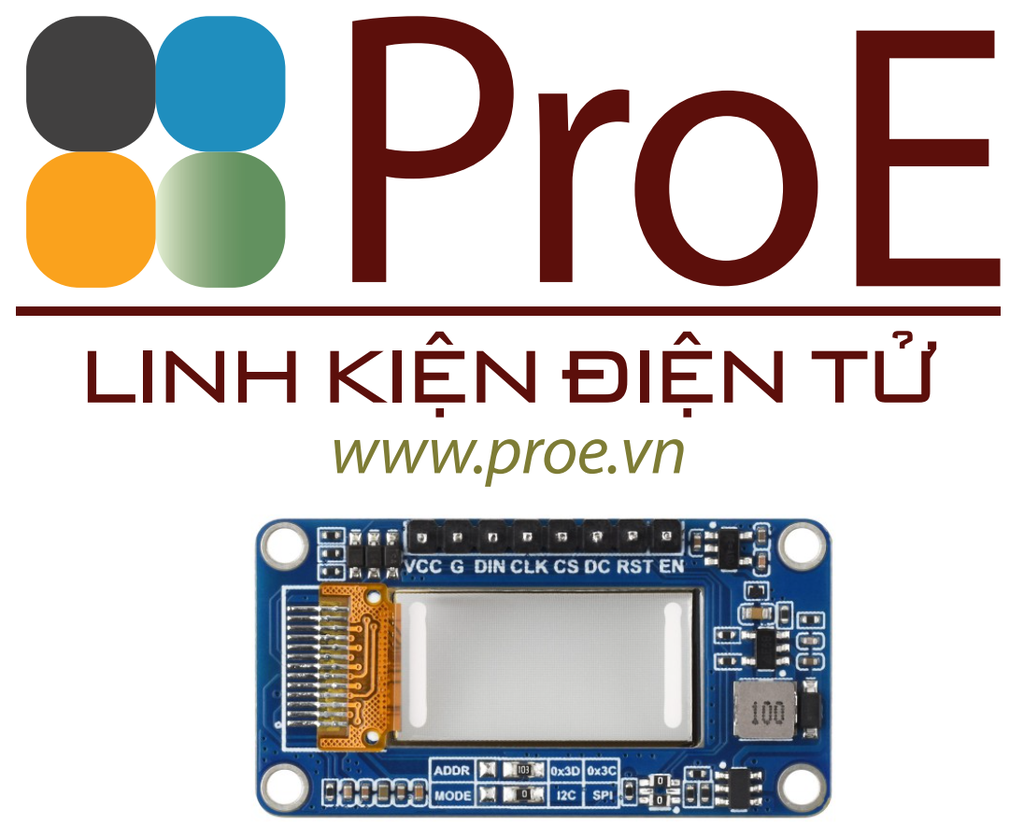

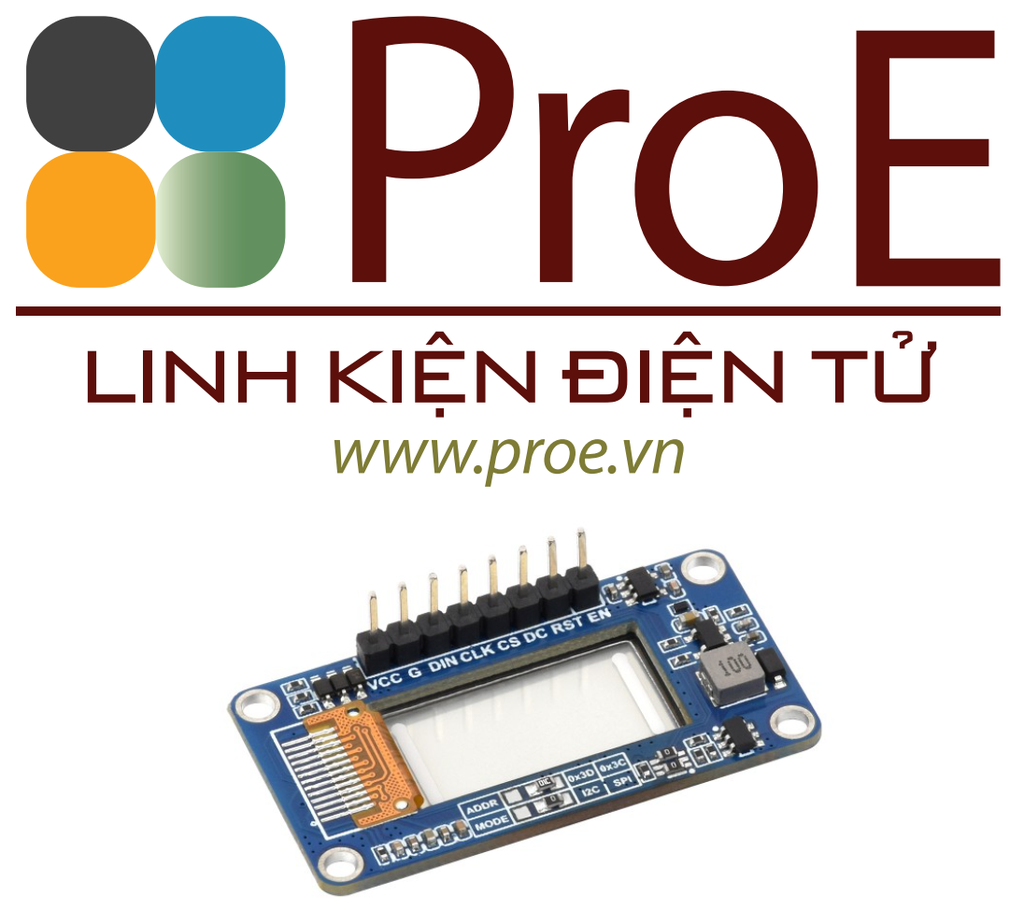

- Uses 4-wire SPI communication by default and can be switched to I2C communication via resoldering an onboard resistor, offering good compatibility and fast data transmission
- Comes with examples for Raspberry Pi, ESP32 and STM32, supporting text, graphics, and BMP images display for a quick start and further development
Specifications
| Operating voltage | 3.3V | Display panel | OLED |
|---|---|---|---|
| Resolution | 128 × 64 pixels | Pixel size | 0.15 × 0.15mm |
| Communication interface | 4-wire SPI (by default) / I2C (selectable via resoldering an onboard resistor) |
Driver IC | SSD1312 |
| Display size | 10.86 × 21.74mm | Outline dimensions | 22.00 × 42.35mm |
| Display color | White | ||
* There are non-transparent white areas on both sides of the screen as shown, but they do not affect the display.

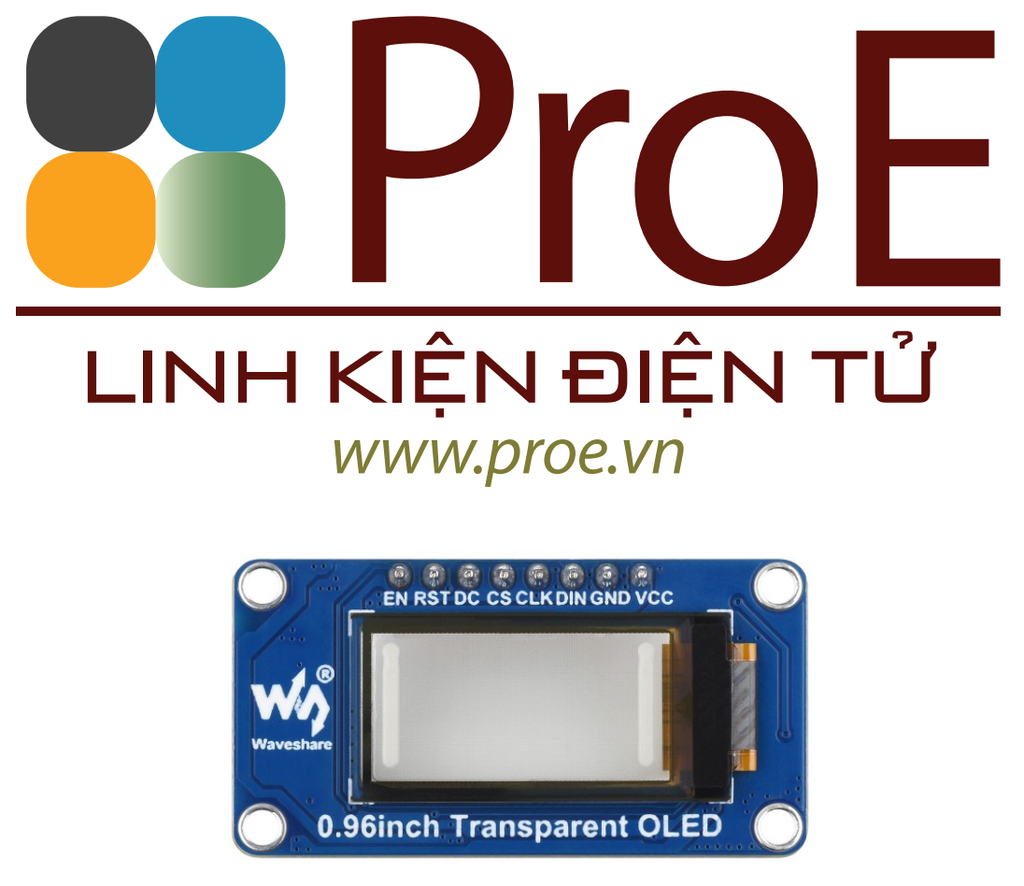

Control Interface
| VCC | Power (3.3V input) |
|---|---|
| GND | Ground |
| DIN | Data input |
| CLK | Clock signal input |
| CS | Chip select (low active) |
| DC | Data/command selection: low for command, high for data |
| RST | Reset (low active) |
| EN | Power enable, on by default |
Hardware connection
Connecting to ESP32-S3 board via SPI
Connecting to RP2350 Plus board via SPI

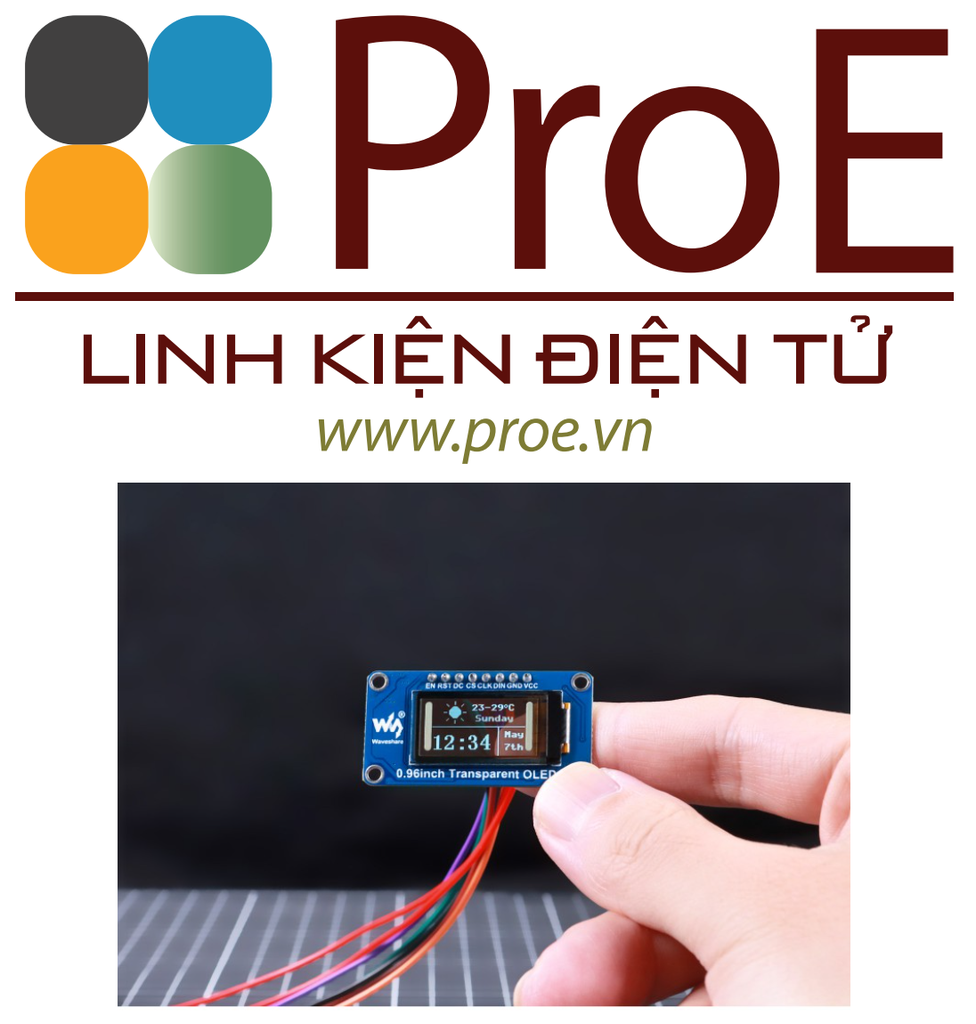

Product Showcase
Outline dimensions
