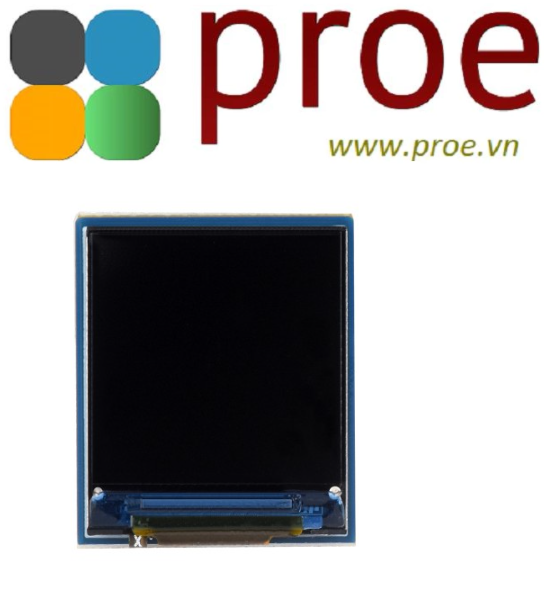

0.85inch LCD Module

0.85inch LCD Display Module, IPS Panel, 128×128 Resolution, SPI Interface, 65K Colors

PACKAGE CONTENT

Weight: 0.013 kg

1. 0.85inch LCD Module x1
2. GH1.25 8PIN cable x1

1

2

0.85inch LCD Display Module

Embedded GC9107 Driver, Using SPI Bus

Comes with examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series

• Size0.85"
•
• Resolution128×128
•
• Display Color65K RGB
•
• InterfaceSPI
•
• DriverGC9107

Features At A Glance

• 128×128 resolution, 65K RGB colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)

Specifications

Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson Series

Hardware Connection

Connecting With Raspberry Pi

Connecting With Arduino Board

Connecting With STM32

Usage Example

* for reference only, please refer to the Package Content for the detailed part list.

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/0.85inch_LCD_Module
