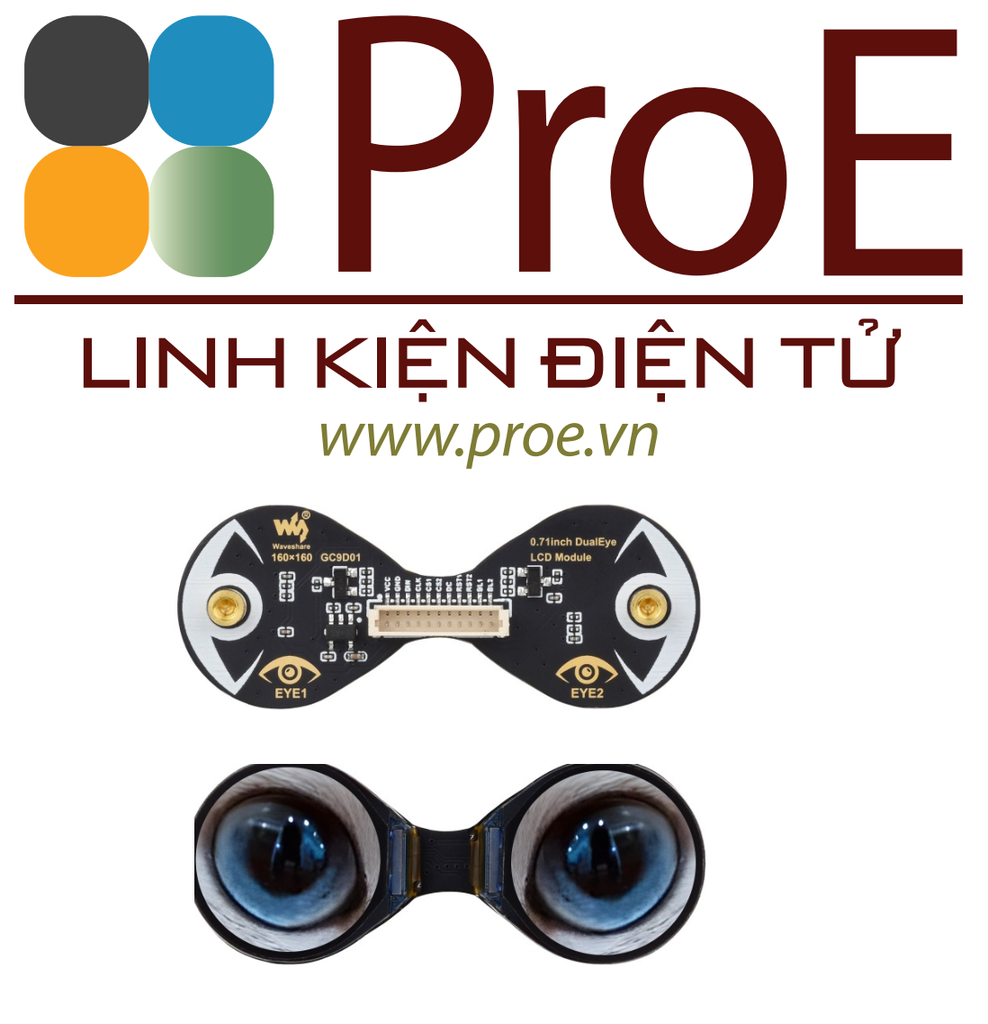

0.71inch DualEye LCD Module

Package Content

Weight: 0.011 kg

1. 0.71inch DualEye LCD Module x1
2. SH1.0 11PIN cable x1
3. Convex lens (2pcs) x1

1

2

3

0.71inch Double Eye Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K Colors

0.71inch Double Eye LCD Module

IPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI Bus

• Size0.71"
•
• Resolution160×160
•
• Display Color65K colors


• Display PanelIPS
•
• InterfaceSPI
•
• DriverGC9D01

Features at a glance

• The double eye LCD module consists of two 0.71inch round LCD displays, IPS panel, wide viewing angle
• 160×160 resolution, 65K colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like ESP32 / Arduino

Specifications

Controlled via SPI Bus

supports controller boards like ESP32 / Arduino

usage example

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/0.71inch_DualEye_LCD_Module
