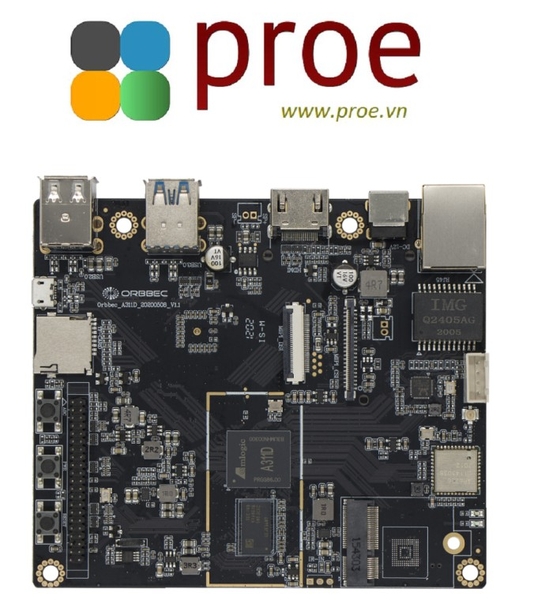

Product Description
Welcome to the future of embedded single board computers. The new Zora is ready for deployment into demanding industrial applications requiring rugged and long lasting solutions. These boards are specifically designed to work in tandem with Orbbec 3D Cameras and each provides a multitude of different options in order to give you the best development board for your projects needs. Orbbec designed these boards with plenty of industry connectors, interfaces, and preloaded preferred operating system for fast and easy use. Order the Zora now and get your product through development faster.
Orbbec development boards are the ideal platform for accelerating the development and reducing the risk of new designs. These new boards provide an optimal solution in terms of speed, accuracy, flexibility and cost. The all pervasive IoT is today being used for home automation, manufacturing, agriculture, and medical care among other things, the possibilities are endless when it comes to project ideas.
Product Name |
Zora P1 |
Processor |
Amlogic A311D Quad Core A73+ Dual Core A53 with NPU |
Ram |
4GB DDR4 |
Dimensions |
100mm x 116mm |
Storage |
Swappable EMMC module: 16GB, 32GB, 64GB |
Expandable Storage |
MicroSD |
MIPI-CSI & MIPI-DSI |
Supported |
USB |
2xUSB 3.0 + 2xUSB 2.0 + 1USB XHCI OTG 2.0 |
HDMI |
HDMI 2.1 |
WIFI & Blue Tooth |
802.11a/b/g/n/ac, 2x2 MIMO, Bluetooth 5.0 |
Ethernet |
RJ45 Gigabit |
Microphone |
On-board |
Buttons |
Power, Reset, ADC, Update |
Antenna |
Swappable IPEX Wifi + Bluetooth Antenna |
LED |
Power status indicator |
GPIO |
42 Pin |
DC-IN |
12V 2.1mm |
Operating Systems |
Android; Ubuntu 18.04 |
Upgrade Mode |
By replacing the EMMC module or USB upgrade |
POE |
Expandable Future Option |
Metal Enclosure |
Expandable Future Option |
Metal Backing Unit |
Expandable Future Option |
