Zero-DISP-7A

PACKAGE CONTENT

Weight: 0.227 kg

1. Zero-DISP-7A ×1
2. Button board ×1
3. Button board cable ~9cm ×1
4. White nylon spacer (4PCS) ×1

1

2

3

4

7″ Touch Display Kit For Raspberry Pi Zero, With IPS Display Expansion Board, 1024×600, 5-Point Capacitive Touch

7″ Touch Display Kit

Based On Raspberry Pi Zero

Designed For Raspberry Pi Zero Series

Specially Designed Connectors for Pi Zero, Easy to Build All-in-one Mini Computer

* for reference only, the Raspberry Pi Zero is NOT included.

Specifications

7inch High Resolution Display

Onboard 7″ 1024 × 600 Pixels Display, For Clearer Details

IPS Diaplay Panel

170° Viewing Angle, Fast Response, Precise And Natural Color
No Ripples On Touch, Better Touch Experience

5-Point Capacitive Touch

7inch Capacitive Touch Screen, Supports 5-Point Touch*
Making Human-Computer Interaction More Convenient

* the actual number of touch points depends on the software and system

Interface Introduction

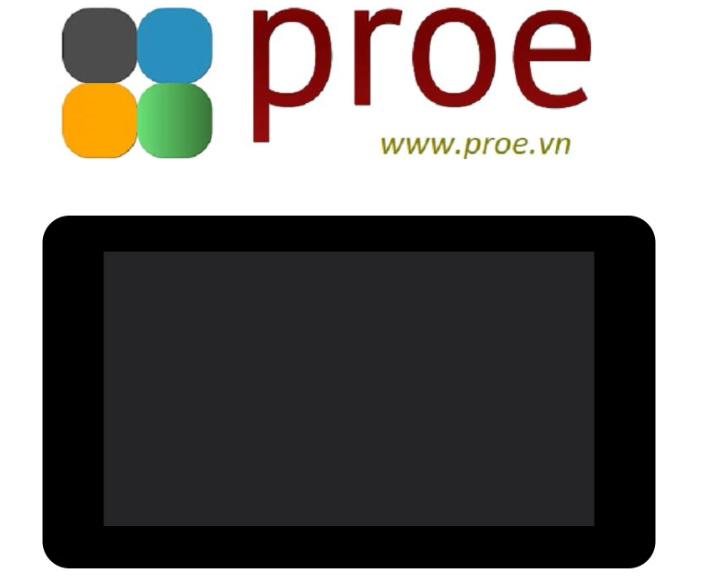

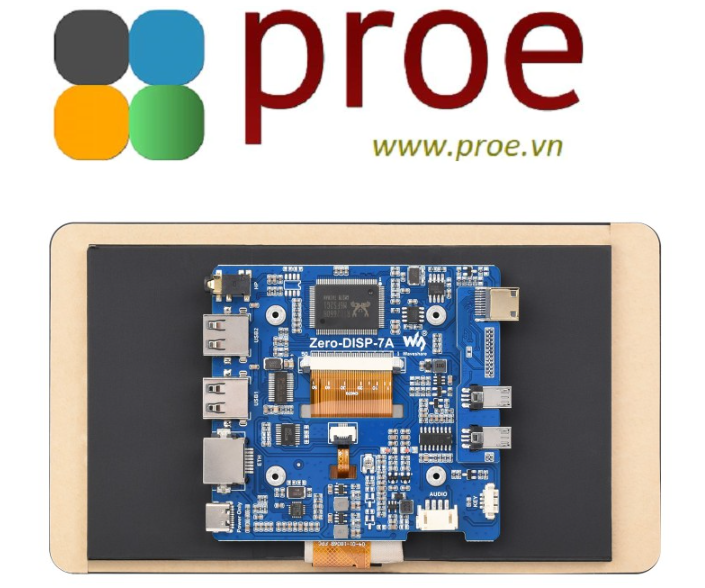

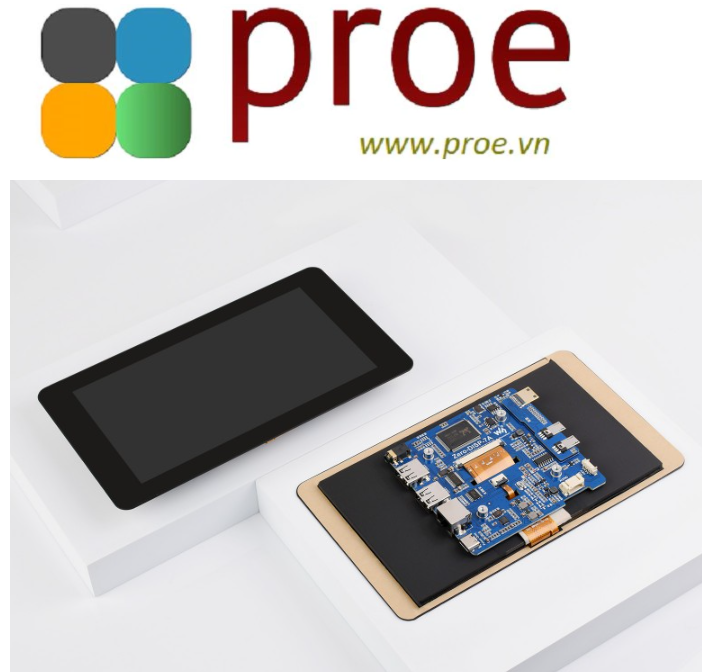

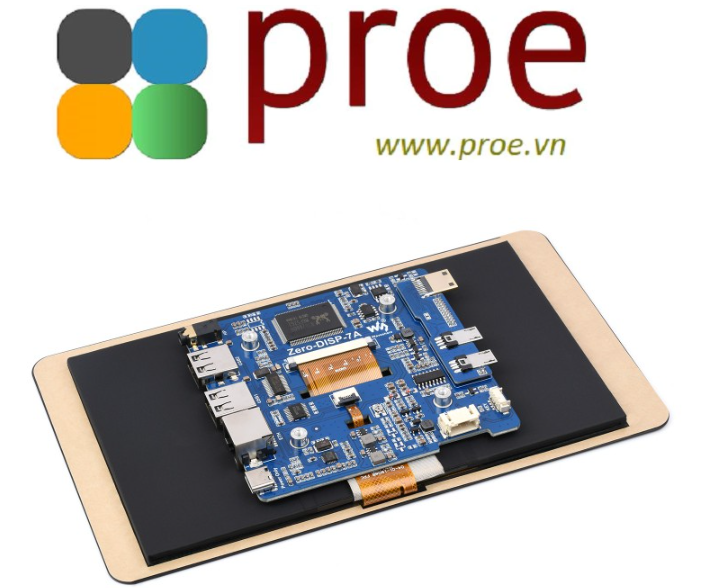

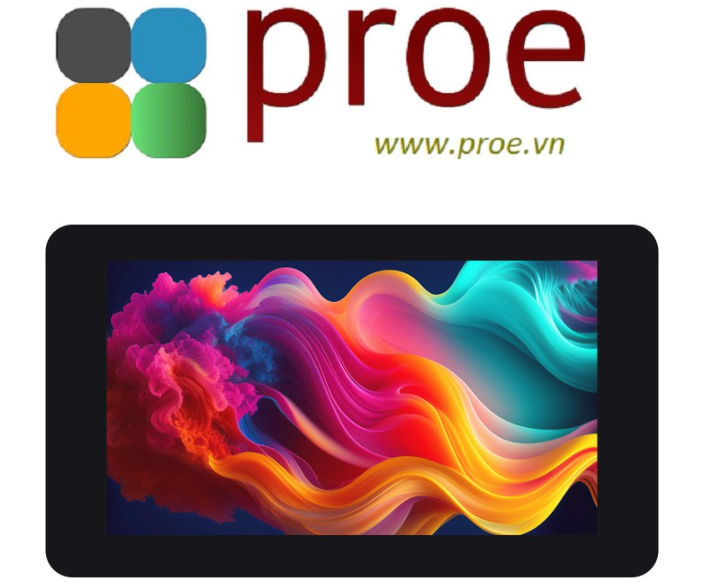

Product Show

Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/Zero-DISP-7A
