Multi-Camera GMSL2 Capture for Full Surround Perception. Seamlessly integrate up to eight ZED X cameras into your edge AI platform.

The ZED Link Capture Card Quad delivers eight GMSL2 channels for multi-camera vision systems on NVIDIA Jetson Orin platforms.

Key Features

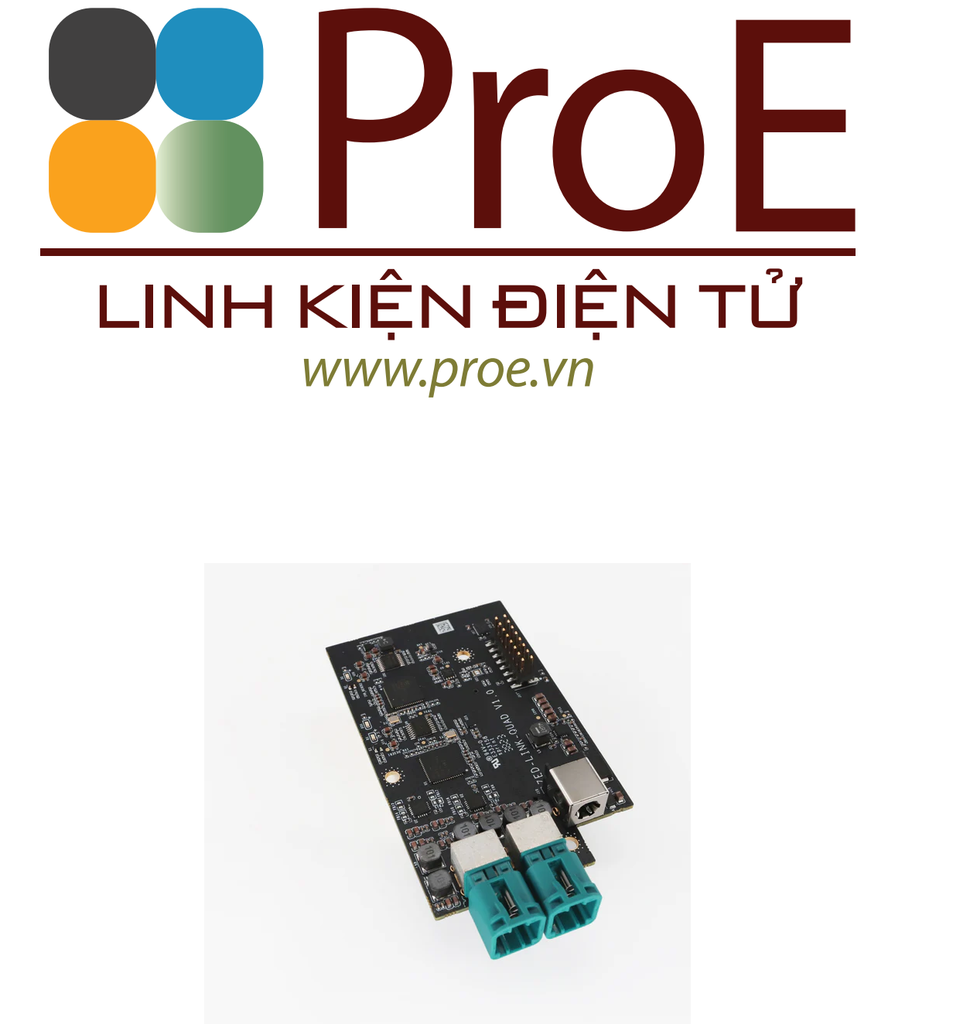

  • Four Fakra GMSL2 connectors for synchronized capture of up to 8 video streams.
  • Engineered for surround perception, obstacle detection, and 3D mapping.
  • Industrial-grade design with ultra-low latency performance.
  • Compatible with NVIDIA® Jetson AGX Orin and Xavier AGX development kits.
  • Perfect for building advanced 360° perception systems in robotics, autonomous machines, and smart analytics applications.

Product Features

  • High performance capture card for Jetson.
  • Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
  • Requires external 12-19V power supply.
  • View Cable Guide

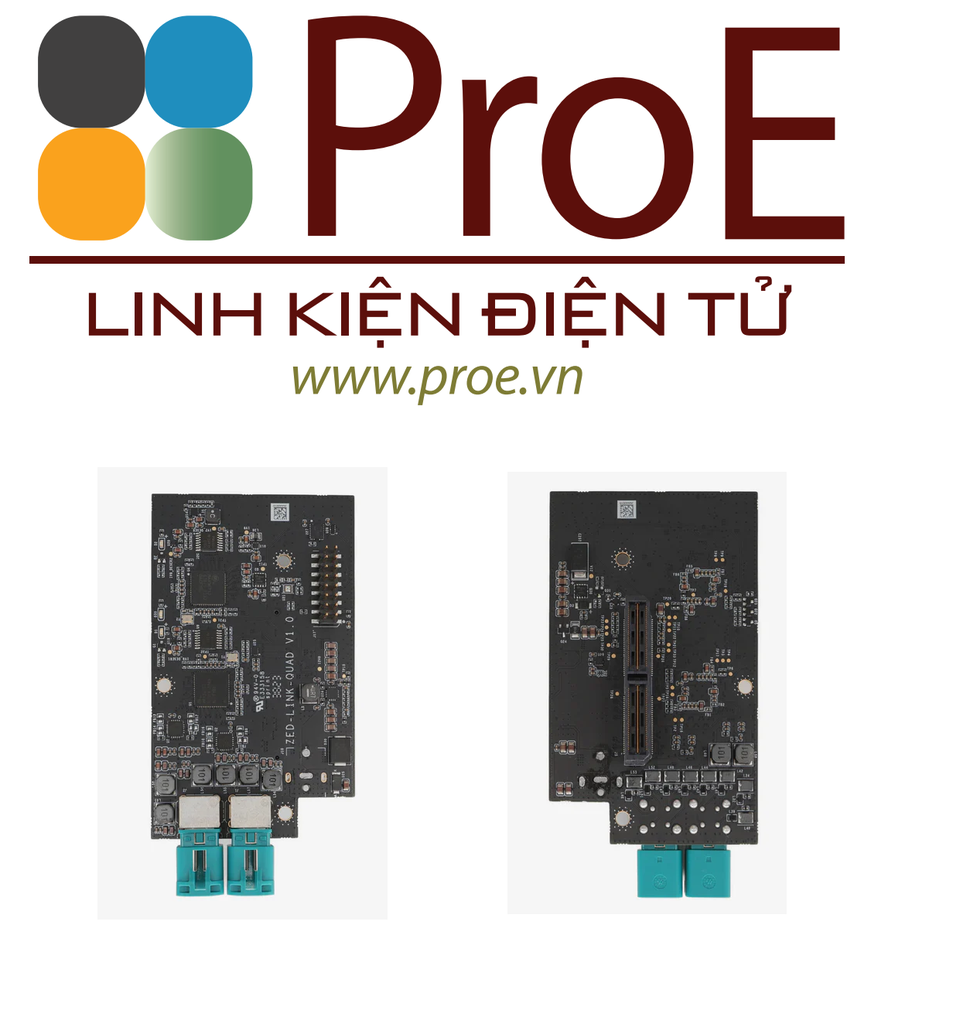

Quad Capture Card

  • Capture 8** x GMSL2 camera inputs in SD/HD/4K up to 4K@30.\
  • Up to 40Gb/s total bandwidth.

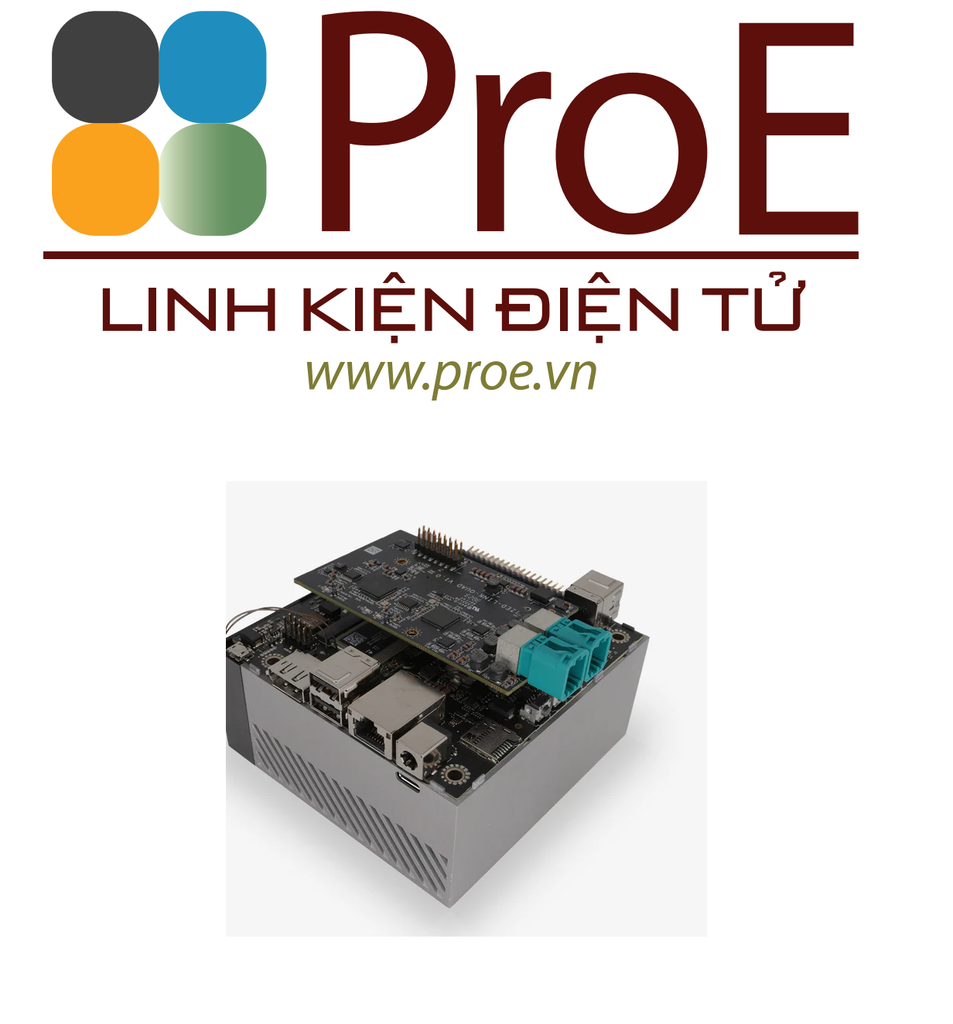

  • Connects to the SAMTEC CSI port of Jetson Orin/Xavier AGX.

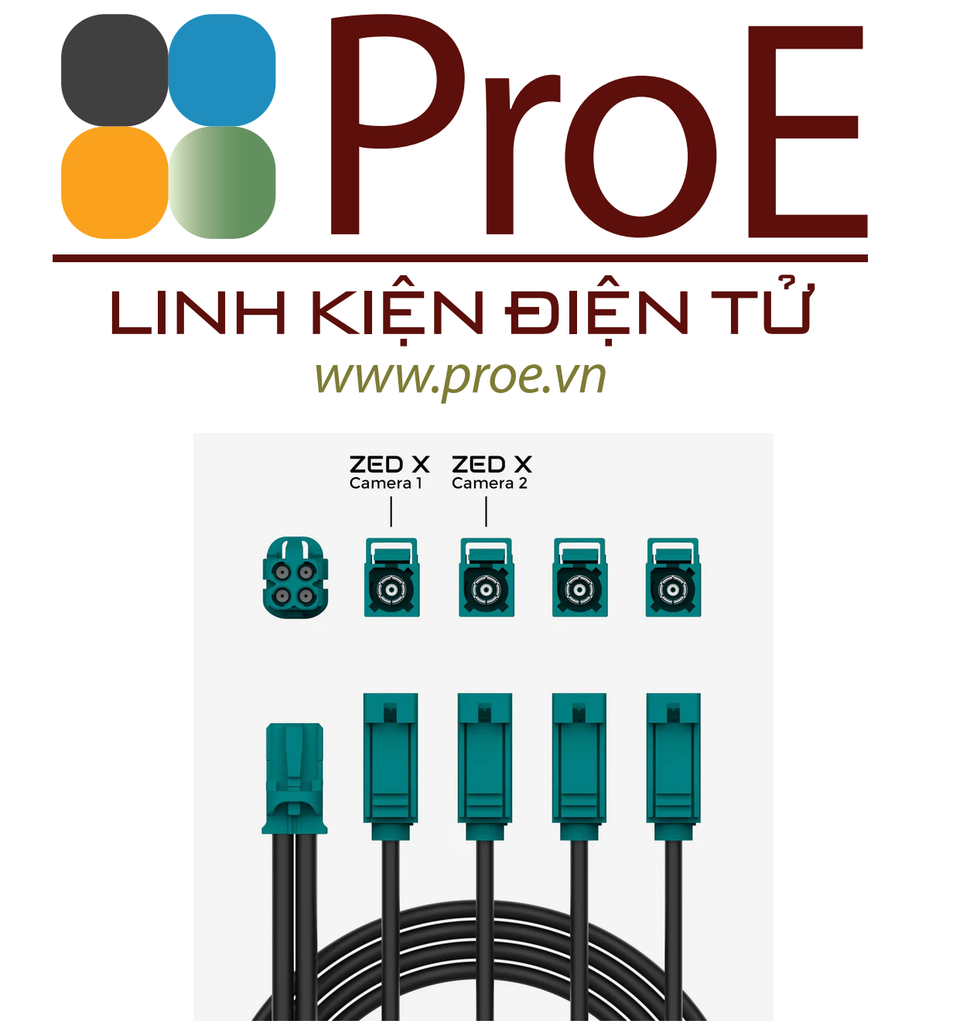

  • Includes two 0.3m (0.98ft) 1-to-4 GMSL2 M-F cables.

    ** The ZED Link Quad is limited to only 4x ZED X One 4k inputs, 2 per GMSL port,
    8x inputs are compatible with all other camera models.

  • 1x GMSL2 Capture Card Quad
  • 2x GMSL2 1-to-4 M-F cable 0.5m
  • 1x JST to jack connector
