Single-Camera GMSL2 Capture for Jetson Orin Bring industrial-grade stereo vision to your edge AI projects with a compact, mono-channel interface.

The ZED Link Mono Capture Card provides a dedicated GMSL2 connection for one ZED X or ZED X One camera on NVIDIA Jetson Orin and Xavier platforms.

Key Features

  • Single high-speed GMSL2 input with Fakra connector
  • Ultra-low latency video capture for robotics and machine vision
  • Compatible with NVIDIA® Jetson Orin Nano and Xavier NX development kits and ZED SDK
  • Compact form factor ideal for embedded integration
  • Perfect for projects requiring a streamlined single-camera connection with industrial reliability.

Product Features

  • High performance capture card for Jetson.
  • Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
  • Requires external 12-19V power supply.
  • View Cable Guide

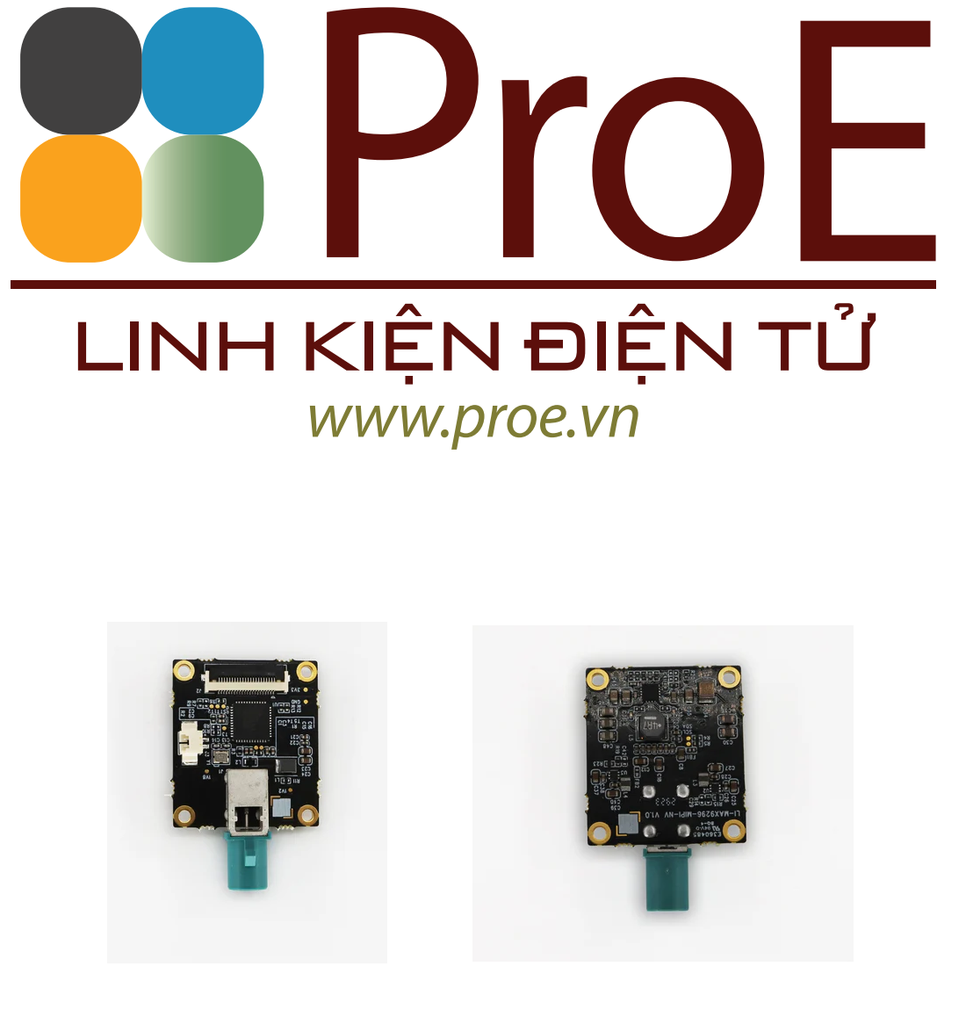

Mono Capture Card

  • Capture 1x GMSL2 camera input in SD/HD/4K up to 4K@30.
  • Up to 6Gb/s total bandwidth.

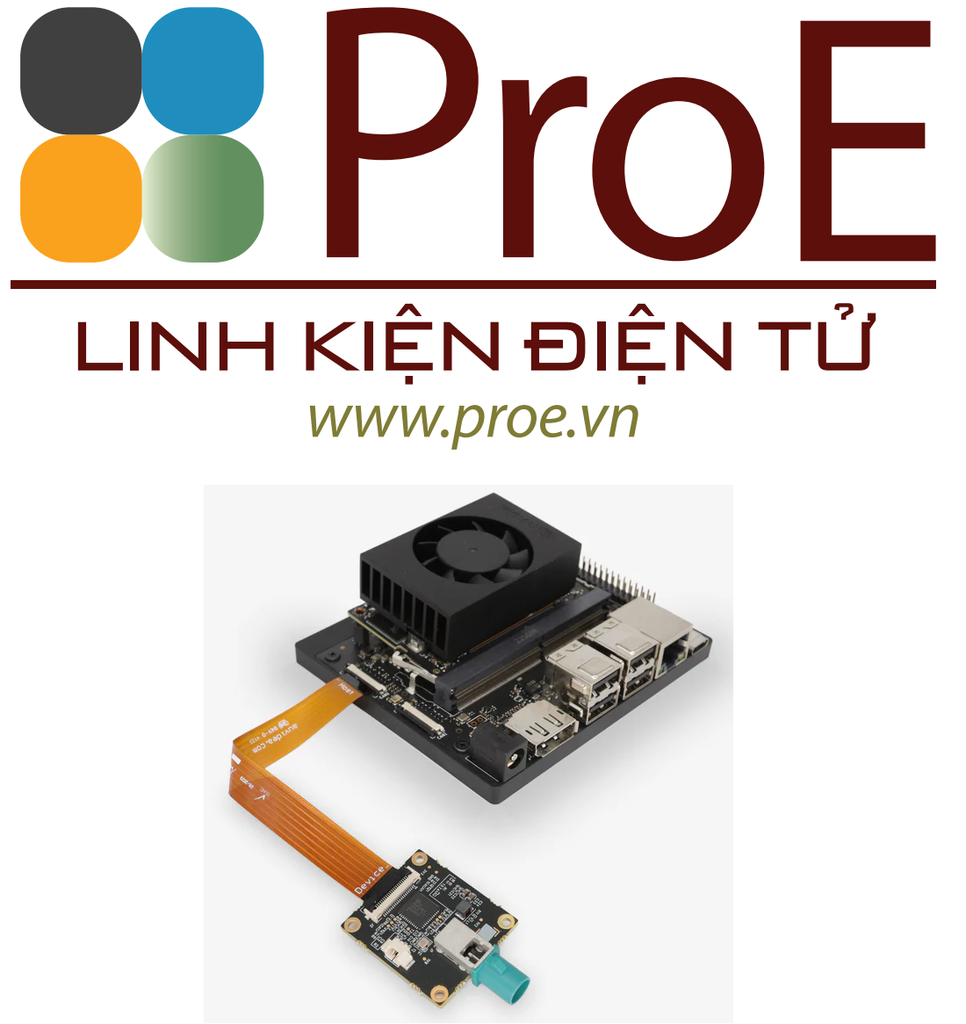

  • Connects to the CSI port of the carrier board through a 22pin 0.5mm pitch connector.
  • Includes JST to jack connector and CSI cable.

  • 1x GMSL2 Capture Card Mono
  • 1x JST to jack connector
  • 1x CSI 22pin 0.5mm FFC cable (OP)
