ZED Box NVIDIA® Jetson Xavier™ NX 8GB

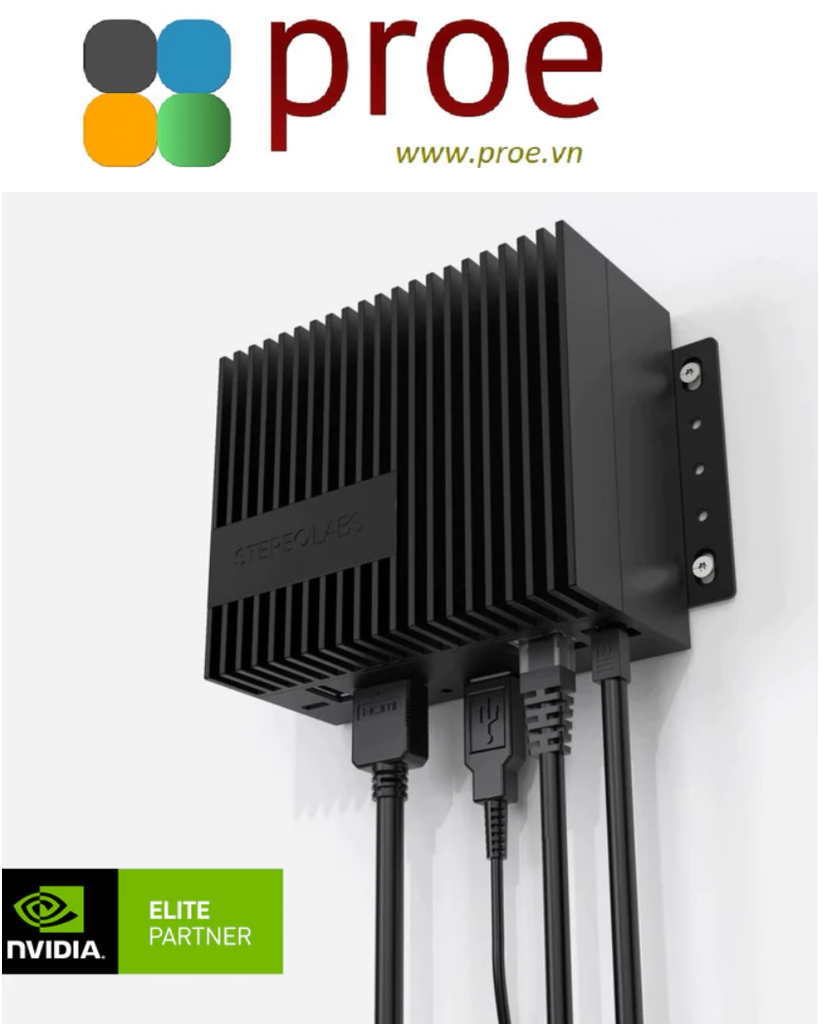

The Stereolabs ZED Box is an industrial AI gateway offering powerful edge computing capabilities for autonomous robotics and spatial analytics. Specifically designed to use with the ZED-2 and ZED-2i cameras, it is powered by an NVIDIA® Jetson™ embedded GPU, enabling deployment of state-of-the art AI and 3D vision solutions.

General Specifications

- Power: PoE+(30W) or DC-IN 5A 12-19V
- NVIDIA® Jetson™ Power mode: 10W | 15W
- Aluminium case passively cooled
- Dimensions: 109 x 92 x 52 mm (LxWxH) / 4.3 x 3.6 x 2.0 inches
- Mounting options: 84x45mm mounting holes, wall (brackets provided) and DIN-rail mounting
- Weight: 1 kg (2.20lb)

NVIDIA® Jetson Xavier™ NX 8GB  Specifications

- NVIDIA® Jetson™ Xavier NX
- GPU: 384-Core NVIDIA® Volta™ with 48 Tensor Cores
- CPU : 6-Core NVIDIA® Carmel ARM v8.2 64 bit (6MB L2 + 4MB L3)
- DL accelerator: 2xNVDLA
- Memory : 8GB  LPDDR4x 59.7 GB/s

Storage Options

- eMMC 16GB
- SSD 256GB or 1TB
