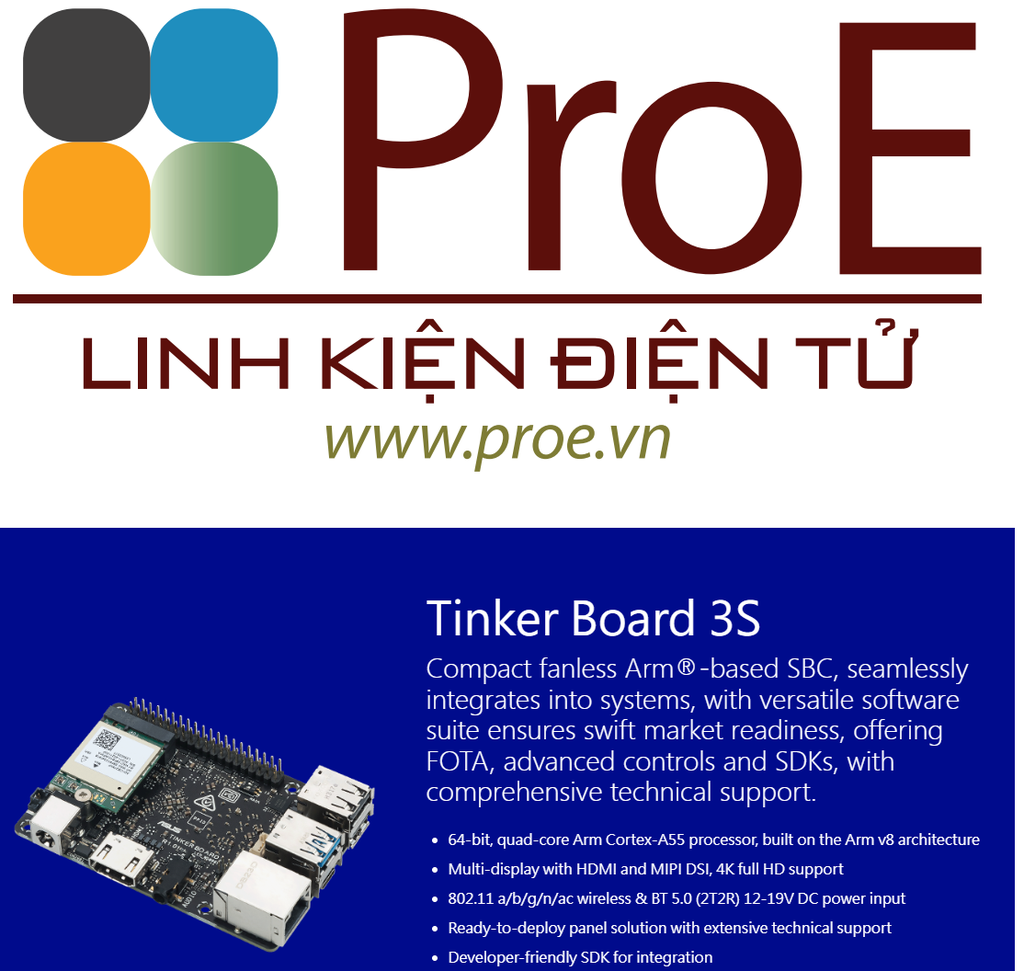

Tinker Board 3S

Elevating IoT Solutions
Innovate Smartly, Integrate Seamlessly

ASUS IoT Tinker Board 3S, powered by a 64-bit quad-core Arm® Cortex-A55 processor (Rockchip RK3566) and an Arm-based Mali™-G52 GPU, delivers exceptional graphics processing and robust data security. This compact, fanless single-board computer (SBC) is designed for seamless integration and featuring a versatile software suite for quick market deployment with support for FOTA, advanced controls and SDKs to provide complete solution for smart retail and healthcare applications. It supports IoT gateways, digital signage, self-service kiosks, medical devices and more.

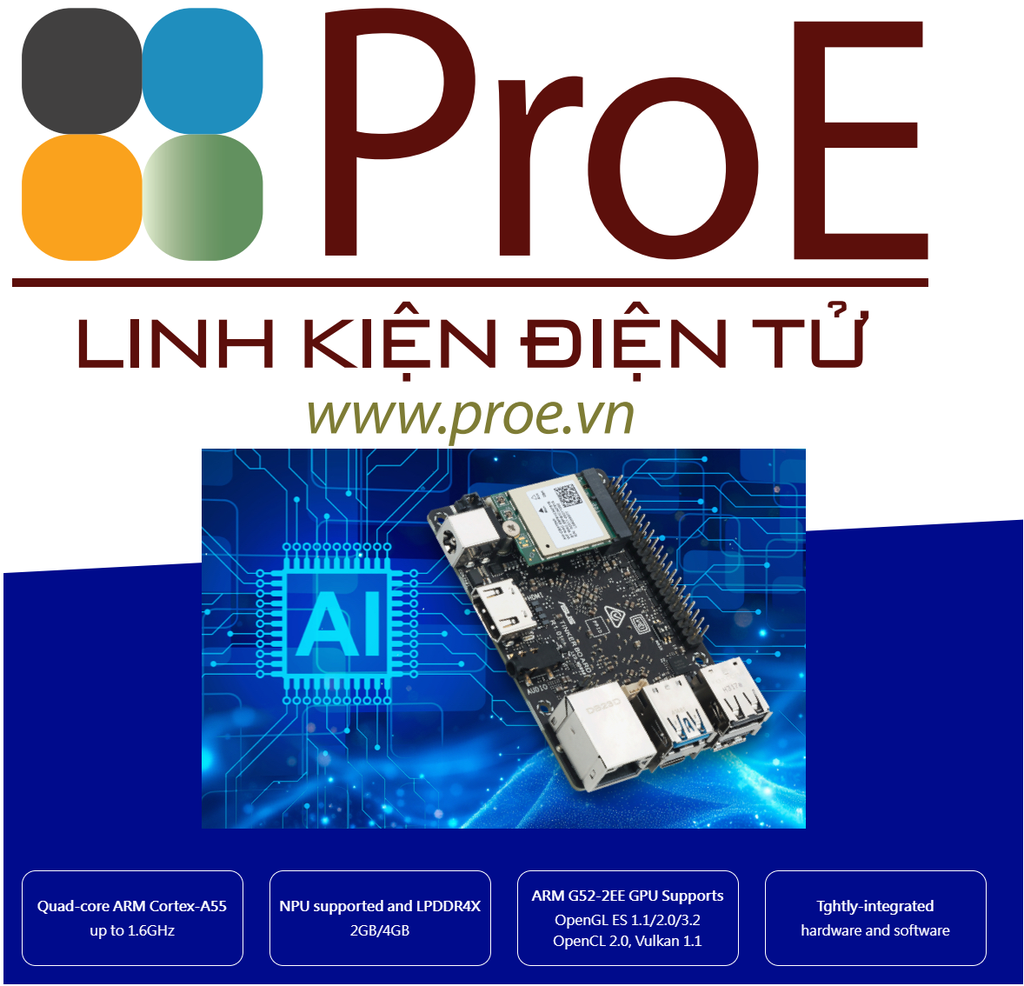

Quad-core ARM Cortex-A55

up to 1.6GHz

NPU supported and LPDDR4X

2GB/4GB

ARM G52-2EE GPU Supports

OpenGL ES 1.1/2.0/3.2
OpenCL 2.0, Vulkan 1.1

Tghtly-integrated

hardware and software

Enhanced smart retail solution
with comprehensive SDK integration

Tinker Board 3S benefits from a software development kit (SDK) that simplifies development and maintenance, reduces costs and optimizes efficiency. It includes a GPIO API, automatic power-off during idle periods, software-based USB control and OTA updates for hardware maintenance. The tight integration of ASUS hardware and software makes Tinker Board 3S ideal for smart retail solutions.

DevelopManageMaintain

• Utilize easy-to-use GPIO API for development.
• Supports kiosk mode and software development for diverse kiosk applications.

Advanced power protection and efficiency

Tinker Board 3S ensures long-term product sustainability and cost reduction through comprehensive power protection. Its 12V-19V voltage range ensures stability across diverse applications. Features include overvoltage protection (OVP), overcurrent protection (OCP), and electrostatic discharge (ESD) for extended lifespan. Smaller, faster-switching transistors promote lower power consumption, supporting broader green initiatives.

Voltage range
of 12V-19V

Safeguard device
lifespan

Greater component
longevity

Sustainability

Upgraded Connectivity and Versatility

Tinker Board 3S features extensive connectivity options for superior system expandability. It introduces new interfaces like M.2 E-Key for WiFi 5/6E, USB 2.0 pin headers, 12-19V power jack, and USB 3.2 Type-A, plus enhanced computing power, power solutions and cooling design. This versatile SBC integrates seamlessly into IoT gateways, digital signage, self-service kiosks, medical devices, and more.

Advanced AI Capabilities with Built-in NPU

Tinker Board 3S features a built-in NPU with 1 TOPS, designed for seamless AI integration, with Rockchip RKNN to effortlessly convert, infer, and evaluate models. This capability enhances and integrates diverse solutions, including object detection, speech recognition, face recognition, extending the possibilities for AI applications – providing a comprehensive for solution for the burgeon era of AI.

Revolutionizing retail connectivity with WiFi 5 and 6E

Tinker Board 3S features both WiFi 5 and 6E technology, enhancing retail connectivity in crowded environments like malls or offices. It ensures seamless communication in remote areas without signal degradation, with robust security protocols for authorized user encryption, protecting against unauthorized access and data breaches.

Secure critical IoT infrastructure

Ensure long-term support with extended OS and security patches, accelerate deployment with remote monitoring, device rebooting, and over-the-air (OTA) updates, prioritizing security. Offer backward compatibility with IoT infrastructures and seamless integration of certified security measures.

Ready-to-deploy panel solution

In collaboration with leading panel PC brands, ASUS IoT’s Tinker Board range offers enhanced panel solutions in sizes ranging from 7” to 24”. Our support includes hardware and software assistance, streamlining porting efforts and reducing costs.

Tailored thermal solutions for diverse environments

Crafted for embedded systems, the thermal solutions of Tinker Board 3S are tailored to meet diverse configurations and requirements, ensuring efficient thermal management for seamless operation in any environment.

Default Heatsink

• Suitable for embedded design
• 20 x 20 x 10 mm

5W Heatsink

• Suitable harsh environment and cooling concern
• 60 x 53 x 10 mm

Fansink

• Suitable for stable frequency and cooling concerns
• 60 x 53 x 16 mm

Heatspreader

• Suitable for space strain for thin design
• 60 x 53 x 3 mm

Application

Digital Signage

Kiosk

IoT Gateway

Medical

IT management software

ASUS IoT Cloud Console

AICC is a unified platform for managing and analyzing big data collected by IoT devices running different operating systems.

• Quick troubleshooting
• Remote restart or updates
• Dashboard and analysis

ASUS Industrial Android and Linux FOTA

Tinker Board 3S supports firmware over-the-air (FOTA) roll-out, enabling embedded systems developers using the board to be updated remotely with the mainstream and latest Android and Linux^* firmware, operating system and drivers.

• Worldwide content-delivery network
• Easy deployment and maintenance
• FOTA progress report

Support for the latest operating systems

Tinker Board 3S supports a variety of the latest and mainstream operating system platforms, catering to different development environment needs. You have the flexibility to choose from Linux Debian, Yocto, and Android operating systems, ensuring compatibility with preferred software ecosystems.x
