T901-Developer Kit
- Mã sản phẩm: T901 AGX Orin 32GB
- Nhà sản xuất: TWOWIN
- Website hỗ trợ: https://www.proe.vn
0₫
Giá thị trường:
T901 Developer Kit makes it easy to get started with Jetson Orin. Compact size, lots of
connectors, and up to 275 TOPS of AI performance.It delivers high-performance AI
computing in a system with enhanced reliability, deployment flexibility, and long-term use
in real-world applications such as robotics, intelligent security, and autonomous systems

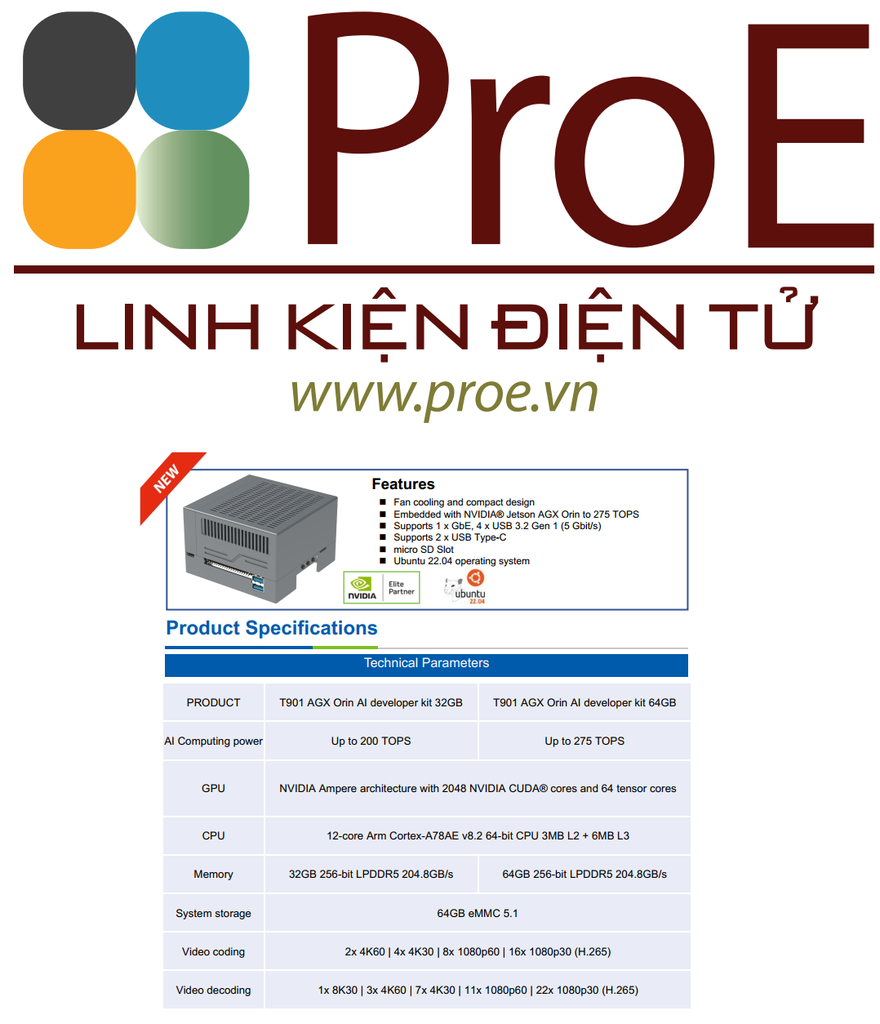

Technical Parameters
Product Specifications
Features
n Fan cooling and compact design
n Embedded with NVIDIA® Jetson AGX Orin to 275 TOPS
n Supports 1 x GbE, 4 x USB 3.2 Gen 1 (5 Gbit/s)
n Supports 2 x USB Type-C
n micro SD Slot
n Ubuntu 22.04 operating system
| PRODUCT | T901 AGX Orin AI developer kit 32GB | T901 AGX Orin AI developer kit 64GB |
| AI Computing power | Up to 200 TOPS | Up to 275 TOPS |
| GPU | NVIDIA Ampere architecture with 2048 NVIDIA CUDA® cores and 64 tensor cores | |
| CPU | 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 | |
| Memory | 32GB 256-bit LPDDR5 204.8GB/s | 64GB 256-bit LPDDR5 204.8GB/s |
| System storage | 64GB eMMC 5.1 | |
| Video coding | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) | |
| Video decoding | 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 | 22x 1080p30 (H.265) |
Hardware Interface
| Ethernet | Interface | 1x RJ45 Ethernet port up to 10 GbE |
Interface View
Leading Edge Computing
| Multimedia | Display | DisplayPort 1.4a (+MST) |
| Audio | / | |
| External I/O | USB | 4x USB3.2 Type-A, 2x USB3.2 Type-C 1x USB Micro-B USB 2.0 |
| Interal Port | Camera Interface | 16-lane MIPI CSI-2 connector |
| M.2 | 1x Key M slot with x4 PCIe 1x Key E slot with PCIe Gen 4, USB 2.0, UART, I2S |
|
| microSD slot | UHS-1 cards up to SDR104 mode | |
| Expension Slot | 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, Reset buttons |
|
| Electric Source |
Power Input | 15W-60W |
| Power Interface | DC Connector | |
| Buttons/IndicatorLights | An indicator light | |
| Work Environment |
Dimensions | 110mm x 110mm x 71.5mm (Height includes feet, carrier board, module, and thermal solution) |
| Operating Temperature |
-20℃~55℃ | |
| Operating Humidity | 5%-95% non-condensing | |
| Cooling Method | Fan cooling |
