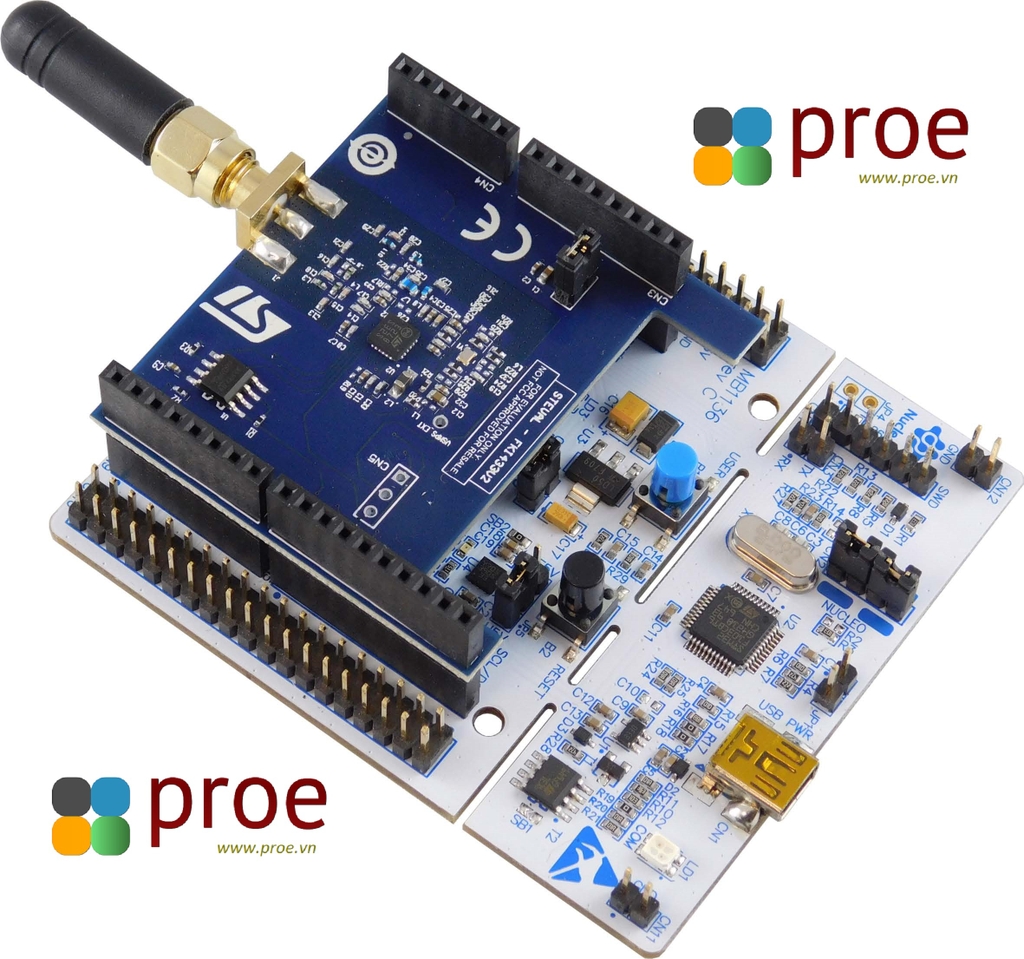

STEVAL-FKI433V2

The STEVAL-FKI433V2 evaluation board is based on the S2-LP sub-1GHz ultra-low power low data-rate transceiver suitable for ISM bands and wireless M-Bus.

The NUCLEO-L053R8 motherboard is equipped with an STM32L0 low power microcontroller to control the S2-LP.

The board integrates a ST-LINK/V2-1 debugger/programmer for firmware updating.

Key Features

• S2-LP narrow band ultra-low power sub-1GHz transceiver in a standalone RF module tuned for 430-470 MHz frequency bands
• STM32 Nucleo-64 development board with STM32L0 MCU
• Suitable for wireless M-Bus systems
• Associated S2-LP development kit including, documentation, firmware for STM32L and GUI
• Programmable RF output power up to +16 dBm
• Modulation schemes: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK, and ASK
• Air data rate from 0.3 to 500 kbps
• Ultra-low power consumption:
  • 6.7 mA RX
  • 10 mA TX at +10 dBm
• Excellent performance of receiver sensitivity (up to -130 dBm)
• Low duty cycle RX/TX operation mode
• Automatic acknowledgement, retransmission and timeout protocol engine
• SPI interface for microcontroller
• USB interface
• RoHS compliant
