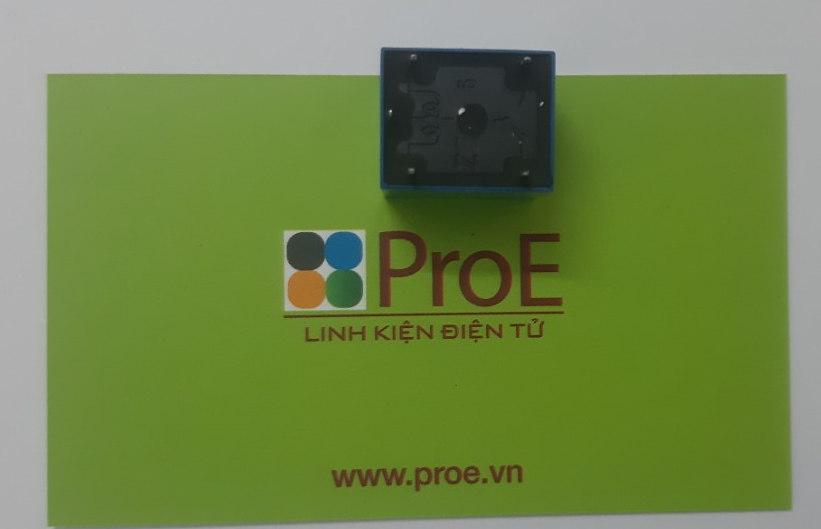

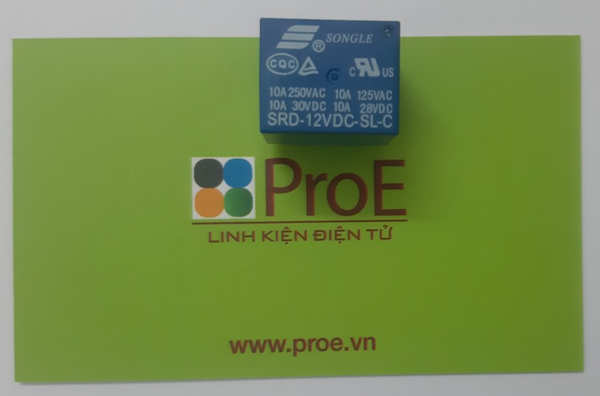

SRD-12VDC-SL-C PCB Type 12V DC 10A songle relay 5 pin relays
Specifications:
-Model: SRD-12VDC-SL-C
-Coil voltage: DC 12V
-Coil resistance: 70Ω ~ 80Ω
-Contact resistance: 100Ω Max
-Operation time: 10msec Max
-Release time: 5msec Max
-Ambient temperature: -25°C to 70°C
-Operating humidity: 45 to 85%RH
-Operating current: 43mA ~ 46mA
-Release current: 15mA ~ 18mA
-Pin: 5Pin
-Insulation resistance: ≥100M (Ohm)
-Dielectric strength:
-Between coil & contacts: AC 1500V 50HZ ~ 60HZ/min
-Between contacts: AC 1000V 50HZ ~ 60HZ/min
-Rated load:: 10A 250V AC / 10A 125V AC / 10A 30V DC / 10A 28V DC
-Size: 1.8 x 1.5 x 1.6cm (L x W x H)
