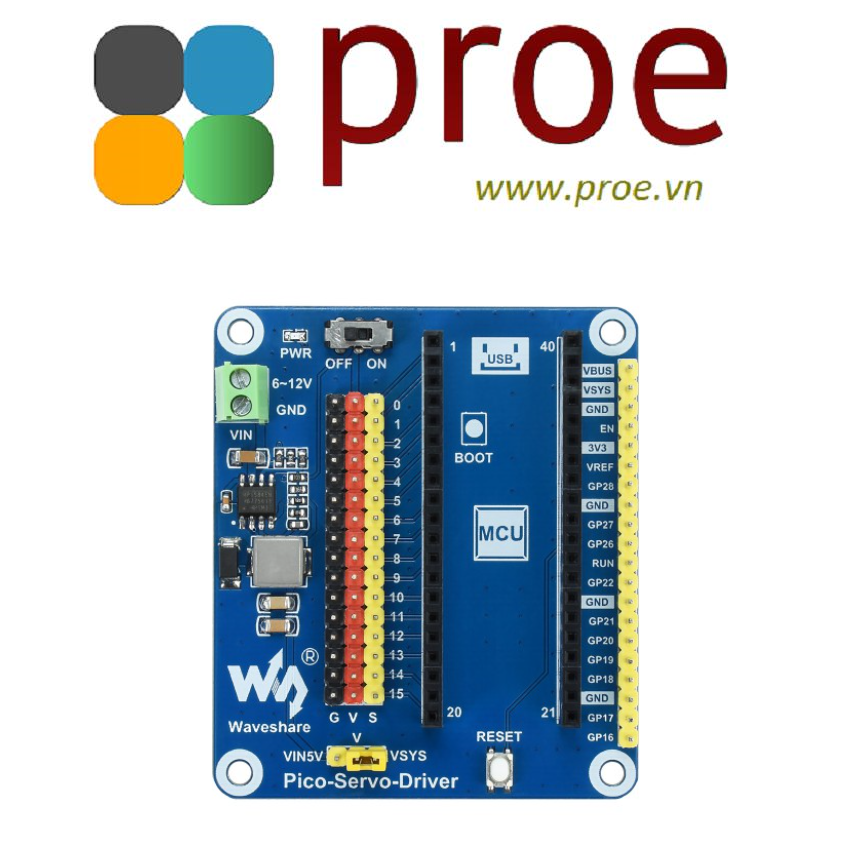

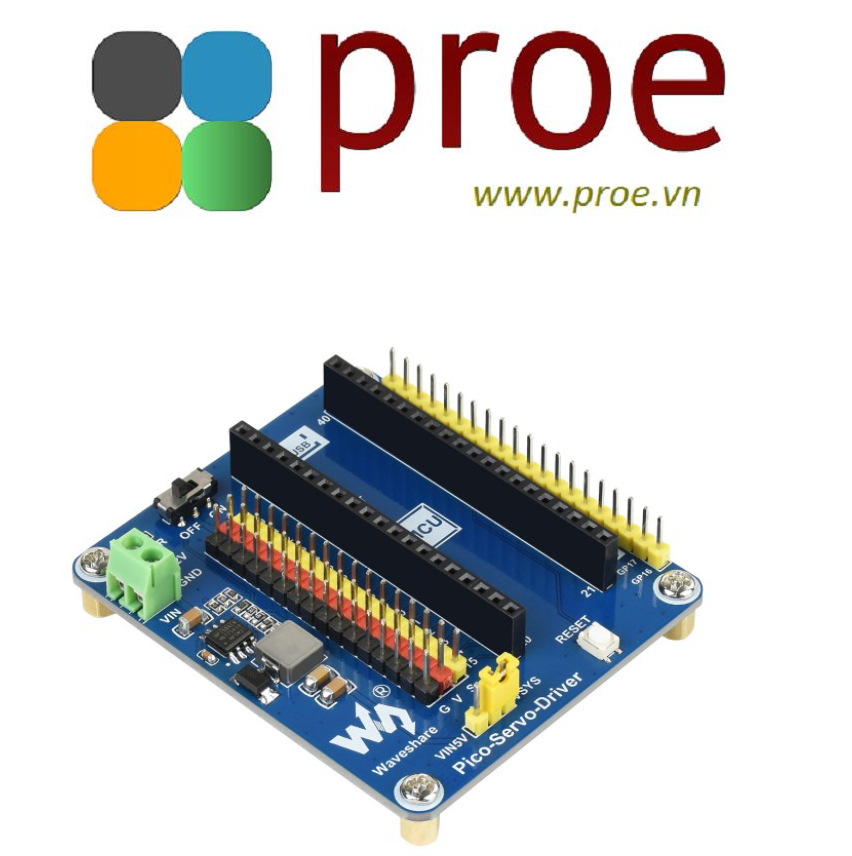

Servo Driver Module for Raspberry Pi Pico, 16-ch Outputs, 16-bit Resolution

PACKAGE CONTENT

Weight: 0.028 kg

1. Pico-Servo-Driver x1

1

Servo Driver Module For Raspberry Pi Pico, 16-Channel Outputs, 16-Bit Resolution

Servo Driver Module For Pico

Ideal For Controlling Robotic Arm Or Hexapod Walker

Features At A Glance

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
• Up to 16-Channel servo/PWM outputs, 16-bit resolution for each channel
• Integrates 5V regulator, up to 3A output current, allows battery power supply from the VIN terminal
• Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
• Exposes unused pins of Pico, easy expansion
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Standard Servo Interface

Supports Common Used Servo Like: SG90, MG90S, MG996R

Onboard 5V Regulator

Flexible Power Options: Powered From Pico Directly,
Or From VIN Battery Input Terminal With Max 3A Current Output

Application Example

Raspberry Pi Pico and servo are NOT included.

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: Pico-Servo-Driver
