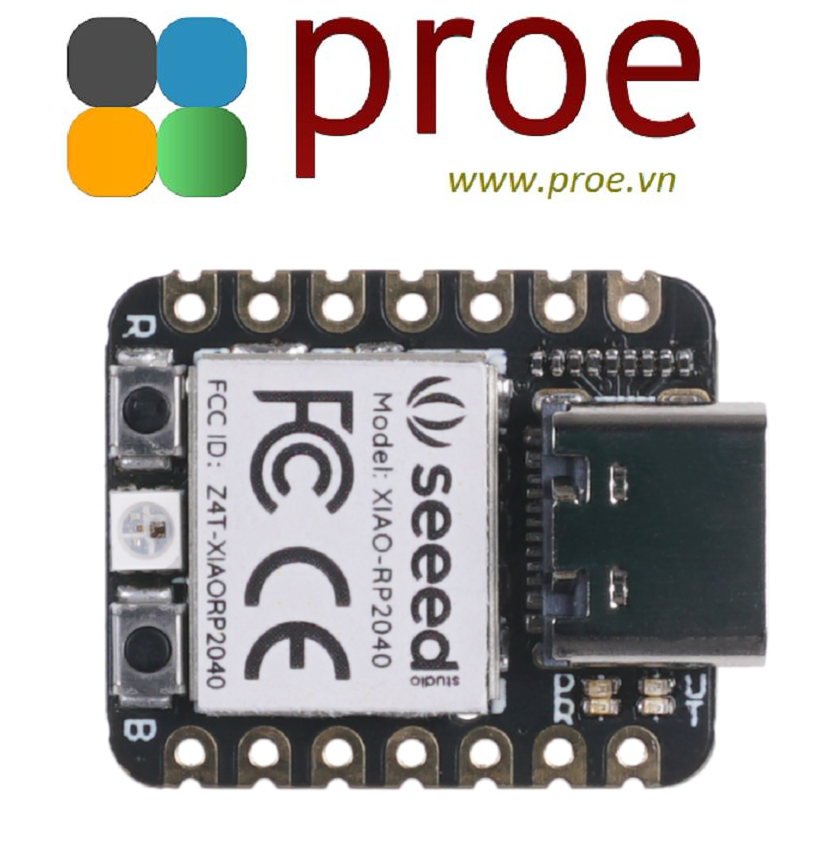

Seeed XIAO RP2040 - Supports Arduino, MicroPython and CircuitPython

  • Mã sản phẩm: 102010428 Seeed XIAO RP2040
  • Nhà sản xuất: Seeed Studio
  • Website hỗ trợ: https://www.proe.vn
220.000₫

Description



XIAO RP2040 is a microcontroller using the Raspberry RP2040 chip. It runs at up to 133MHz, is built with rich interfaces in a tiny thumb size, and fully supports Arduino, MicroPython, and CircuitPython. The onboard interfaces are enough for developing multiple applications.

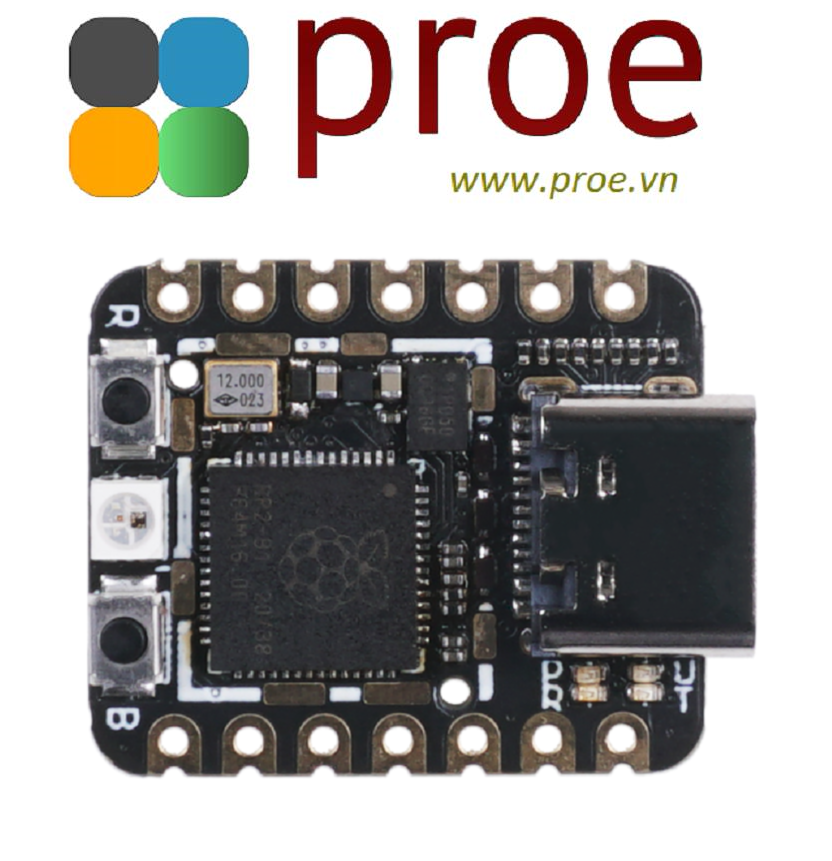

XIAO RP2040 is a development board of the Seeeduino XIAO series. Like the Seeeduino XIAO, it is a compact board with a wide range of interfaces. The XIAO RP2040 is equipped with the Raspberry RP2040 chip (Dual-core ARM® Cortex® M0+ @133MHz). Powerful performance and low power, ideal for various wearable and small projects.

 Features



  • Powerful MCU: Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz

  • Rich on-chip resources: 264KB of SRAM, and 2MB of onboard Flash memory



  • Flexible compatibility: Support Micropython/Arduino/CircuitPython

  • Easy project operation: Breadboard-friendly & SMD design, no components on the back



  • Small size: As small as a thumb(20x17.5mm) for wearable devices and small projects

  • Multiple interfaces: 11 digital pins, 4 analog pins, 11 PWM Pins,1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface





In addition to the powerful CPU, the XIAO RP2040 has 2MB of Flash on board. 11 digital pins, 4 analog pins, 11 PWM Pins,1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface. Some PINs have various functions, Moreover, XIAO RP2040 supports the USB Type-C interface which can supply power and download code. 1 Reset button, 1 BOOT button, 1 user-programmable RGB LED, 1 power LED, 2 status indicators, and 1 user LED are on board, allowing developers to debug their code very easily.





The XIAO RP2040 is very compact because all electronic components are soldered on the same board surface, which means you can easily solder the XIAO RP2040 to your own PCB. XIAO RP2040 is pin-compatible with Seeeduino XIAO, so XIAO RP2040 can be learned and developed using the Expansion board of Seeeduino XIAO





The XIAO RP2040 fully supports C/C++ and MicroPython because it uses the same chip (RP2040) as the Seeed RP2040 Microcontroller family.



You can also use the Thonny editor to program as if you were using Raspberry Pi Pico

















Attention:



All the I/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.












Specification



  • CPU: Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz

  • Storage: 264KB of SRAM, and 2MB of on-board Flash memory



  • I/O PINs: 11 digital pins, 4 analog pins, 11 PWM Pins

  • Interface: 1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface



  • Power supply and downloading interface: USB Type-C interface

  • LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED



  • button: 1 RESET button, 1 BOOT button

  • Power Pads: For the battery power supply



  • Software compatibility: Support Micropython/Arduino/CircuitPython

  • Projection cover for protecting the circuit

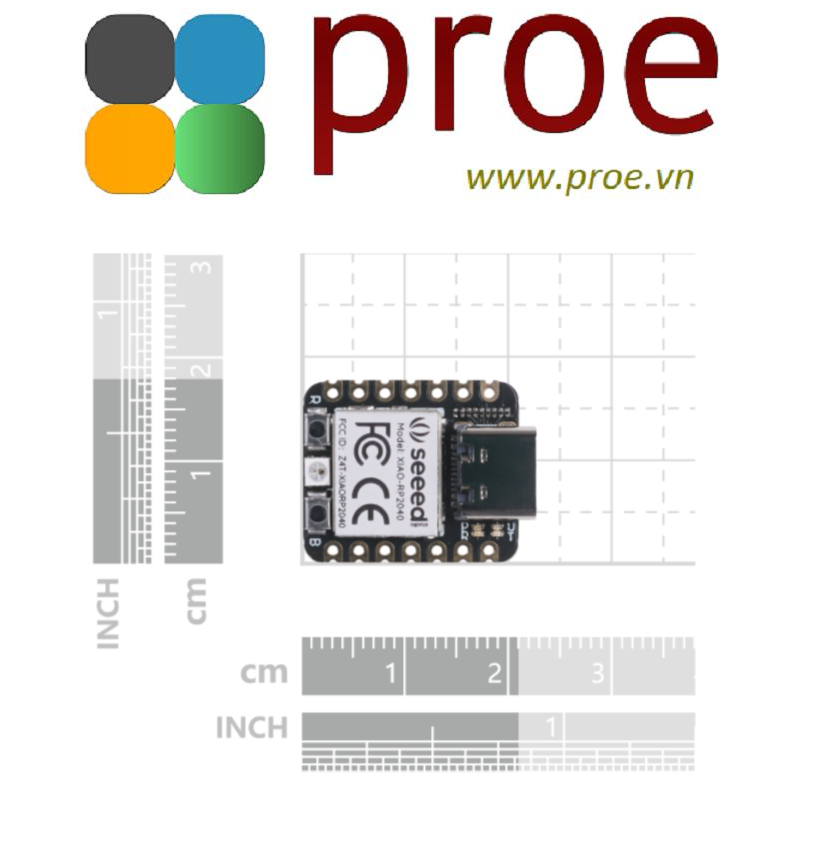

  • Dimensions: 20x17.5x3.5 mm



Application



  • Wearable devices

  • Rapid prototyping (directly attached to the expanded PCB as a minimal system)



  • Perfect for all the projects need mini Arduino

  • DIY keyboard



  • USB development (USB to multi-channel TTL/USB host mode, etc.)

Comparison between Seeeduino XIAO and XIAO RP2040



Item

XIAO RP2040

Seeeduino XIAO

Processor

Dual-core ARM® Cortex® M0+ @133MHz

ARM® Cortex®-M0+ @48MHz

Flash

2MB

256KB

Onboard Button

Reset Button/ Boot Button

No Button(reset pad)

RGB LED

Full Color RGB LED

None

Analog Pin

4

11

PWM Pin

11

10

DAC Output

None

1

Programming language

Arduino

MicroPython

CircuitPython

Arduino

Hardware Pinout



Part List



  • 1 x XIAO RP2040 Microcontroller

  • 2 x 7pins header
