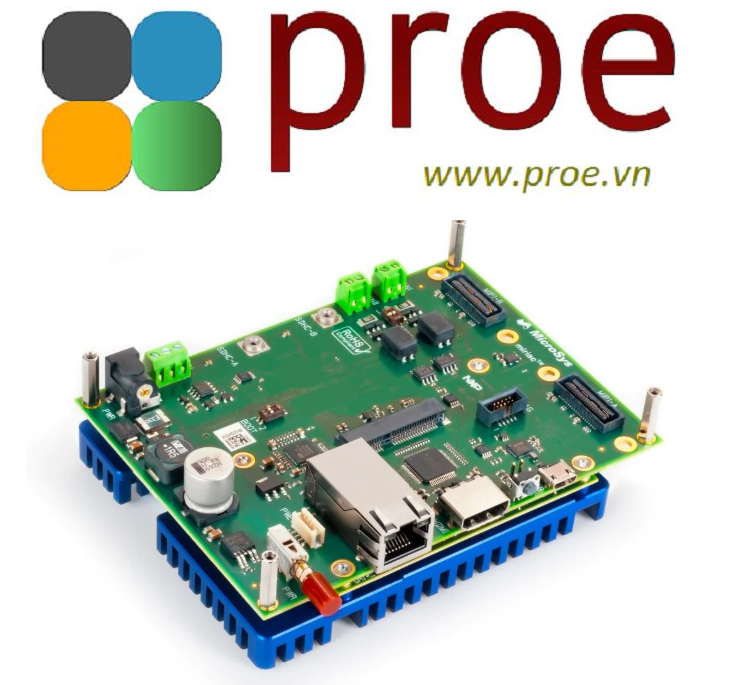

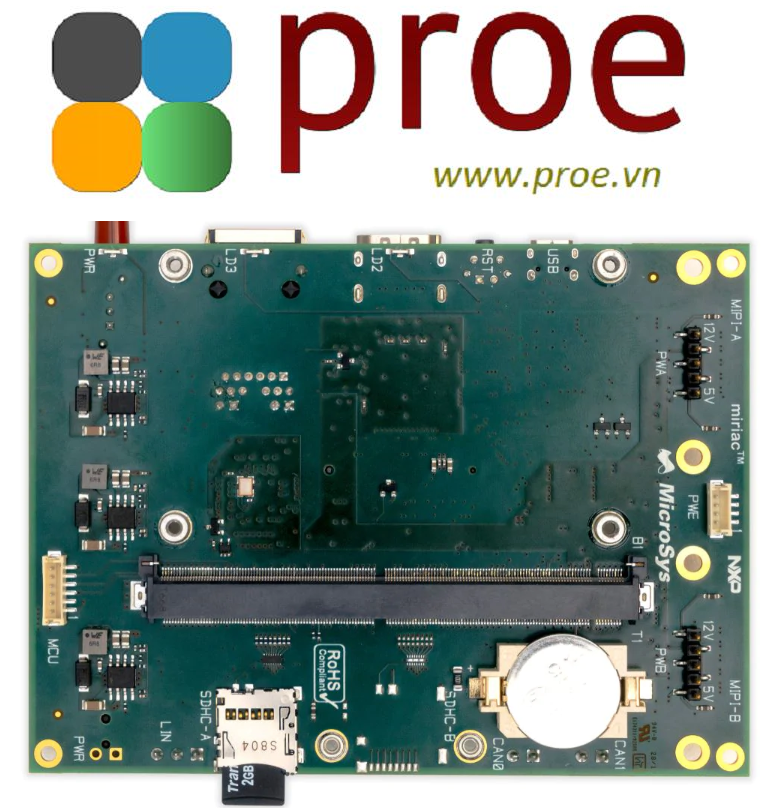

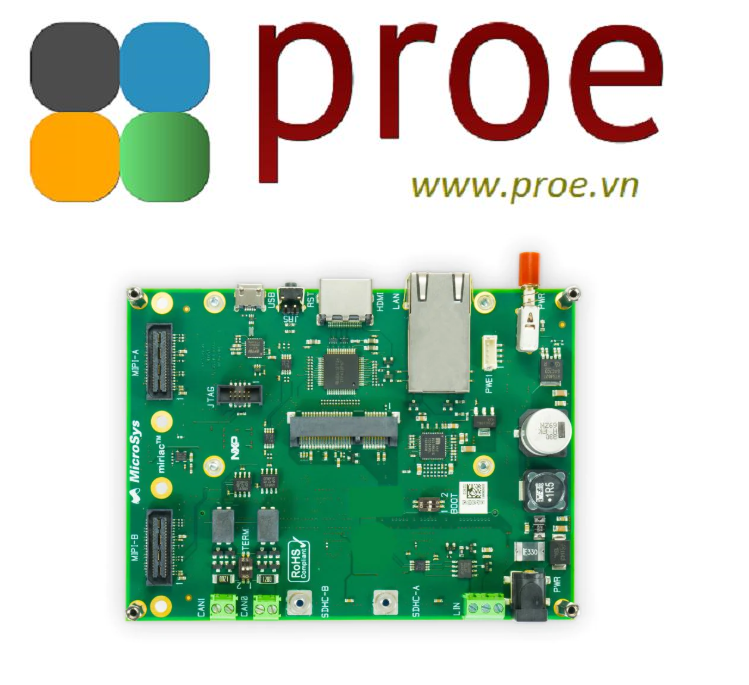

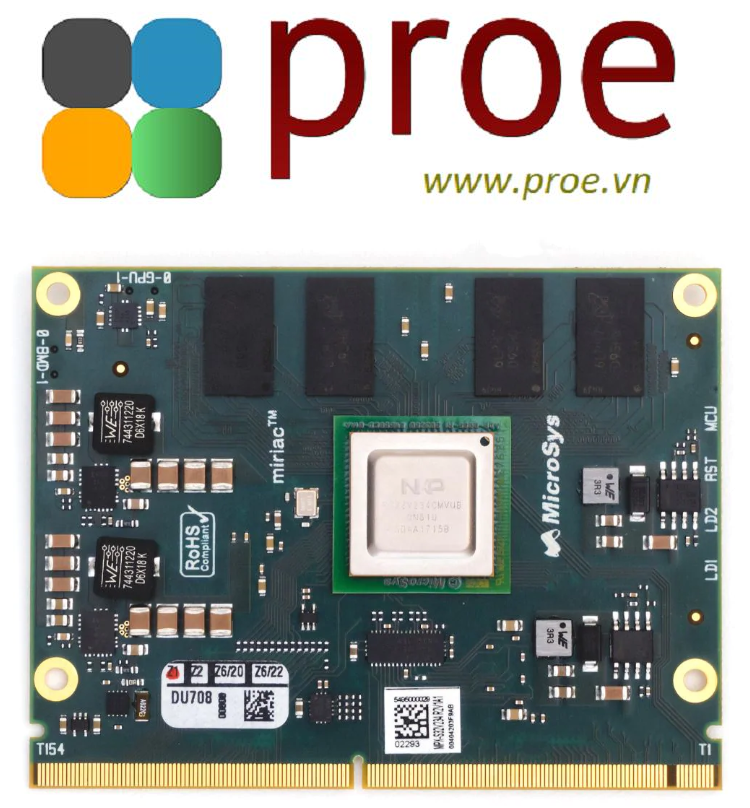

SBC-S32V234 Single Board Computer, MPX-S32V SoM, Integrated Cooling, ADAS Development

  • Mã sản phẩm: SBC-S32V234 Single Board Computer
  • Nhà sản xuất: NXP Semiconductors
  • Website hỗ trợ: https://www.proe.vn
26.000.000₫

Overview

The SBC-S32V234 is a cost-competitive evaluation board and development platform engineered for high-performance, safe computation-intensive front vision, surround vision, and sensor fusion applications.

Developed in partnership with MicroSys and based on the 64-bit Arm® Cortex®-A53 S32V processors, the SBC-S32V234 has an efficient form factor while covering many of the uses cases available for the S32V234 processors.

The SBC-S32V234 is the recommended starting evaluation board for S32V processors.

The S32V234 processors offer both S32V234-EVB2 and SBC-S32V234 board options with similar functionality; consider using the cost-competitive and small form factor SBC-S32V234 evaluation board if your use case is covered by all its features.

Target Applications

  1. Automotive Vision Systems
  2. Driver Monitoring Systems (DMS) and Occupant Monitoring Systems
  3. Front View Camera
  4. Surround View

Specifications

Supported Devices

Processors and Microcontrollers

S32V2 Vision MPUs
  • S32V234 : S32V2 processors for Vision, Machine Learning, and Sensor Fusion

Technical and Functional Specifications

Processor
  • Arm® Cortex®-A53, 64-bit CPU
    • Up to 1000 MHz Quad Arm Cortex-A53
    • 32 KB/32 kB I-/D- L1 Cache
  • Arm Cortex-M4, 32-bit CPU
    • Up to 133 MHz
    • 16 KB/16 kB I-/D- L1 Cache
Power Management 5 and 12 V Power Supply connector
Display / Camera Connectors
  • Video input (2 x MIPI-CSI2)
  • Video Output (RGB to HDMI converter)
  • 1x PCIe 2.0
Connectivity
  • Gigabit Ethernet
  • 2 x CAN, 1 x LIN and 1 x UART
  • Up to 8 ADC channels
Memory 2 GiB DDR Memory plus SD card slot and 16 GiB EMMC for NVM
User Components
  • 2 User LEDs
  • Reset

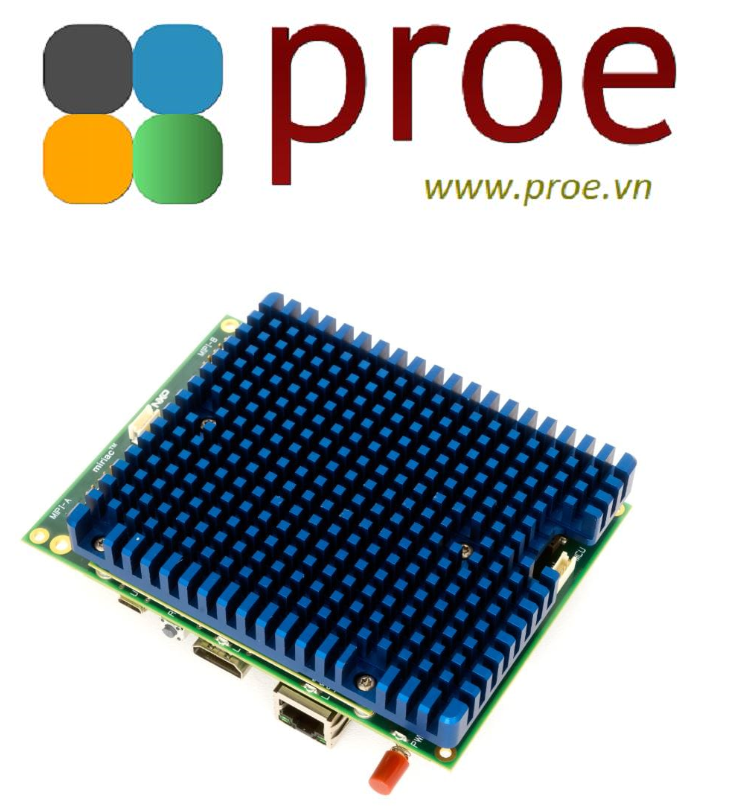

  • Aluminum Heatsink and optional fan (not included)
Debug 10-pin JTAG debug connector
