RP2350-LCD-0.96

Package Content

Weight: 0.007 kg

RP2350-LCD-0.96

1. RP2350-LCD-0.96 x1

1

RP2350-LCD-0.96-M

1. RP2350-LCD-0.96 with pre-soldered header x1

1

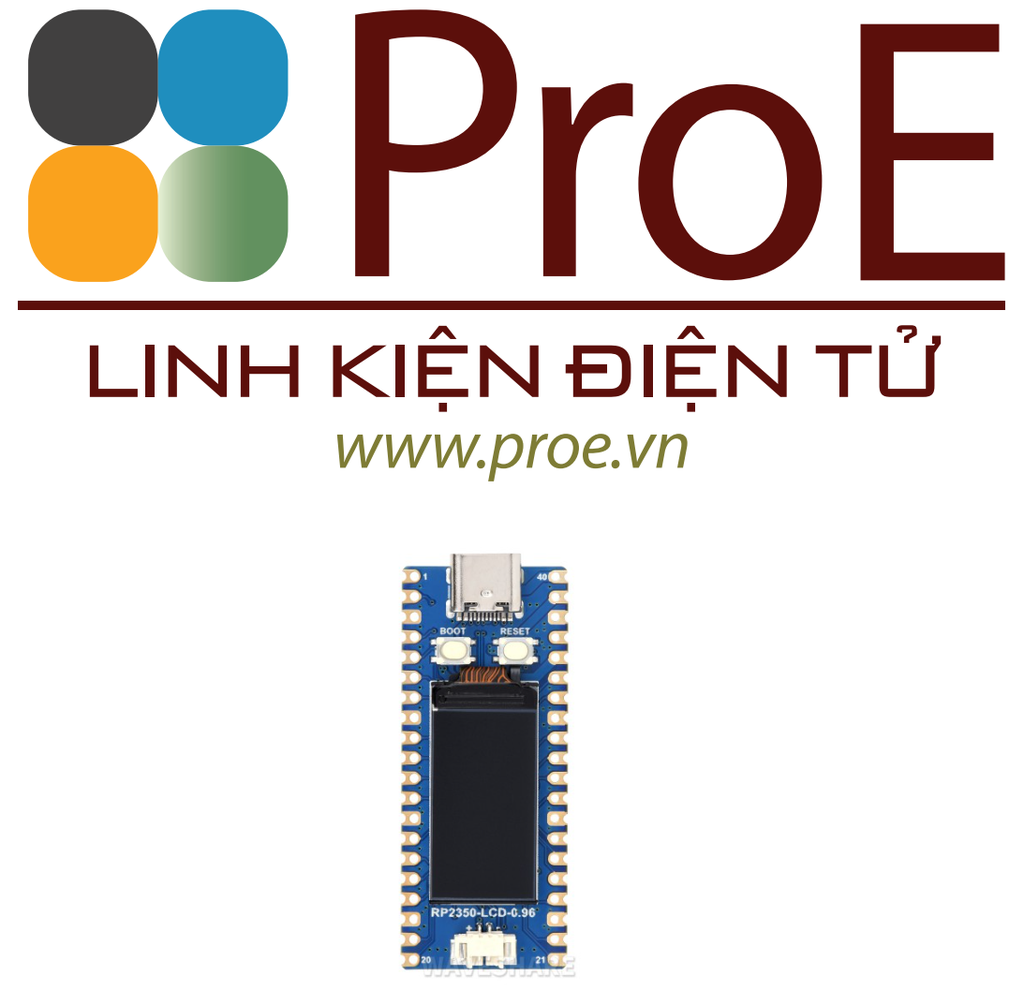

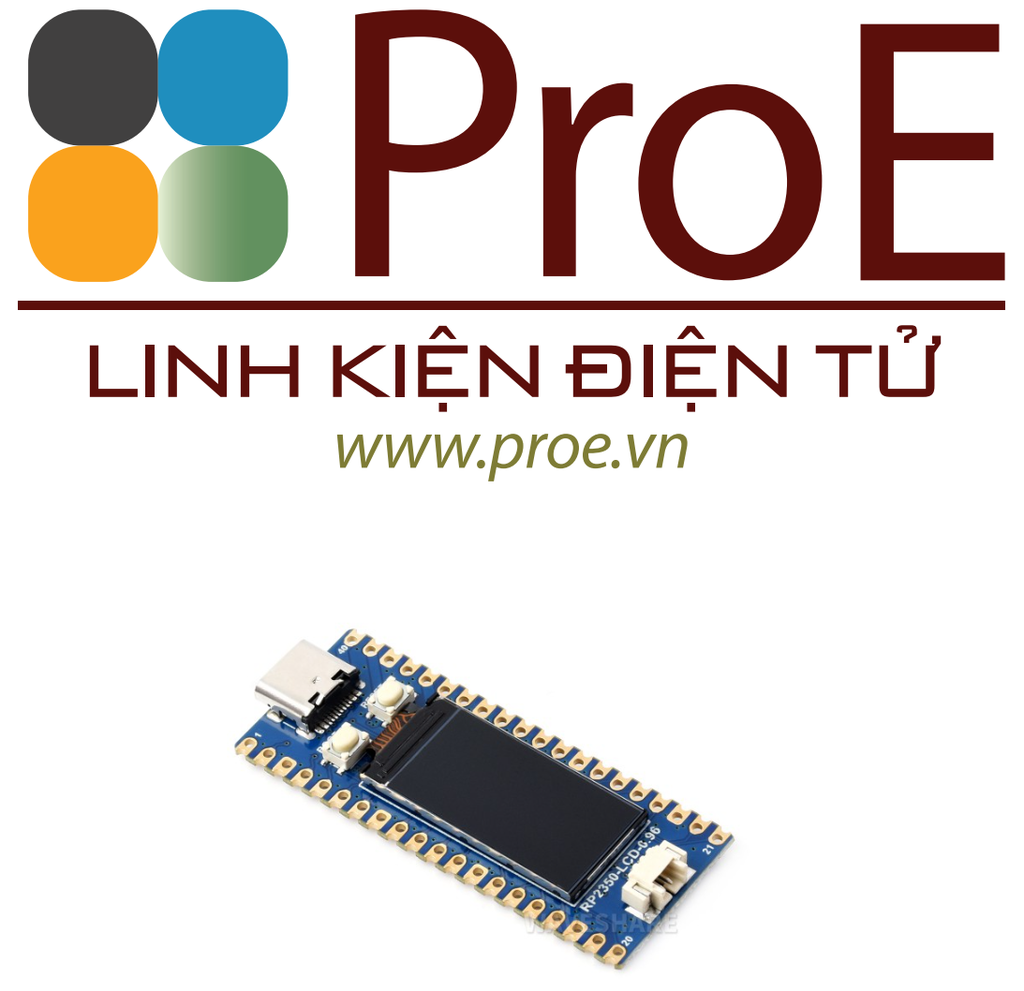

Waveshare RP2350-LCD-0.96 Development Board, With 0.96inch LCD Display, 160×80 Resolution, Based On RP2350A Dual-core & Dual-architecture Microcontroller

RP2350 MCU Board with 0.96inch LCD

a Pico-like MCU board based on Raspberry Pi RP2350A

Compatible with most of the Raspberry Pi Pico add-on modules

Board specifications

RP2350-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi's RP2350A microcontroller chip, the same as the one on Raspberry Pi Pico 2. For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly.

In addition, there's also an onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.

Key features include:

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 4MB of on-board Flash memory
• USB-C connector, keeps it up to date, easier to use
• 0.96inch 160×80 pixels 65K colorful IPS LCD display
• Lithium battery recharge/discharge header, suitable for mobile devices
• Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

Pinheader options

RP2350-LCD-0.96
without pinheader

RP2350-LCD-0.96-M
with pre-soldered pinheader

Support C/C++, MicroPython

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

dual-core, dual-architecture

Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz

26 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's On Board

1. USB Type-C connector
   for program downloading, supports USB1.1 hosts and slave devices
2. BOOT button
3. RESET button
4. 0.96inch IPS LCD display
   160 × 80 pixels, 65K colorful
5. Battery header
   MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
6. MP28164
   high efficiency DC-DC buck-boost chip

7. ETA6096
   high efficiency Lithium battery recharge manager
8. RP2350A
   Dual-core and dual-architecture design, up to 150 MHz operating frequency
9. P25Q32SH-UXH-IR
   4MB NOR-Flash
10. DEBUG points

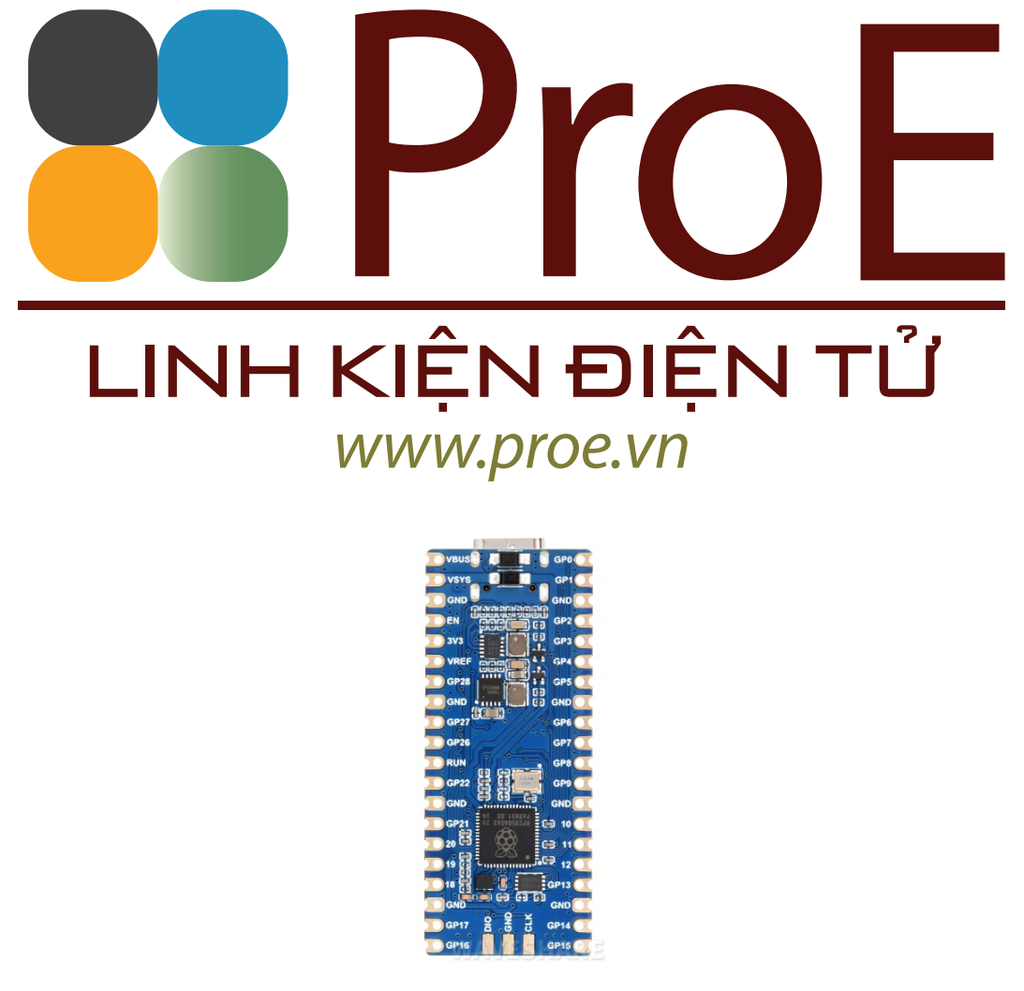

11. Pinout
    compatible with Raspberry Pi Pico 2

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RP2350-LCD-0.96
