RP2040-Plus-M, a Pico-like MCU Board Based on Raspberry Pi MCU RP2040, Plus ver

  • Mã sản phẩm: RP2040-Plus-M
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
380.000₫
PACKAGE CONTENT

Weight: 0.004 kg

RP2040-Plus

  1. RP2040-Plus x1
RP2040-Plus

RP2040-Plus-M

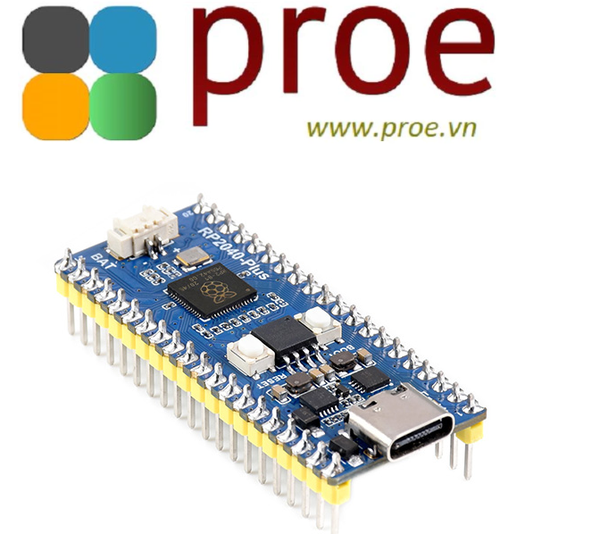

  1. RP2040-Plus with pre-soldered header x1
RP2040-Plus-M

RP2040-Plus, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

RP2040 MCU Board Plus

a Pico-like MCU board based on Raspberry Pi RP2040

Compatible With Most Of The Raspberry Pi Pico Add-On Modules

Board Specifications

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All there problems are solved by our RP2040-Plus now.

As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.

What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip.

Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 4MB of on-board Flash memory
  • USB-C connector, keeps it up to date, easier to use
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Pinheader Options

C/C++,MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

26 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

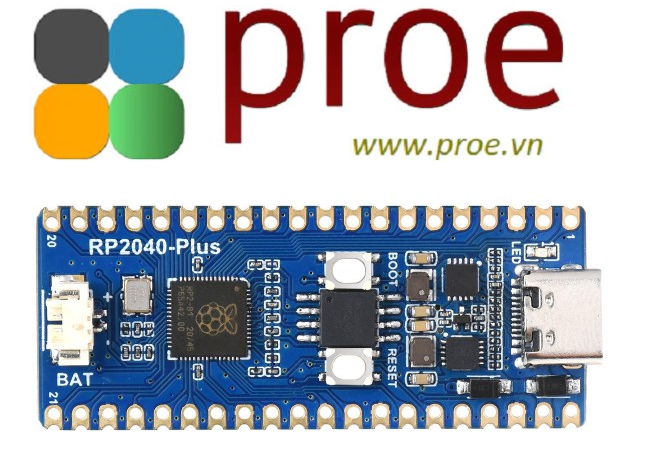

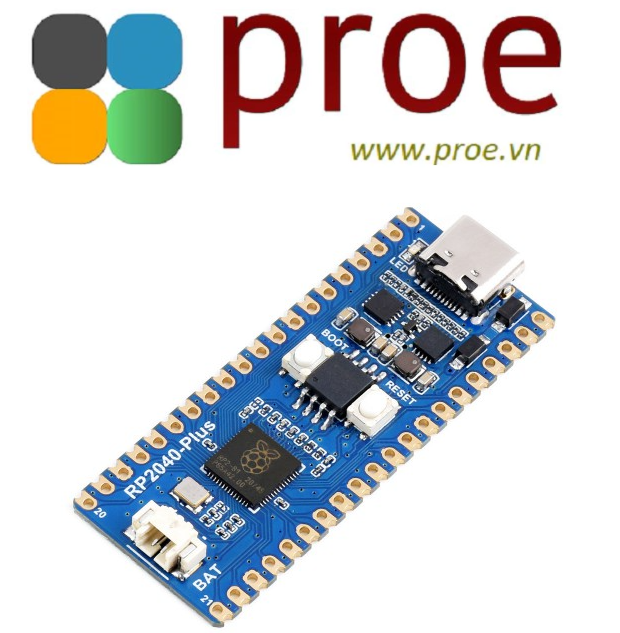

What's On Board

  1. LED
    user LED (not power indicator)
  2. ETA6096
    high efficiency Lithium battery recharge manager
  3. TPS63000
    high efficiency DC-DC buck-boost chip
  4. USB Type-C connector
  5. BOOT button
    press it when resetting to enter download mode
  6. W25Q32JVSSIQ
    4MB NOR-Flash
  7. RESET button



  1. RP2040
    dual-core processor, up to 133MHz operating frequency
  2. Battery header
    MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time

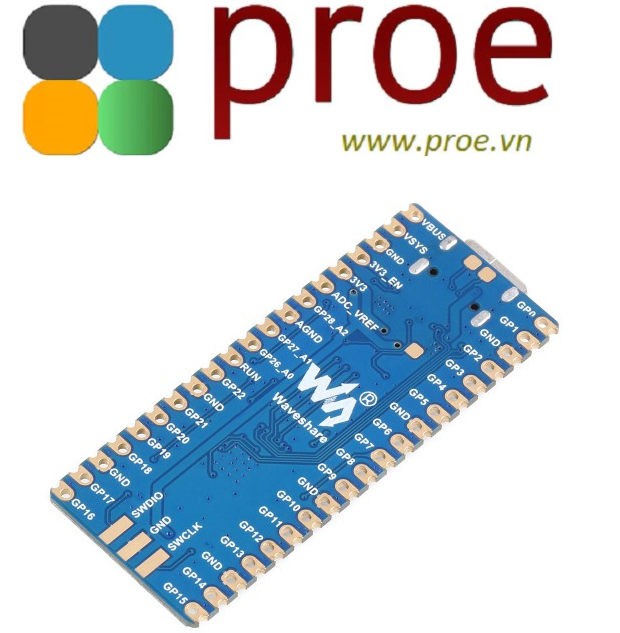

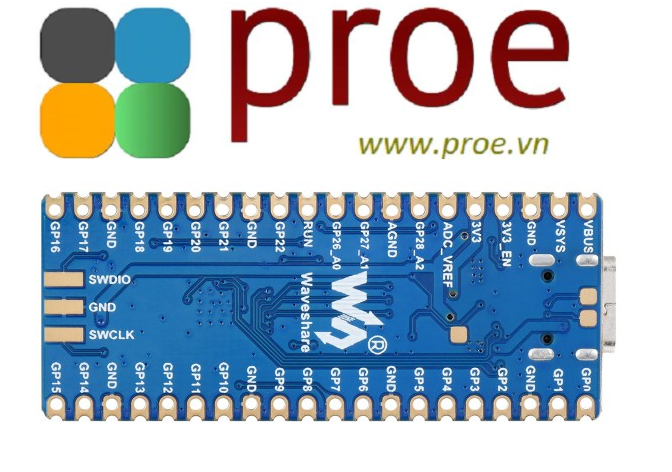

  3. Pinout
    compatible with Raspberry Pi Pico
  4. USB test points
    connecting to USB interface
  5. BOOT test point
    connecting to BOOT button
  6. DEBUG points

Outline Dimensions

Resources & Services

Wiki: RP2040-Plus
