Robot-Chassis Series Smart Mobile Robot Chassis Kit, Options for wheels and chassis

Robot-Chassis Series Smart Mobile Robot Chassis Kit, Options For Wheels And Chassis

Robot-Chassis Series
Smart Mobile Robot Chassis Kit

Provides Four Different Combinations of Chassis and Wheels

Version Options

Robot-Chassis-P Series Kit

Features Shock-Absorbing Structure, Metal Body And External Rails,
Provides Better Expansion Potential

Lightweight Shock-Absorbing Structure

Adopts Lightweight Shock-Absorbing Structure While Ensuring Good Strength And Reliability, Improves The Accuracy Of IMU Data And Solves The Problem That It Was Hard For Rigid Chassis To Land On All Four Wheels At The Same Time

Rich Mounting Holes

Compatible With Raspberry Pi 4B, Raspberry Pi Zero, Jetson Nano
Lidar, Battery Box, Bus Servo And Other Modules

Four-Wheel Drive × Mechanum Wheel

Four-Wheel Drive Provides Stronger Power And Stability, And Normal Wheels Can Also Be Replaced With Mechanum Wheels For More Flexible Maneuverability

Aluminum External Rails

1020 Aluminum Rails On Both Sides Of The Body For Expanding Other Peripheral Modules

All-Metal Multi-Layer Chassis

All-Metal Multi-Layer Structure, Stable And Durable, Supports Installation Of More Modules

Comes With Mounting Plate, More Flexible To Expand

Lightweight Multifunctional Mounting Plate For Flexible Installation Of More Modules

Robot-Chassis-S Series Kit

Low-Complexity Chassis With Flexible Assembly And Expansion Methods

Double Mounting Plate Structure

WIth The Mounting Holes To Fit Most Sizes, Compatible With A Variety Of Hardware To Meet Different Application Scenarios And Needs

Lightweight And High Strength

The Mounting Plate Adopts Special Structure To Enhance Strength And Reduce Weight

Low Complexity, Easy To Use

Allows Users To Assemble And Debug More Easily, With Less Technical Experience Requirement

Modular Structure, Easy To Maintain

The Design Of This Series Is Easy To Maintain And Upgrade
Eliminates The Situation To Replace The Entire Unit Due To Damage Or Obsolescence

Open Source Design

Open Source For Robot Models And Positioning Holes Drawings, Users Can Develop And Formulate Secondary Development According To Their Needs And Interests, Enhancing Playability And Expandability

Rich Open Source Demos

Compatible With Waveshare General Driver For Robots, Can Directly Control A Variety Of Peripheral Modules

Note: General Driver for Robots is suitable for Robot-Chassis-NP and Robot-Chassis-NS, as this driver board can only control two groups of motors at the same time, while the Mecanum wheel robot chassis requires four motors to drive separately

Product Show

Outline Dimensions

PACKAGE CONTENT

Weight: 0.592 kg

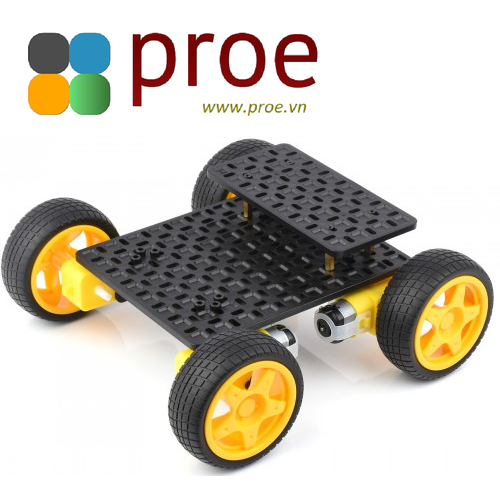

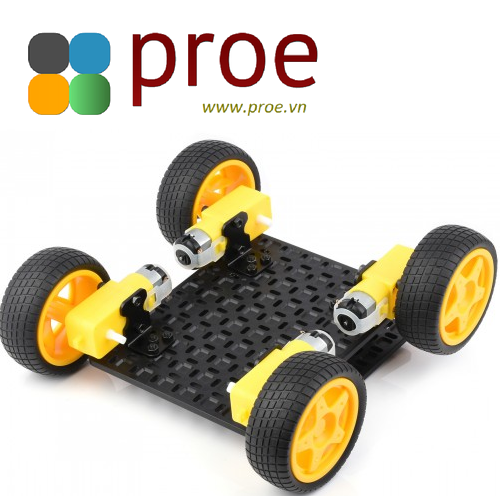

Robot-Chassis-NS

1. Wheels (4PCS) ×1
2. Mobile robot mounting plate (large size) ×1
3. Mobile robot mounting plate (middle size) ×1
4. TT Motor (4PCS) ×1
5. TT motor bracket (4PCS) ×1
6. Mini cross wrench sleeve ×1
7. Allen wrench ×1
8. Screwdriver ×1
9. Screws pack ×1

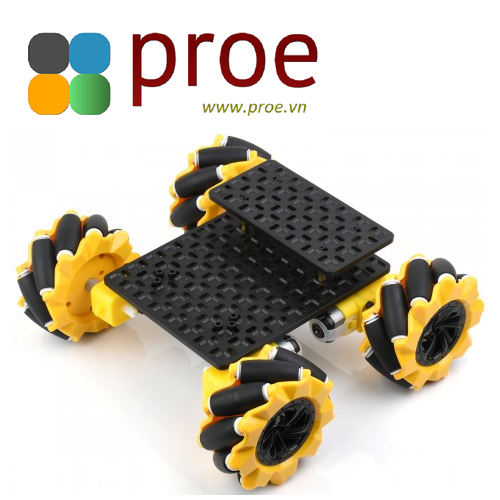

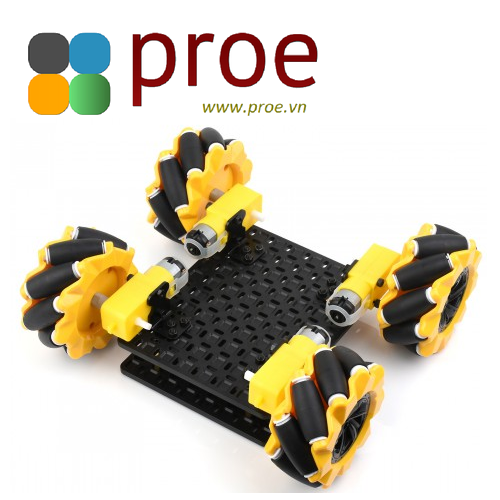

Robot-Chassis-MS

1. Mecanum wheels (L wheel 2PCS, R wheel 2PCS) ×1
2. Mobile robot mounting plate (large size) ×1
3. Mobile robot mounting plate (middle size) ×1
4. TT Motor (4PCS) ×1
5. TT motor bracket (4PCS) ×1
6. Mini cross wrench sleeve ×1
7. Allen wrench ×1
8. Screwdriver ×1
9. Screws pack ×1

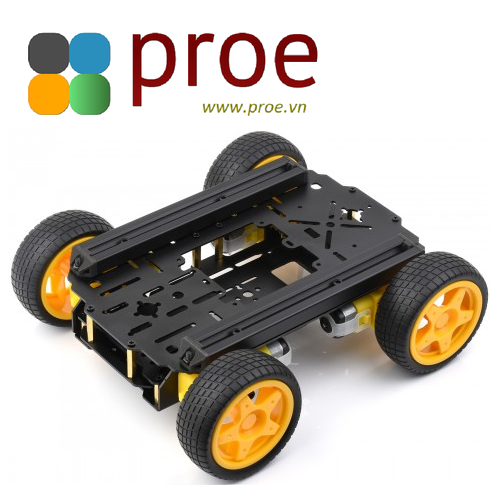

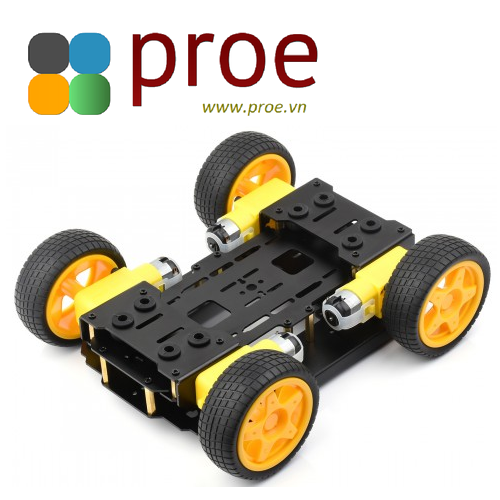

Robot-Chassis-NP

1. Wheels (4PCS) ×1
2. Metal chassis kit ×1
3. Mobile robot mounting plate (middle size) ×1
4. TT Motor (4PCS) ×1
5. Black silicone shock absorbing ball (11PCS) ×1
6. Mini cross wrench sleeve ×1
7. Allen wrench ×1
8. Screwdriver ×1
9. Screws pack ×1

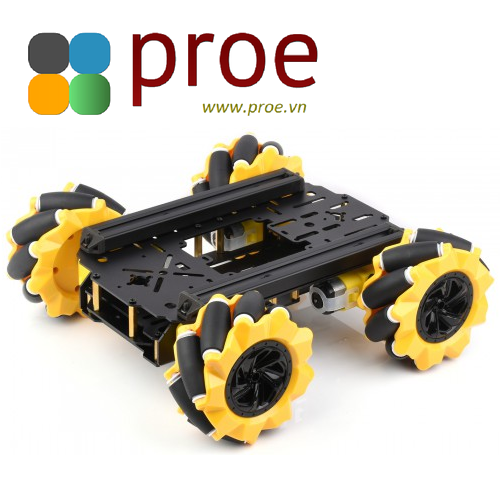

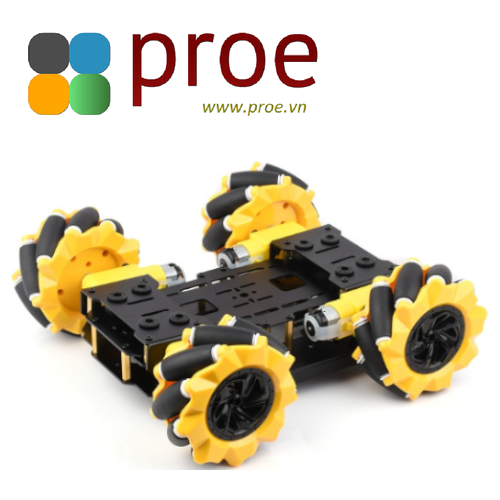

Robot-Chassis-MP

1. Mecanum wheels (L wheel 2PCS, R wheel 2PCS) ×1
2. Metal chassis kit ×1
3. Mobile robot mounting plate (middle size) ×1
4. TT Motor (4PCS) ×1
5. Black silicone shock absorbing ball (11PCS) ×1
6. Mini cross wrench sleeve ×1
7. Allen wrench ×1
8. Screwdriver ×1
9. Screws pack ×1

WIKI: www.waveshare.com/wiki/Robot-Chassis
