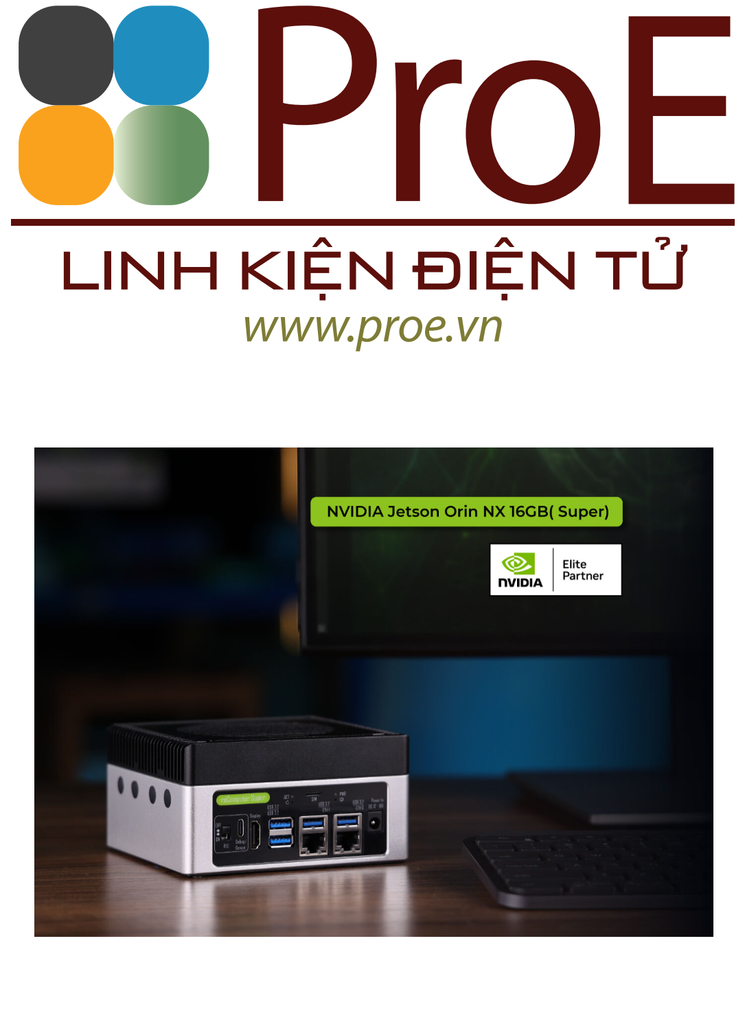

reComputer Super J4012 - Advanced Edge AI Computer with NVIDIA® Jetson™ Orin™ NX 16GB
- Mã sản phẩm: 114110314
- Nhà sản xuất: Seeed Technology Limited
- Website hỗ trợ: https://www.proe.vn
39.000.000₫
Feature
- Super Boost AI Performance: Delivers up to 157 TOPS in MAXN Super Mode, ideal for demanding applications like vision AI, robotics, and generative AI.
- Energy-Efficient Operation: Configurable power modes from 10W to 40W allow for optimized performance and energy consumption.
- Robust Thermal Design: Operates reliably in temperatures from -20°C to 60°C at 40W, and up to 65°C at 25W.
- Rich interfaces: features 2xRJ45, SIM card, 4×USB 3.2, HDMI 2.1, and CAN. Also including M.2 Key E/M, Mini-PCIe, 4xCSI for connectivity and cameras.
- Ready for Deployment: Pre-installed with JetPack 6.2 and a 128GB NVMe SSD, supporting AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.
Specification
|
reComputer Super J4011 |
reComputer Super J4012 |
||
|
Applications Processor(AP) |
NVIDIA Orin™ NX 8GB |
NVIDIA Orin™ NX 16GB |
|
|
AI Performance |
Orin NX 8GB – 117 TOPS(MAXN) |
Orin NX 16GB – 157 TOPS(MAXN) |
|
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
||
|
GPU Max Frequency |
1173 MHz |
||
|
CPU |
6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
|
CPU Max Frequency |
2.0 GHz |
||
|
DL Accelerator |
1 x NVDLA v2.0 |
2 x NVDLA v2.0 |
|
|
DL Max Frequency |
1.23 GHz |
||
|
Vision Accelerator |
1 x PVA v2.0 |
||
|
Memory |
8GB 128-bit wide LPDDR5 DRAM 102.4 GB/s |
16GB 128-bit wide LPDDR5 DRAM 102.4GB/s |
|
|
Power |
10W - 15W - 25W - 40W |
10W - 15W - 25W -40W |
|
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
||
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
||
|
CSI camera |
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
||
|
Mechanical |
69.6mm x 45mm 260-pin SO-DIMM connector |
||
Part List
|
Jetson Orin™ NX 16GB/NX 8GB /Nano 8GB/Nano 4GB module |
x 1 |
|
Seeed Carrier Board (reComputer Super J401) |
x 1 |
|
128GB NVMe SSD |
x 1 |
|
Aluminum Case and Heatsink with Fan |
x 1 |
|
USB Cable; Type A to Type C |
x 1 |
|
User Manual |
x 1 |
