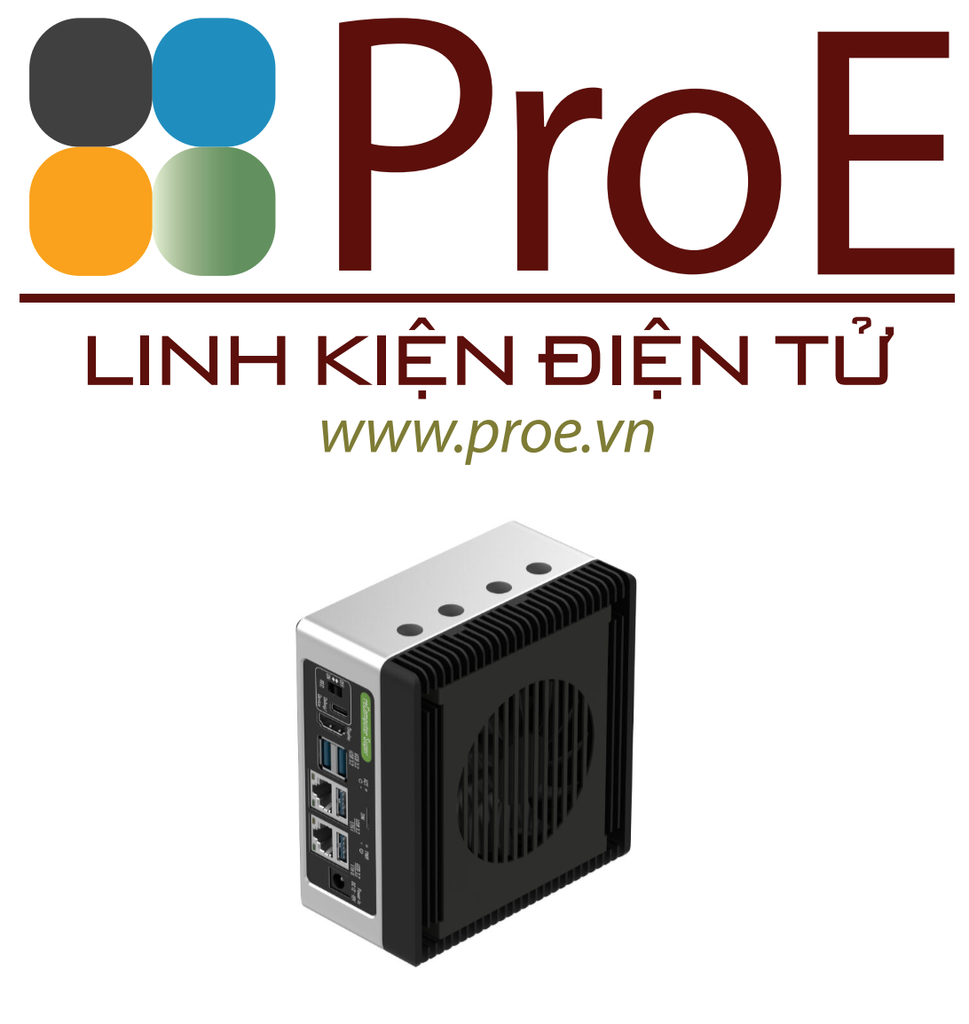

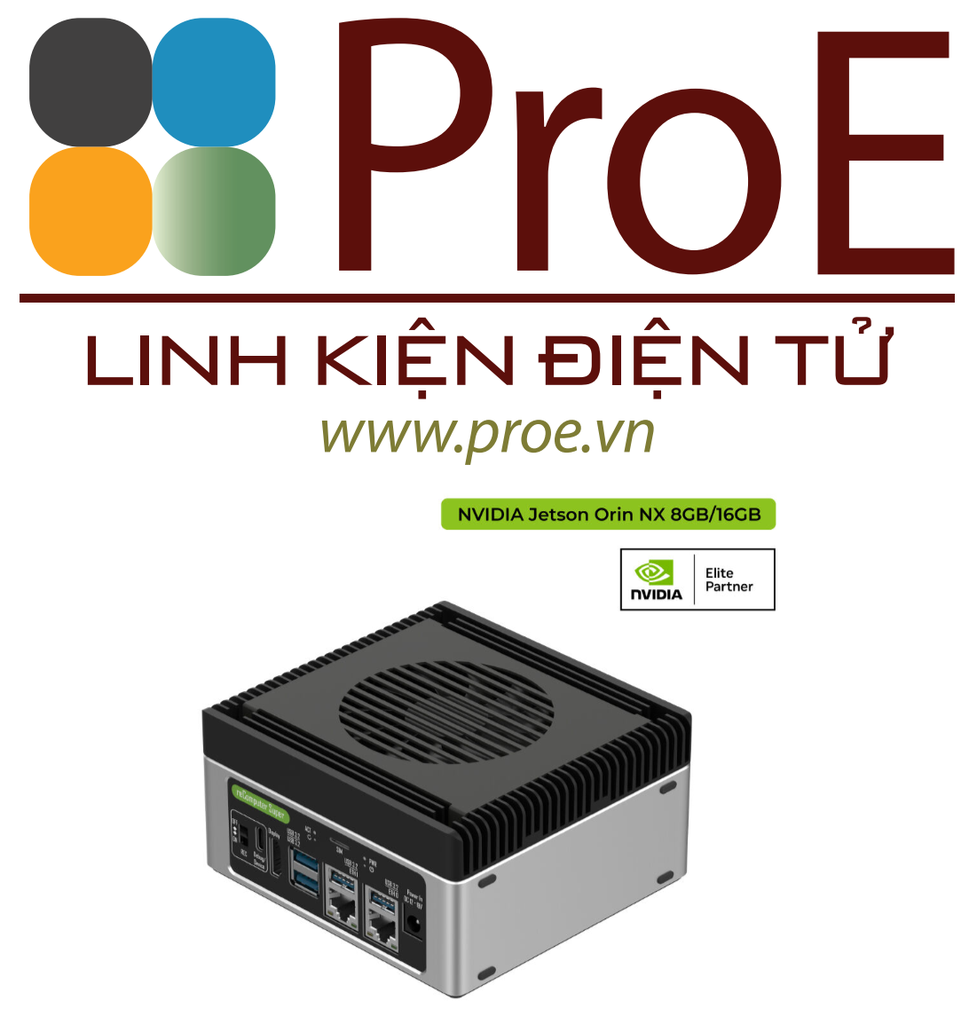

reComputer Super J401
- Mã sản phẩm: reComputer Super J4011
- Nhà sản xuất: Seeed Technology Limited
- Website hỗ trợ: https://www.proe.vn
0₫
Giá thị trường:
Feature
Note:
For Orin Nano module recommends to use 12V power adapter.
For Orin NX module recommends to use 19V power adapter.
- Super Boost AI Performance: Delivers up to 157 TOPS in MAXN Super Mode, ideal for demanding applications like vision AI, robotics, and generative AI.
- Energy-Efficient Operation: Configurable power modes from 10W to 40W allow for optimized performance and energy consumption.
- Robust Thermal Design: Operates reliably in temperatures from -20°C to 60°C at 40W, and up to 65°C at 25W.
- Rich interfaces: features 2xRJ45, SIM card, 4×USB 3.2, HDMI 2.1, and CAN. Also including M.2 Key E/M, Mini-PCIe, 4xCSI for connectivity and cameras.
- Ready for Deployment: Pre-installed with JetPack 6.2 and a 128GB NVMe SSD, supporting AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.
Jetson Modules Performance with Super Mode
- Enhanced power management
- Improved higher frame rate processing
- Reduced inference time
Specification
|
reComputer Super J4011 |
reComputer Super J4012 |
||
|
Applications Processor(AP) |
NVIDIA Orin™ NX 8GB |
NVIDIA Orin™ NX 16GB |
|
|
AI Performance |
Orin NX 8GB – 117 TOPS(MAXN) |
Orin NX 16GB – 157 TOPS(MAXN) |
|
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
||
|
GPU Max Frequency |
1173 MHz |
||
|
CPU |
6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
|
CPU Max Frequency |
2.0 GHz |
||
|
DL Accelerator |
1 x NVDLA v2.0 |
2 x NVDLA v2.0 |
|
|
DL Max Frequency |
1.23 GHz |
||
|
Vision Accelerator |
1 x PVA v2.0 |
||
|
Memory |
8GB 128-bit wide LPDDR5 DRAM 102.4 GB/s |
16GB 128-bit wide LPDDR5 DRAM 102.4GB/s |
|
|
Power |
10W - 15W - 25W - 40W |
10W - 15W - 25W -40W |
|
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
||
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
||
|
CSI camera |
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
||
|
Mechanical |
69.6mm x 45mm 260-pin SO-DIMM connector |
||
|
Carrier Board |
||
|
Storage |
1x M.2 KEY M PCIe (M.2 NVMe 2242 SSD 128G included) |
|
|
Networking |
M.2 KEY E |
1x M.2 Key E for WiFi/Bluetooth module |
|
Mini PCIe |
1x mini-PCIe for LTE 4G module |
|
|
Ethernet |
2x RJ45 Gigabit Ethernet |
|
|
I/O |
USB |
4x USB 3.2 Type-A (5Gbps); 1x USB 2.0 Type-C (Device Mode/Debug); |
|
Camera |
4x mipi CSI(2-lane 15-Pin) |
|
|
CAN |
1 x CAN(4-Pin Header) |
|
|
Display |
1x HDMI 2.1 |
|
|
Fan |
1x 4-Pin 1.25mm Fan Connector (5V PWM) 1x 4-Pin 2.54mm Fan Connector (12V PWM) |
|
|
Extension Port |
1x 40-Pin extension header 1x 12-Pin control and UART header |
|
|
RTC |
1x RTC 2-pin 1x RTC Socket |
|
|
LED |
2x LED(PWR and ACT) |
|
|
Button |
1x PWR 1x RESET |
|
|
Switch |
1x REC |
|
|
Antenna hole |
4x Antenna Hole |
|
|
Power |
12-19V 5525 Barrel DC Jack |
|
|
Jetpack Version |
Jetpack 6.2 |
|
|
Mechanical |

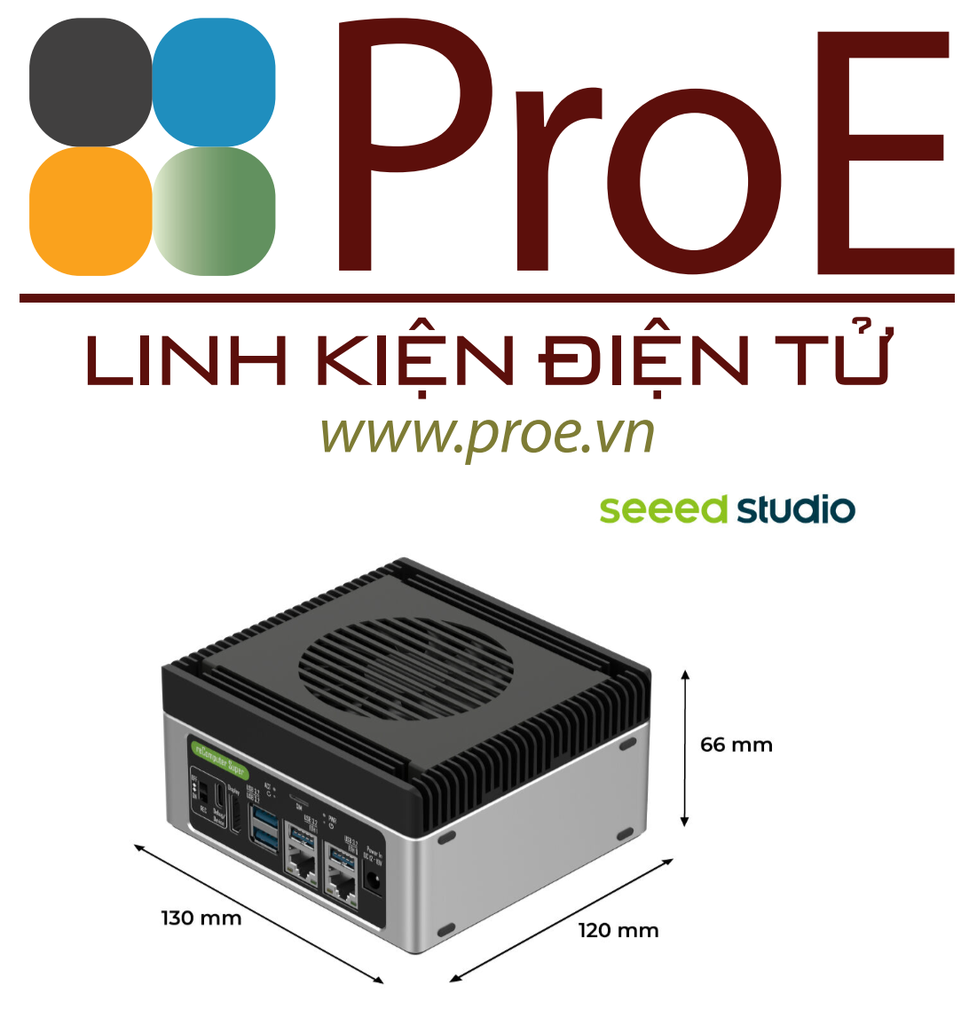

Dimensions (W x D x H) |
130mm x 120mm x 66mm |
|
Weight |
1110g |
|
|
Installation |
Desk, Wall-mounting |
|
|
Operating Temperature |
-20℃~65℃(25W Mode) -20℃~60℃(MAXN Mode) |
|
|
Warranty |
2 Years |
|
|
Certification |
RoHS,REACH,CE,FCC,UKCA, KC |
|

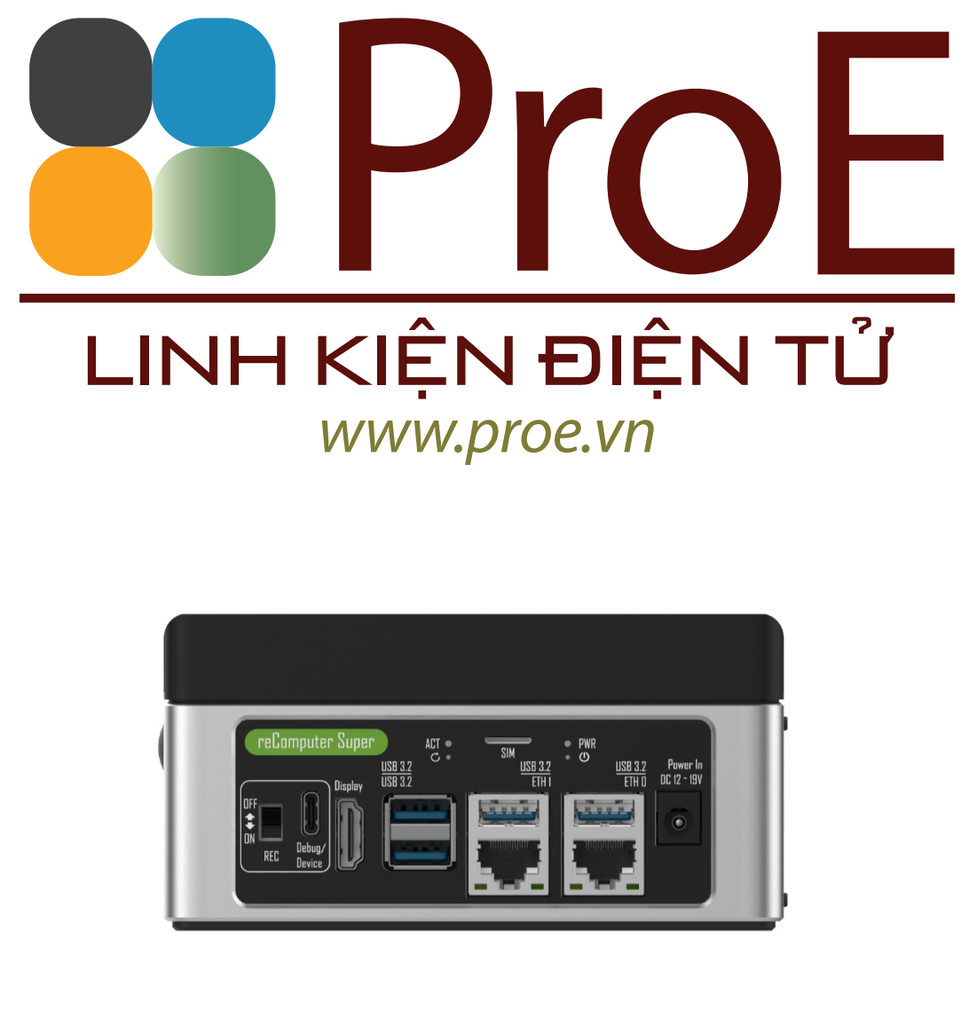

Hardware Overview
