Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-band, GNSS Positioning, comes with EM060K-GL Module
- Mã sản phẩm: EM060K-GL LTE Cat-6 HAT
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
2.800.000₫
Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-Band, GNSS Positioning, Comes With EM060K-GL Module
EM060K-GL LTE Cat-6 HAT
Supports multiple network standards such as LTE-A and UMTS/HSPA(+)
Integrated Multi-Constellation High-Precision Global GNSS Positioning, Supports Cloud Platform Communication And LTE-A Network Access
* for reference only, Raspberry Pi board is NOT included
The EM060K-GL LTE Cat-6 HAT integrates LTE-A Cat 6 communication and GNSS positioning, up to 300Mbps downlink and 50Mbps uplink rate, nearly covers all the mainstream carriers worldwide. It can be connected to a PC, Raspberry Pi or Jetson Nano, etc. to easily enable high-speed LTE-A network, supports cloud platform communication, sending SMS, global GNSS positioning, etc.
Features At A Glance
- Integrated multi-constellation high-precision GNSS positioning: GPS, GLONASS, BDS, Galileo
- Integrates rich network protocols, with multi drivers and software support, compatible with different systems including Windows / Linux / Android
- USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano to enable high-speed LTE-A network
- Standard M.2 B KEY slot, compatible with QUECTEL and SIMCOM series 4G/5G M.2 modules
- Onboard PWR and RST control pins, enabled via DIP switch, for connecting external IO ports to control module power on/off and reset
- Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, stable and flexible, supports more loads
- Onboard power supply switch, reset button and LED indicator, easy to turn on/off the module and monitor the operating status
- Reserved 4x SMA to IPEX antenna connectors, easy to install and change the SMA antenna positions
- High efficiency power supply circuit, up to 3A output current
EM060K-GL Specifications
| LTE CAT 6 | |
|---|---|
| Region / Provider | Global |
| Dimensions | 42.0 × 30.0 × 2.3 (mm) |
| TEMPERATURE RANGE | |
| Operating temperature | -30 °C ~ +70 °C |
| Extension temperature | -40 °C ~ +85 °C |
| FREQUENCY BAND | |
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 (B29/B32 support RX only, and are only for secondary component carrier) |
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B46 (LAA), B48 (CBRS) (B46 supports RX only, and are only for secondary component carrier) |
| 2xCA | Intra-band, Inter-band |
| WCDMA | B1, B2, B3, B4, B5, B6, B8, B19 |
| GNSS | GPS/GLONASS/BDS/Galileo |
| DATA RATE | |
| LTE-FDD | 300Mbps (DL) / 50Mbps (UL) |
| DC-HSPA+ | 42Mbps (DL) / 5.76Mbps (UL) |
| WCDMA | 384kbps (DL) / 384kbps (UL) |
Designed For IoT/M2M Applications
Supports Multiple Network Standards Such As LTE-A And UMTS/HSPA(+)
Nearly Covers All The Mainstream Carriers Worldwide
Multi System Support, Easy To Use
Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...Just Plug It Into USB Port, Go Through Some Simple Configuration, The High-Speed LTE-A Network Connection Will Be Ready To Use
Connection Examples
For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

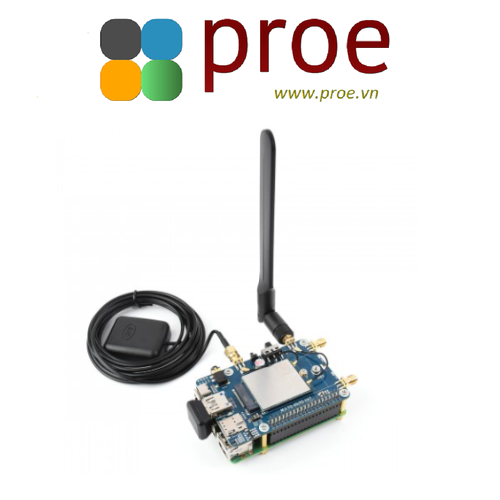

Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 3B+
Connecting with CM4 baseboard
Support GNSS Positioning
Supports GPS, GLONASS, BDS, Galileo And Base Station Positioning
Standard Raspberry Pi 40PIN GPIO Header
Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs
for reference only, please check the Package Content for the detailed part list
M.2 B KEY Slot
Compatible With EM06-E And EM060K-GL Series Modules
| LTE CAT 6 | EM06-E | EM060K-GL |
|---|---|---|
| Region / Provider | EMEA/APAC①/Brazil | Global |
| Operating temperature | -30 °C ~ +70 °C | |
| Extension temperature | -40 °C ~ +85 °C | |
| Dimensions | 42.0 × 30.0 × 2.3 (mm) | |
| Power supply | 3.135~4.4 V, typical 3.7 V | |
| Power consumption | 50 μA @ shutdown 4.1 mA @ hibernate, typical 22.1mA @ idle |
62 μA @ shutdown 2.71 mA @ hibernate, typical 16.57mA @ idle |
| FREQUENCY BAND | ||
| LTE-FDD | B1, B3, B5, B7, B8, B20, B28, B32② | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29③, B30, B32③, B66, B71 |
| LTE-TDD | B38, B40, B41 | B34, B38, B39, B40, B41, B42, B43, B46③ (LAA), B48 (CBRS) |
| 2xCA | B1+B1, B5, B8, B20, B28; B3+B3, B5, B7, B8, B20, B28; B7+B5, B7, B8, B20, B28; B20+B32②; B38+B38; B40+B40; B41+B41 |
Intra-band, Inter-band |
| WCDMA | B1, B3, B5, B8 | B1, B2, B3, B4, B5, B6, B8, B19 |
| GNSS | GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS(optional) | GPS/GLONASS/BDS/Galileo |
| DATA RATE | ||
| LTE-FDD | 300Mbps (DL); 50Mbps (UL) | 300Mbps (DL); 50Mbps (UL) |
| LTE-TDD | 226Mbps (DL); 28Mbps (UL) | |
| DC-HSPA+ | 42Mbps (DL); 5.76Mbps (UL) | |
| WCDMA | 384kbps (DL); 384kbps (UL) | |
| Note | ① Japan and CMCC are NOT included. ② For EM06-E, B32 is only used for receiving in LTE-FDD, and is only for secondary component carrier in 2×CA. ③ For EM060K-GL, LTE-FDD B29/B32 and LTE-TDD B46 are used for receiving only, and are only for secondary component carrier. |
|

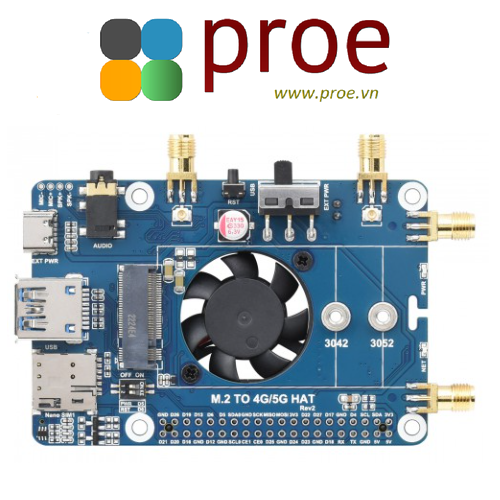

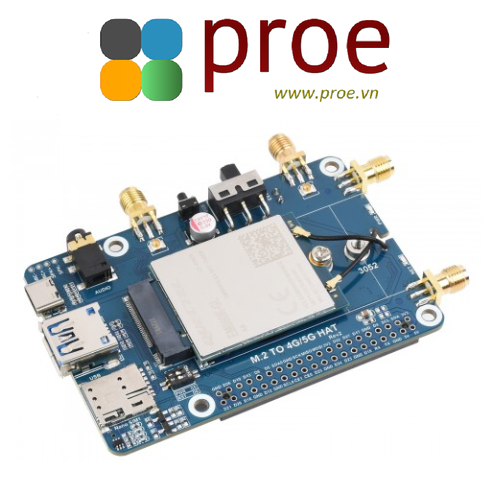

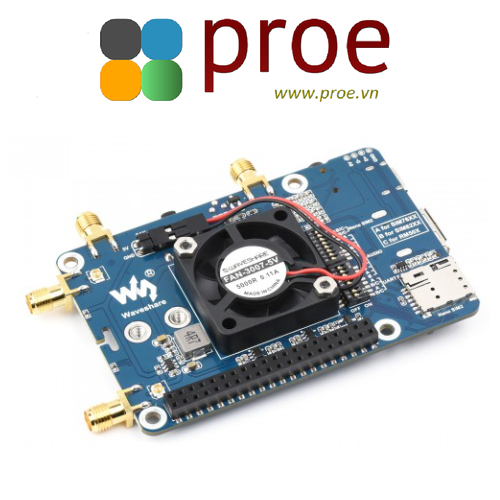

What's On Board
- Raspberry Pi GPIO header
for connecting with Raspberry Pi - DIP switches
Enables the power control and reset pins - M.2 slot
Compatible with most SIMCom and QUECTEL 4G/5G modules in M.2 form factor - SIM card slot 1
one of the 2x SIM card slots, dual card single standby - USB3.1 port
USB 2.0 compatible, for connecting with different hosts - USB Type-C port
5V 3A input, stable and flexible power supply - Audio jack
SIM7600X/SIM8XXX series supports audio function, but RM5XX/EM06XX series temporarily does not support this function
- Antenna connector
Supports quad antennas - Reset button
- Power supply switch
Switch the power supply mode:
When set to USB, the module is powered via the "5. USB3.1 port"
When set to EXT PWR, the module is powered by the external power supply via the "6. USB Type-C port" - Cooling fan
Better heat dissipation for both Raspberry Pi and HAT module - Indicator
Easy to monitor the operating status of module
- Cooling fan
Better heat dissipation for both Raspberry Pi and HAT module - SIM card slot 2
Switchable via AT command - Module settings switch
Switch A to ON for SIM7600X/A7906X/SIM7906X/SIM7912X series 4G M.2 modules;
Switch B to ON for SIM8202X/SIM8200EA/SIM8262X series 5G M.2 modules;
Switch C to ON for RM50X/RM520N-GL/EM06X series 5G/LTE-A M.2 modules
- USB 2.0 interface pads
- NAU8810X Audio Chip
For SIM7600X/SIM8XXX series modules, RM5XX and EM06XX series modules temporarily does not support this function - Fan Header
5V cooling fan power supply
Application Examples
LTE-A Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a LTE-A wireless router, providing WiFi hotspot for smartphones to easily access the LTE-A Network.
LTE-A Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.
More Possibilities
Outline Dimensions
