PiTray Clip Din Rail Mount (Compatible for Raspberry Pi and NVIDIA Jetson Nano)

INTRODUCTION

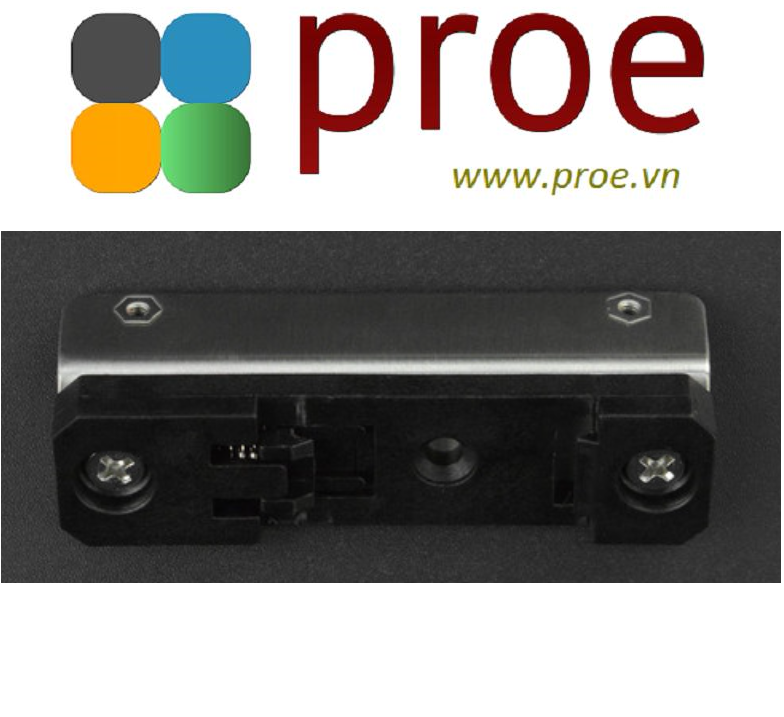

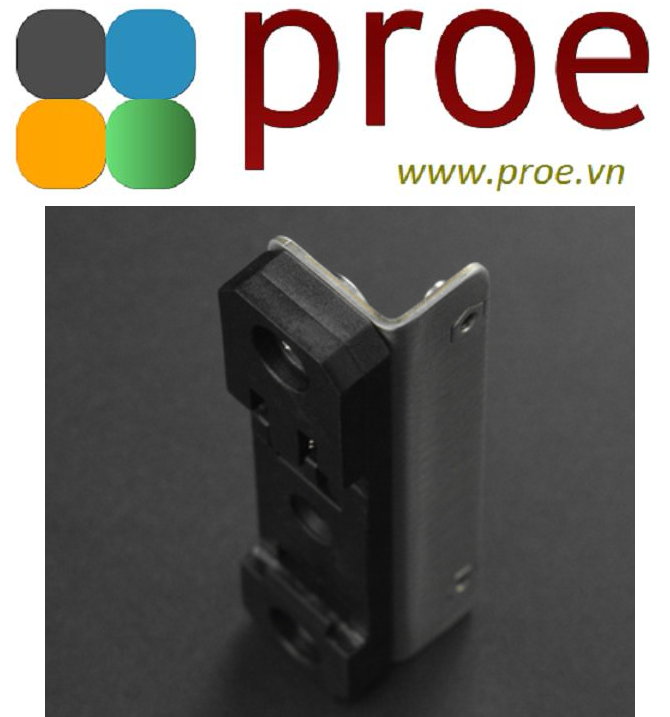

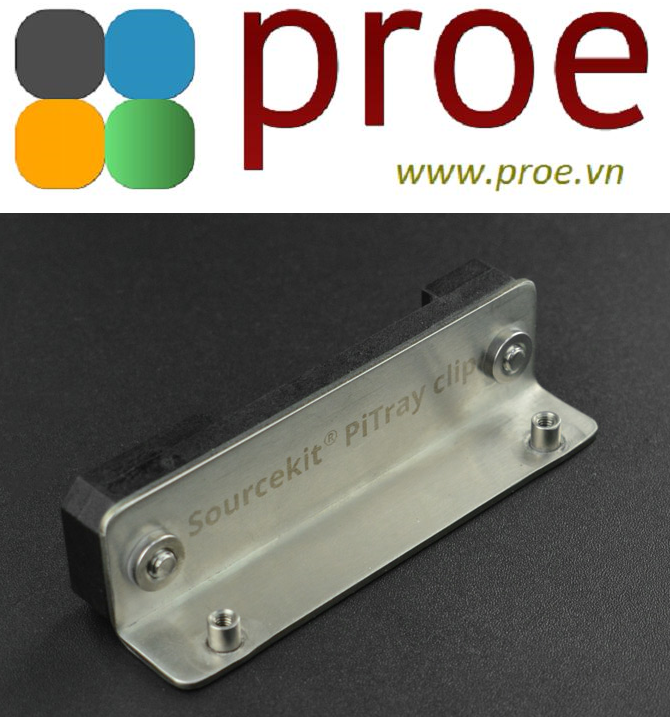

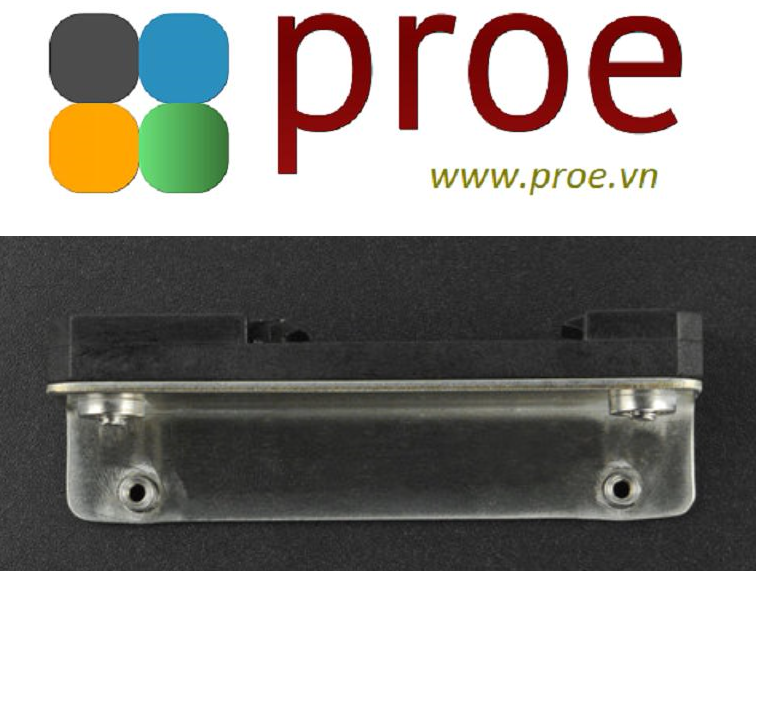

PiTray clip is a Din Rail mounter for Single Board Computers like Raspberry Pi. Assembled of a 304 Stainless Steel blended plate and nylon clip with spring, it provides a simple, quick, strong, and durable Din Rail installation solution suitable for industrial setup, home automation application as well as cluster building.

PiTray clip compatible for Raspberry Pi 4B/3A+/3B+/3B/2B/1B+/1A/Zero W/Zero, NVIDIA Jetson Xavier NX Developer KIT/Jetson Nano Developer Kit/Jetson Nano 2GB Developer Kit , PINE64 Rock64/PINE H64 Model B , Hardkernel ODROID C4/C2/C1+ , ASUS Tinker Board 2S/2/T/S , Coral Dev Board , Sourcekit PiTray mini.

Instructions

1.Mount PCB on PiTray clip with the 2 screws attached

2.Mount the lower jaw to the Din rail

3.Push up to compress the clip spring to make room for the upper jaw

4.While holding the up pushing, let the upper jaw mount the Din rail

5.Release the clip spring, so PiTray clip is solid mounted on the Din rail

FEATURES

• Compatible with IEC/EN 60715 Din Rails
• 304 Stainless Steel PCB Rack with the thickness of 1.5 mm
• Nylon (PA66 30GF) Clip with Spring, easy to mount and unmount
• Include 2 pcs of 304 Stainless Steel M2.5x4 blots to fasten PCB
• Brushed Polished Finish and free of rough edges
• Work for:
•             Raspberry Pi 4B/3A+/3B+/3B/2B/1B+/1A/Zero W/Zero
              NVIDIA Jetson Xavier NX Developer KIT/Jetson Nano Developer Kit/Jetson Nano 2GB Developer Kit
              PINE64 Rock64/PINE H64 Model B
              Hardkernel ODROID C4/C2/C1+
              ASUS Tinker Board 2S/2/T/S
              Coral Dev Board
              Sourcekit PiTray mini

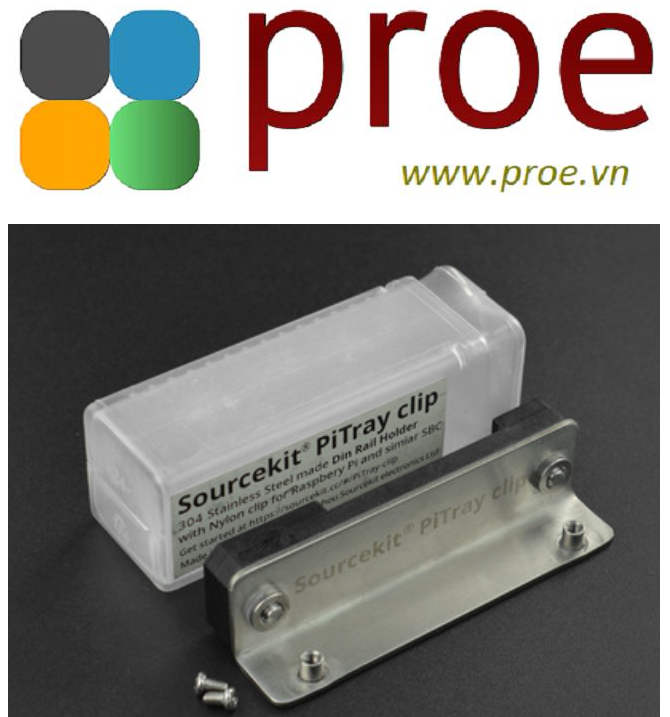

SHIPPING LIST

• PiTray Clip ×1
• Screws Attached ×1
