Pico-CAN-B

PACKAGE CONTENT

Weight: 0.011 kg

1. Pico-CAN-B x1

1

CAN Bus Module (B) For Raspberry Pi Pico, Enabling Long Range Communication Through SPI

CAN Bus Module (B) For Pico

Enabling Reliable Long Range Communication For Raspberry Pi Pico With Other Devices

Comes with online development resources and manual

Features At A Glance

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
• Features CAN function, adopts SPI interface CAN controller MCP2515 with transceiver SIT65HVD230DR
• Comes with online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

* Raspberry Pi Pico is NOT included.

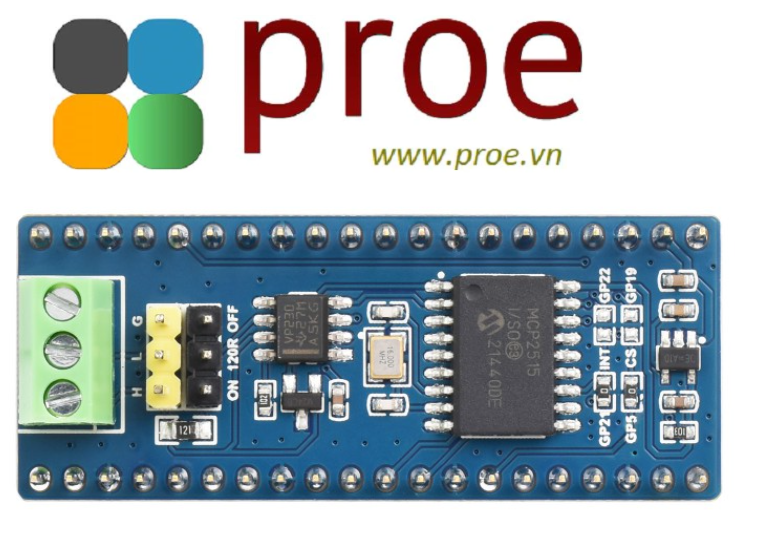

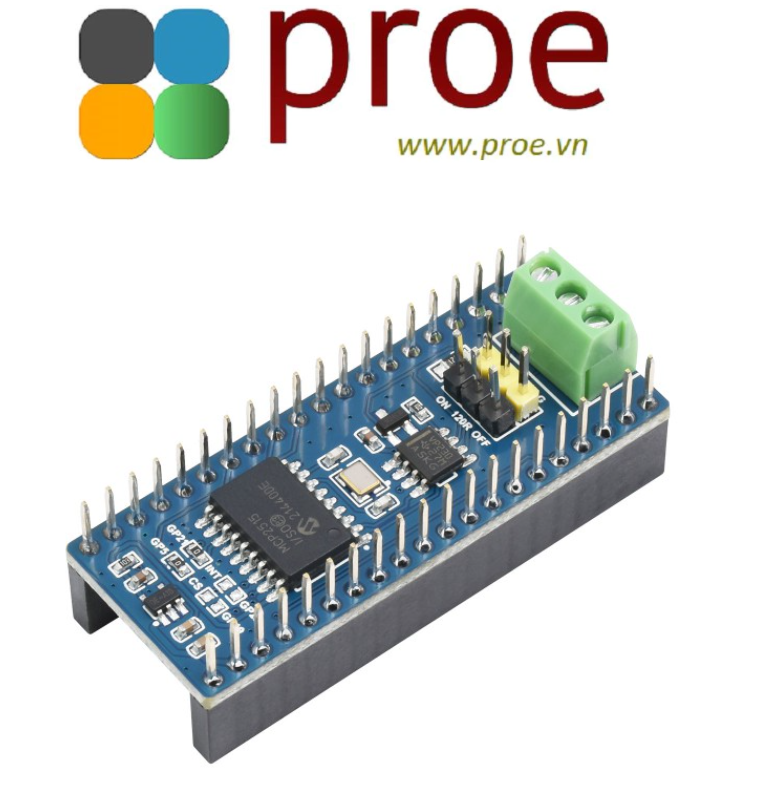

What's On Board

1. RT9013-33GB
   500mA low dropout, low noise, ultra-fast LDO
2. MCP2515
   Second generation standalone CAN controller
3. SIT65HVD230DR
   3.3V CAN transceiver

4. Terminal resistor selection
   ON: connected to 120R matching resistor
   OFF: disconnected from 120R matching resistor
5. CAN bus terminal

Pinout Definition

Product Show

Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/Pico-CAN-B
