RP2040 Microcontroller Camera Development Board, Onboard HM01B0 Grayscale Camera And 1.14inch IPS LCD Display

Wiki: www.waveshare.com/wiki/PICO-Cam-A

PACKAGE CONTENT

Weight: 0.006 kg

PICO-Cam-A x1

DESCRIPTION

RP2040 Microcontroller Camera Development Board, Onboard HM01B0 Grayscale Camera And 1.14inch IPS LCD Display, Suitable For Applications Such As Image Information Capture

RP2040 Camera Development Board

Based on Raspberry Pi RP2040

Features

PICO-CAM-A is a cost-effective, high-performance MCU camera board based on Raspberry Pi RP2040, onboard HM01B0 grayscale camera and 1.14inch IPS LCD display, suitable for application scenarios such as image information capture.

Key features include:

•    • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
•    • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 16MB of onboard Flash memory
•    • Type-C connector, keeps it up to date, easier to use
•    • Onboard HM01B0 grayscale camera
•    • Onboard 1.14inch IPS LCD display, 240×135 resolution, 65K color
•    • USB 1.1 with device and host support
•    • Low-power sleep and dormant modes
•    • Drag-and-drop programming using mass storage over USB
•    • 13 × multi-function GPIO pins
•    • Accurate clock and timer on-chip
•    • Temperature sensor
•    • Accelerated floating-point libraries on-chip
•    • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Supports C/C++

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Onboard Camera

Adopts HM01B0 Grayscale Camera, Suitable For Applications Such As Image Information Capture

Application Example

Captures Greyscale Image Information Via Onboard Greyscale Camera

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

18 × GPIO Pins

Includes 13 × Multi-Function GPIO Pins, Configurable For Pin Function, Allowing Flexible Development And Integration

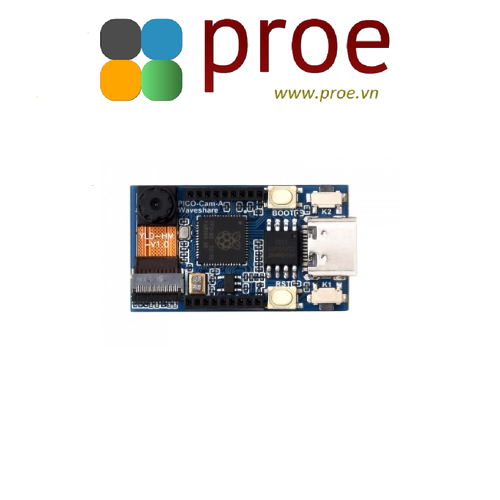

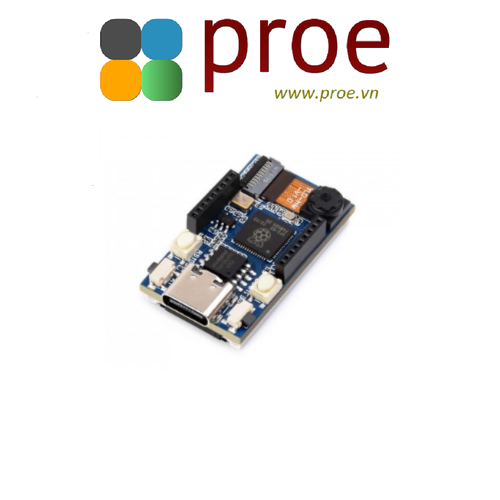

What's On Board

1. USB Type-C connector
2. User button
3. BOOT button
   Press it when resetting to enter download mode
4. RESET button
5. GPIO pins

6. RP2040
   dual-core processor, up to 133MHz operating frequency
7. HM01B0 greyscale camera
8. W25Q128
   16MB NOR-Flash
9. 1.14inch LCD
   240×135 pixels, 65K Color
